>> E << CIRCLIP Installation

CAUTION: Insert the circlip to the rack stopper hole while turning the rack stopper clockwise.

Insert the circlip to the rack stopper hole through cylinder hole. Turn the rack stopper clockwise and insert the circlip firmly.

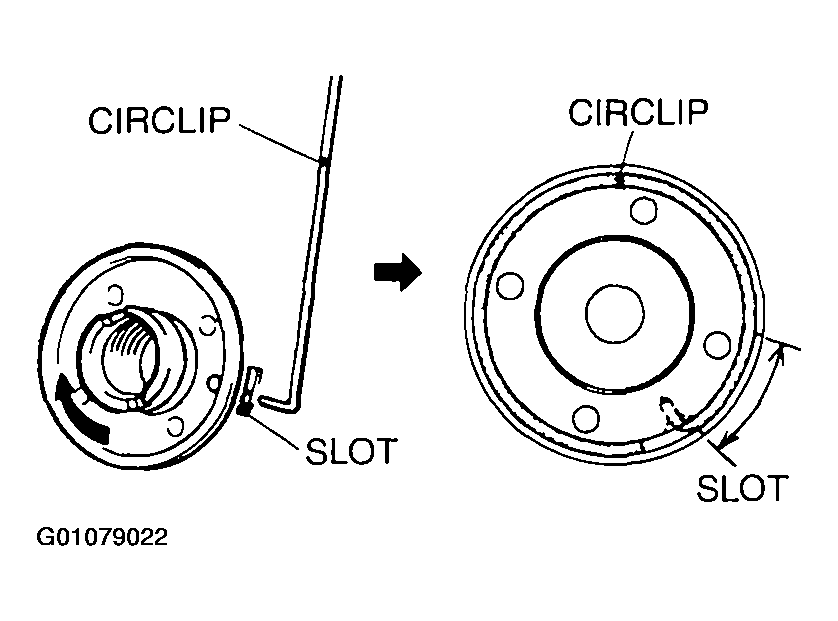

Fig 1: Installing Circlip
G01079022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
