Side Impact Sensors: Notes
WARNING: This page is about a different variant/trim than selected.
- If the side impact sensor is not installed securely and correctly, the side-airbag may not operate normally.
- If a dent, crack, deformation or rust is detected, replace with a new sensor.
- Check the side impact sensor and bracket for dents, cracks or deformation. The side impact sensors are located inside the center pillars (LH/RH).
- Check the connector for damage, and terminal for deformation.

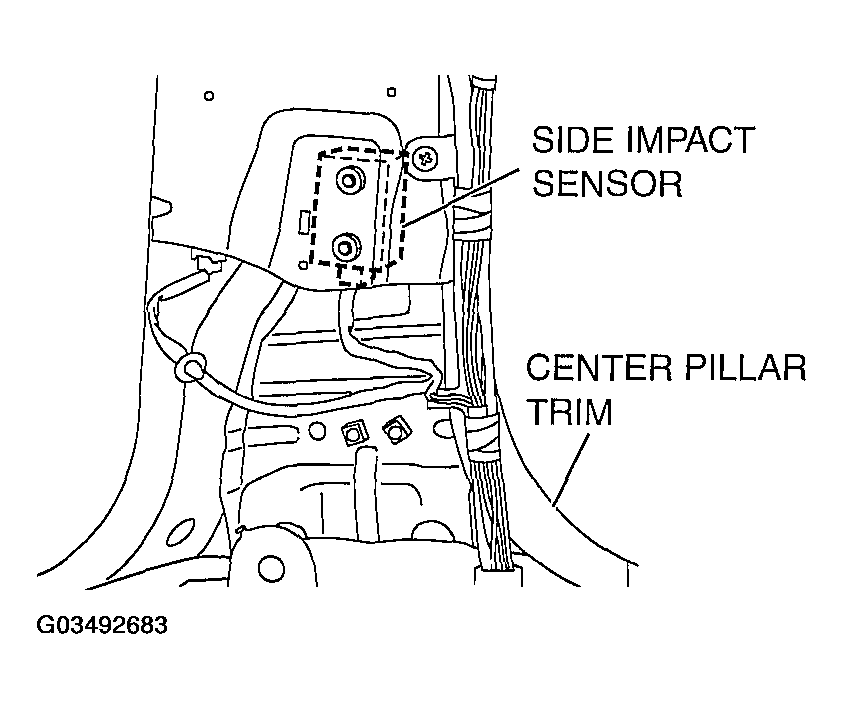

- Check that there is no bending or corrosion in the center pillars (LH/RH).NOTE: The illustration at left shows the left side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
