Inspection Procedure 5: Engine Coolant Temperature Gauge Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.

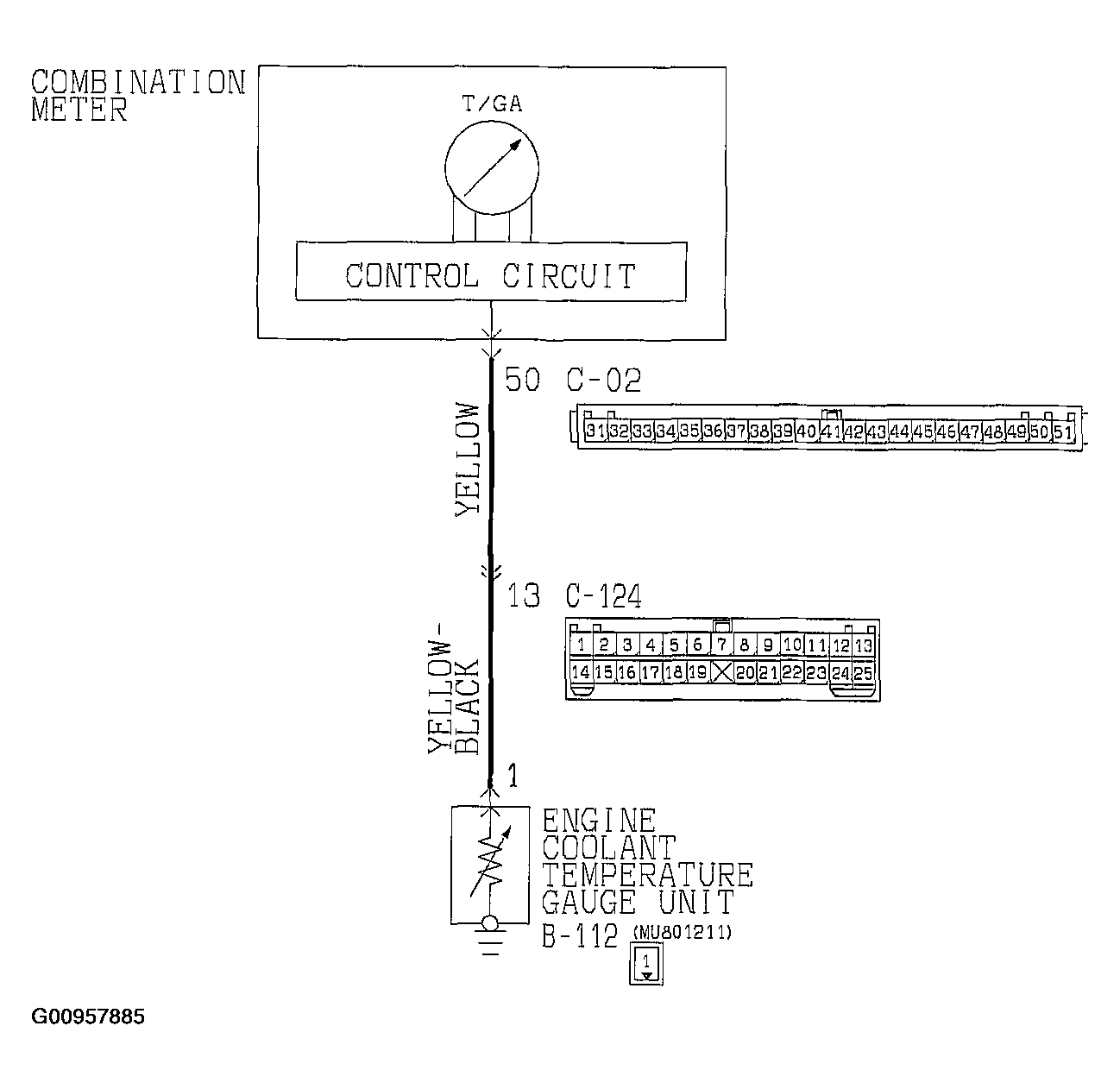

Fig 1: View Of Engine Coolant Temperature Gauge Circuit
G00957885Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

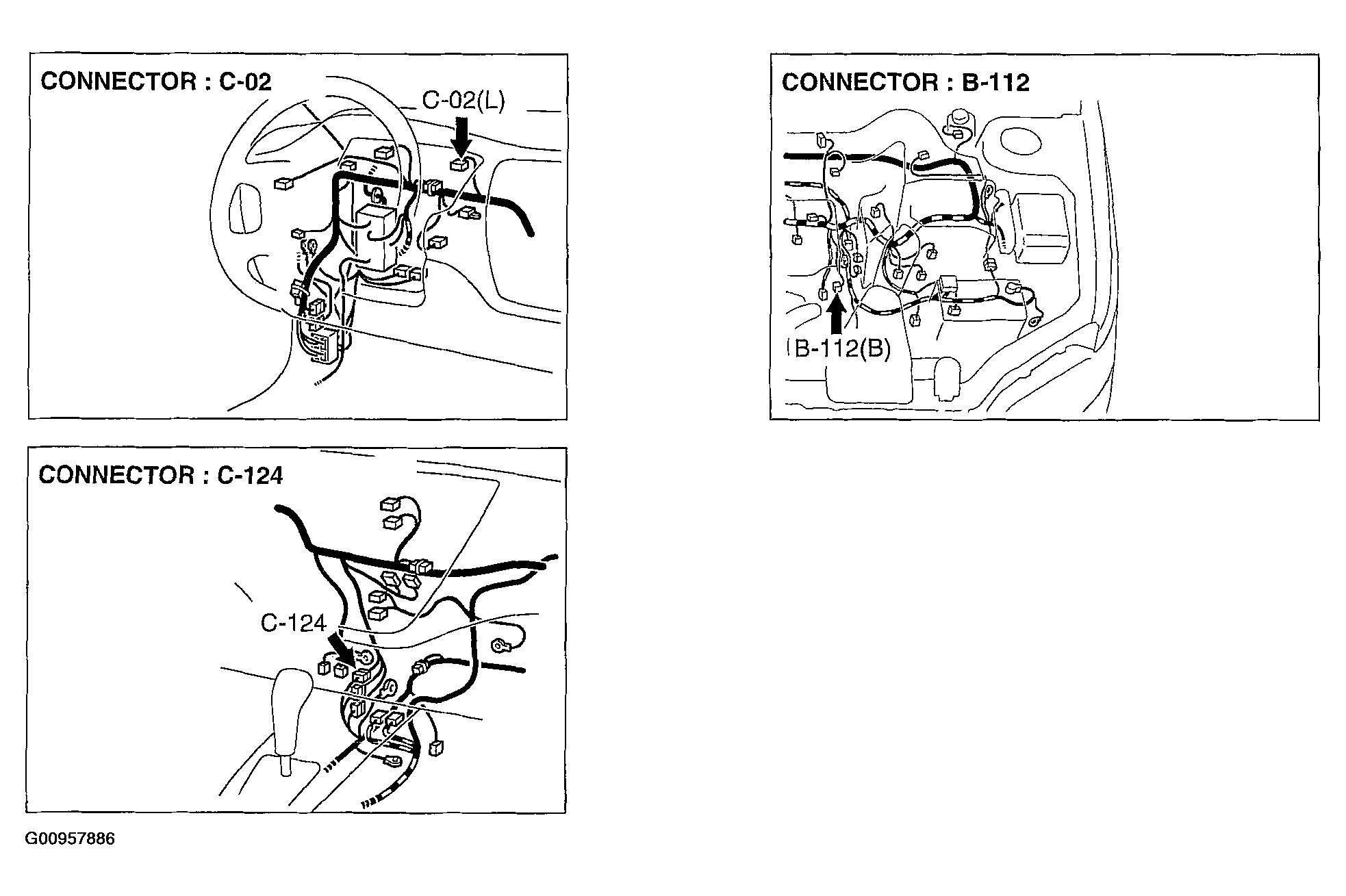

Fig 2: Identifying Connectors
G00957886Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
