Inspection Procedure 3: Tachometer Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.

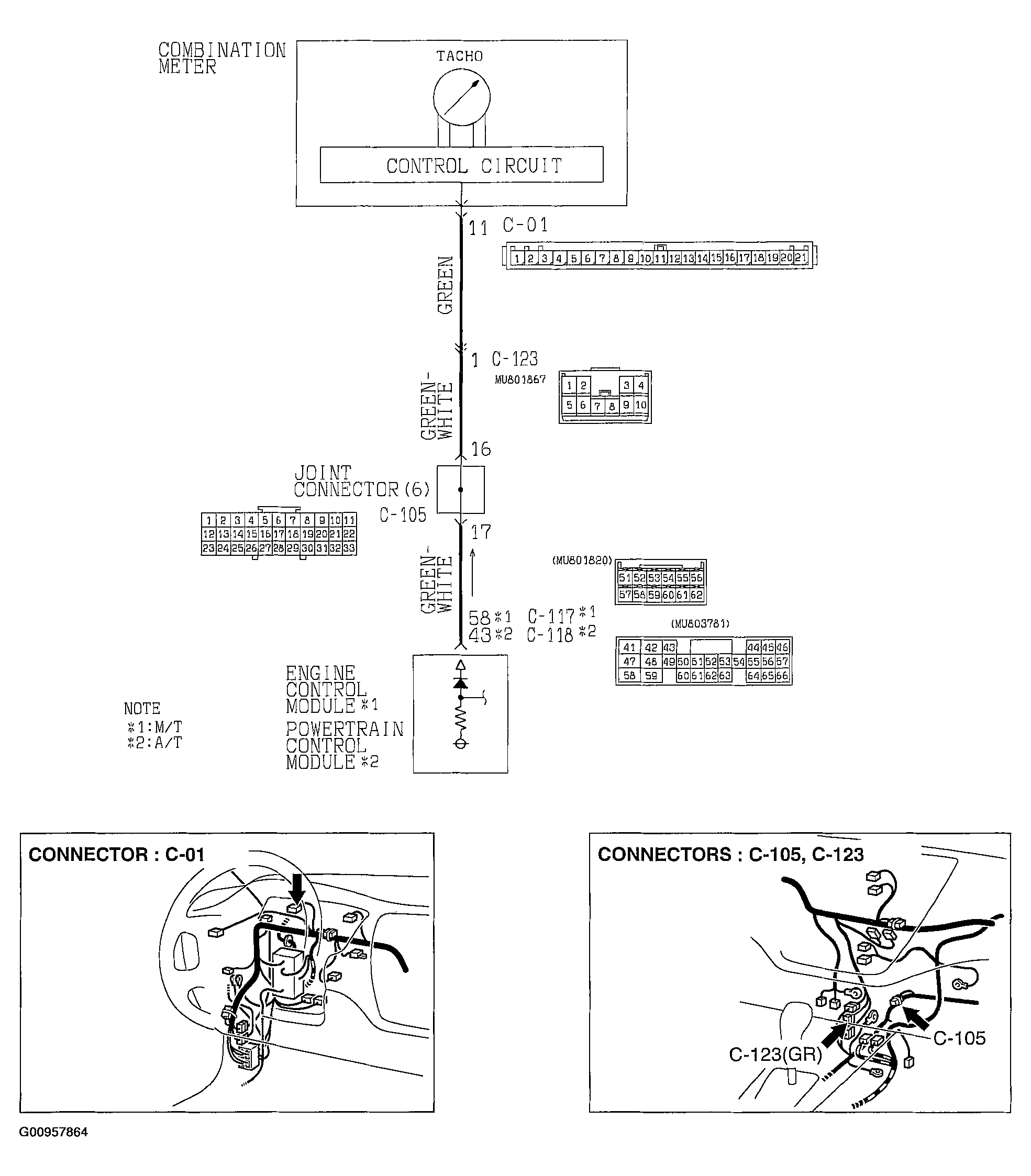

Fig 1: View Of Tachometer Circuit
G00957864Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

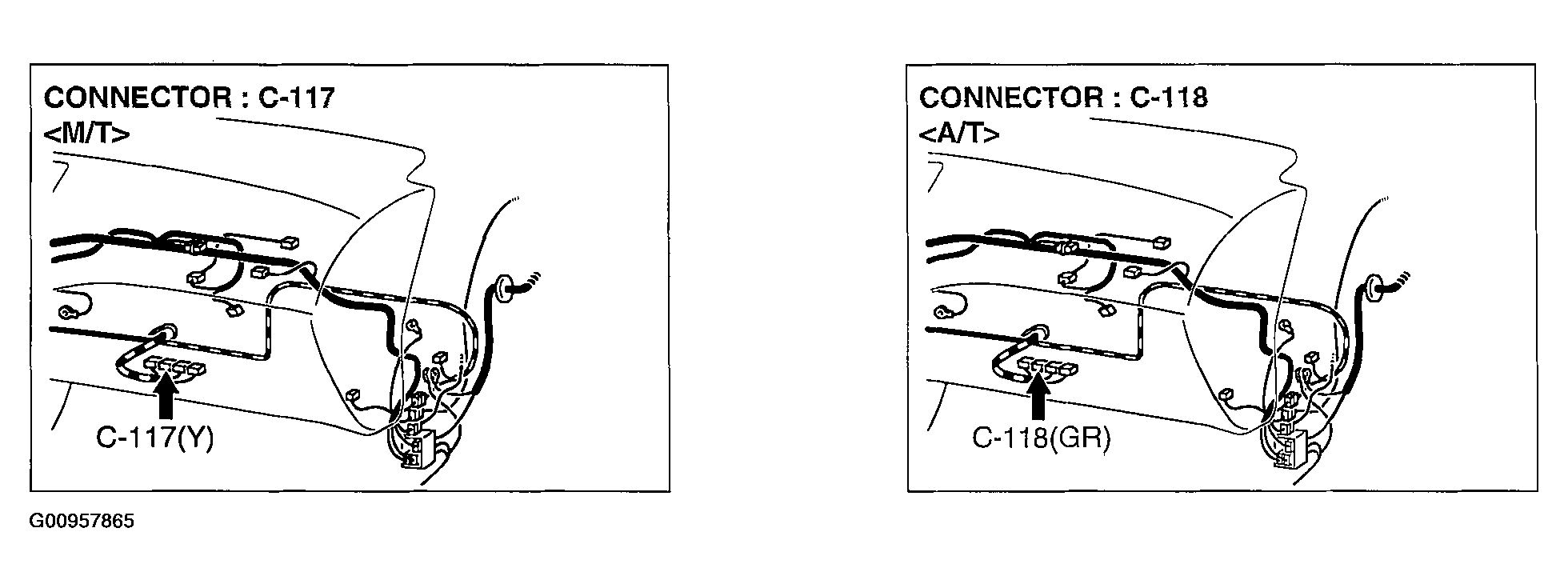

Fig 2: Identifying Connectors
G00957865Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
