Inspection Procedure 2: Speedometer Does Not Work. < M/T >
>>
Notes
Inspection Procedure 2: Speedometer Does Not Work. < M/T >: Notes
WARNING:
This page is about a different variant/trim than selected.

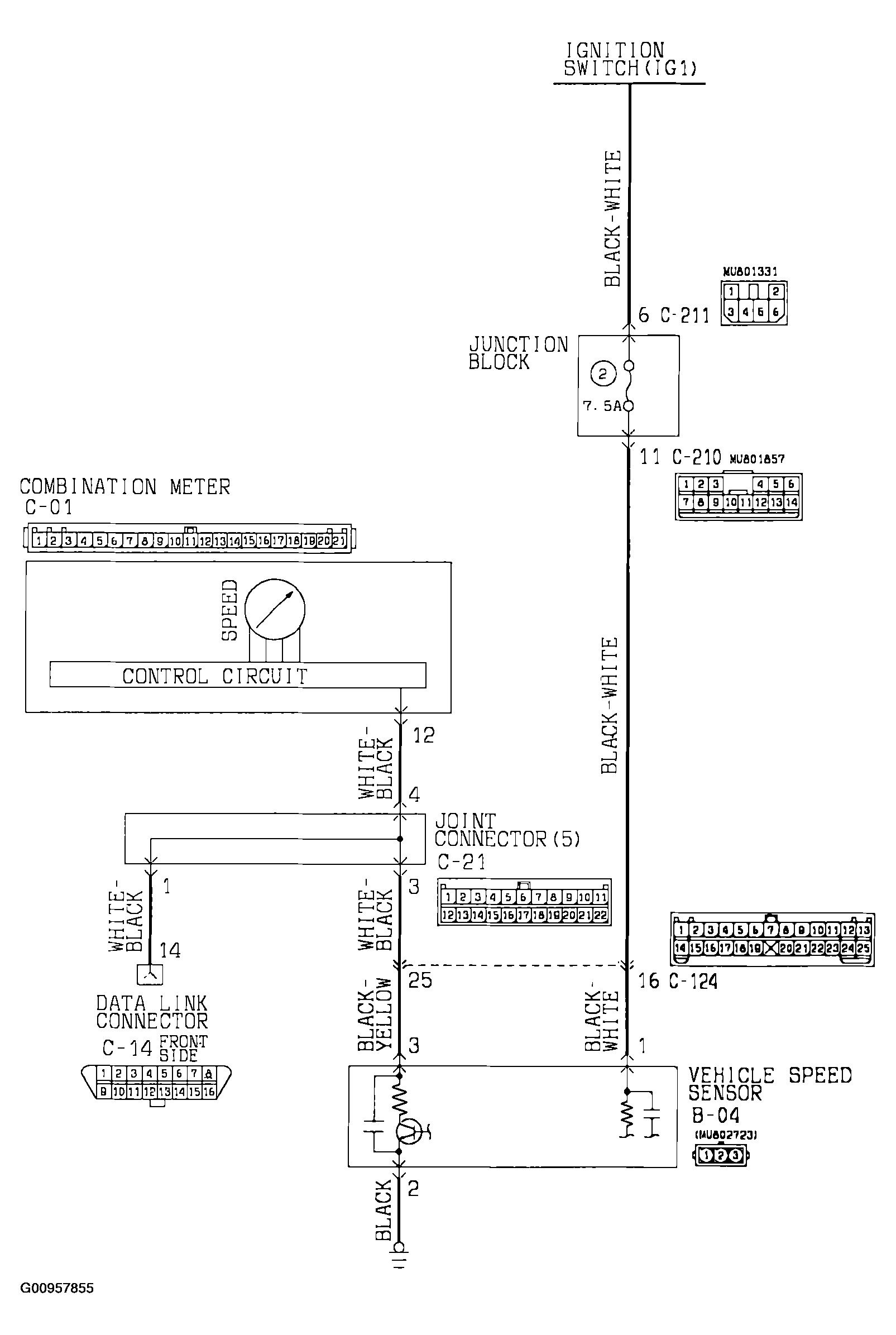

Fig 1: View Of Speedometer Circuit - M/T
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

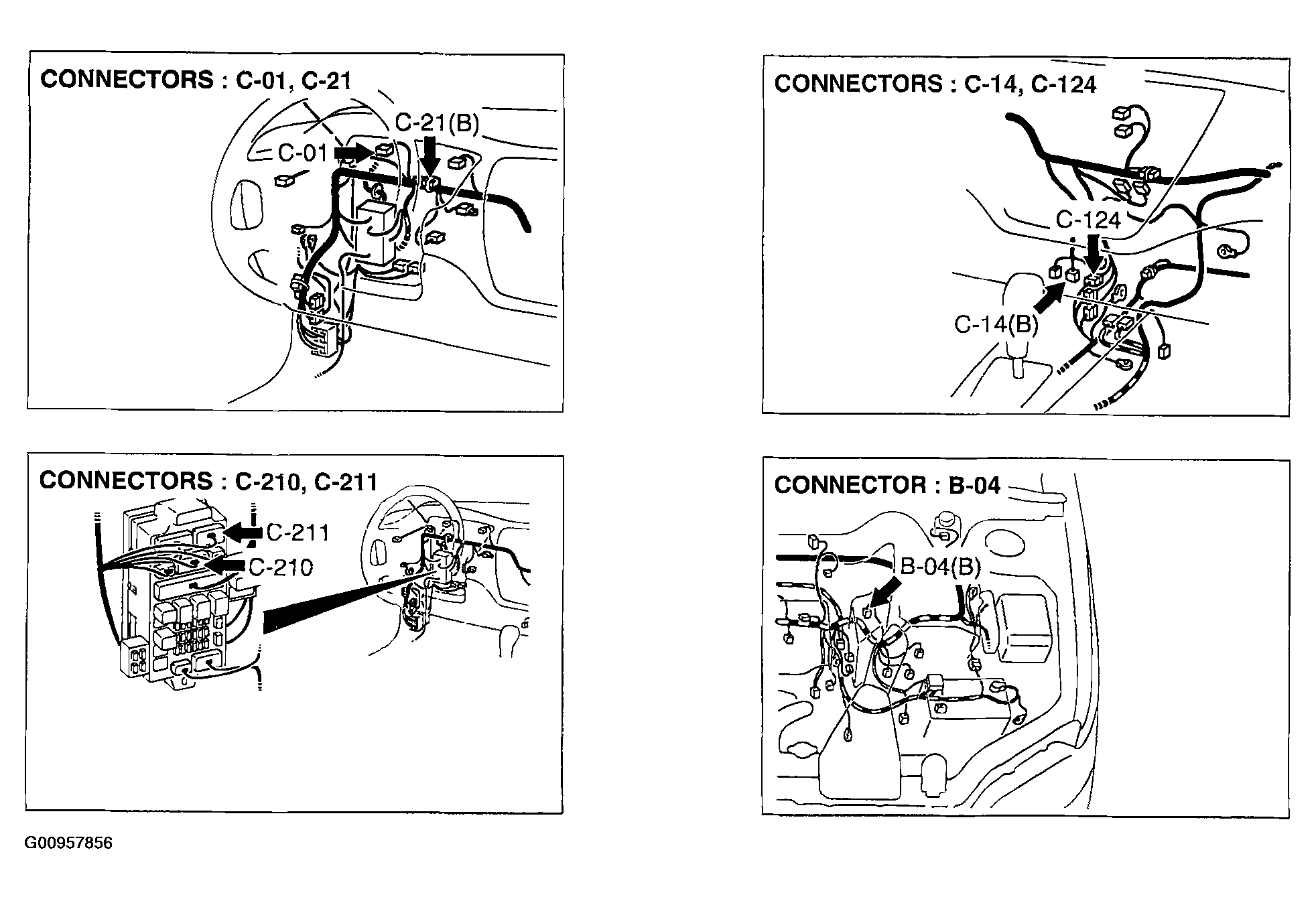

Fig 2: Identifying Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
