Removal And Installation

WARNING: This page is about a different variant/trim than selected.

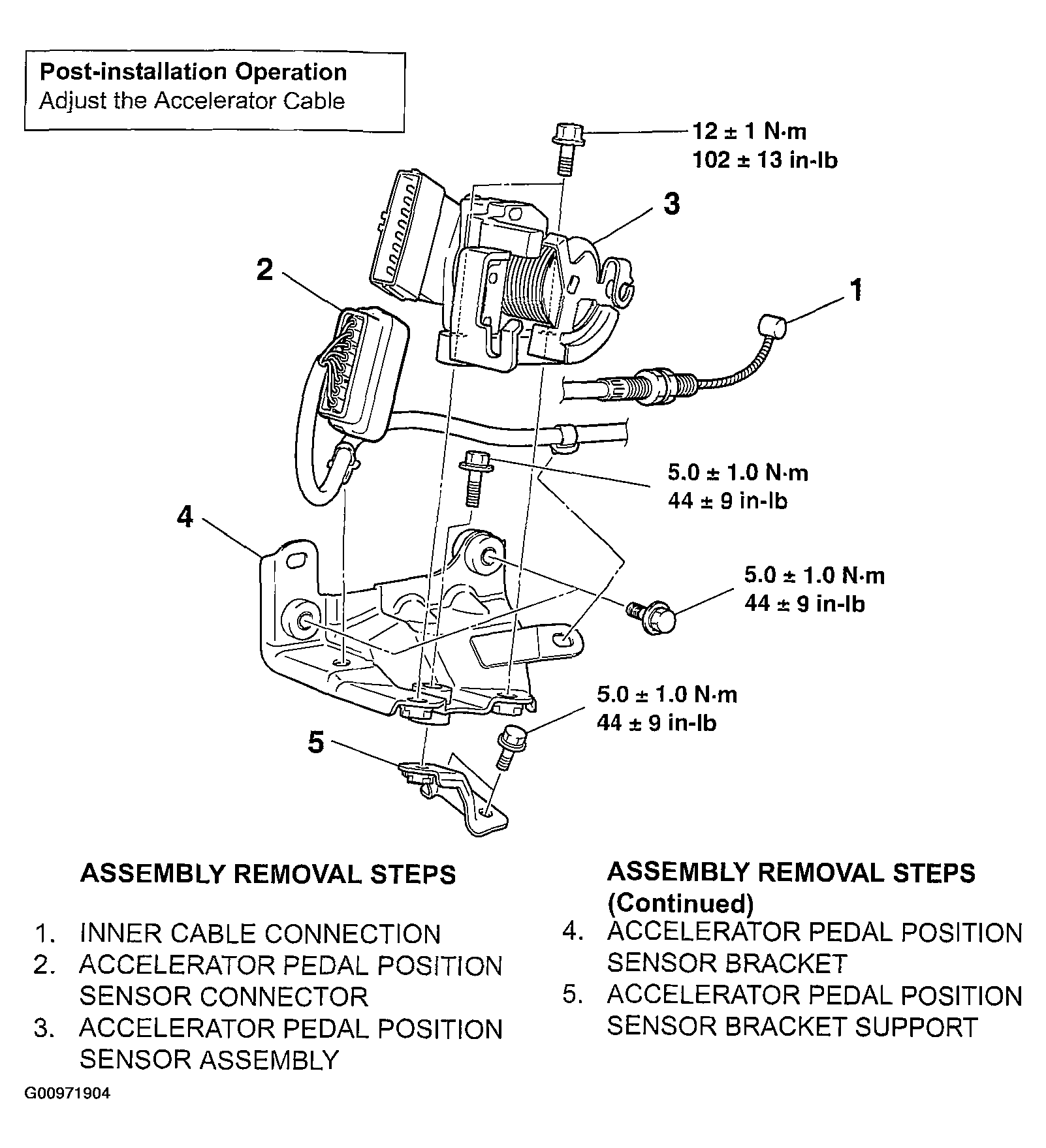

Fig 1: Removing And Installing Accelerator Pedal Position Sensor
G00971904Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
