Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

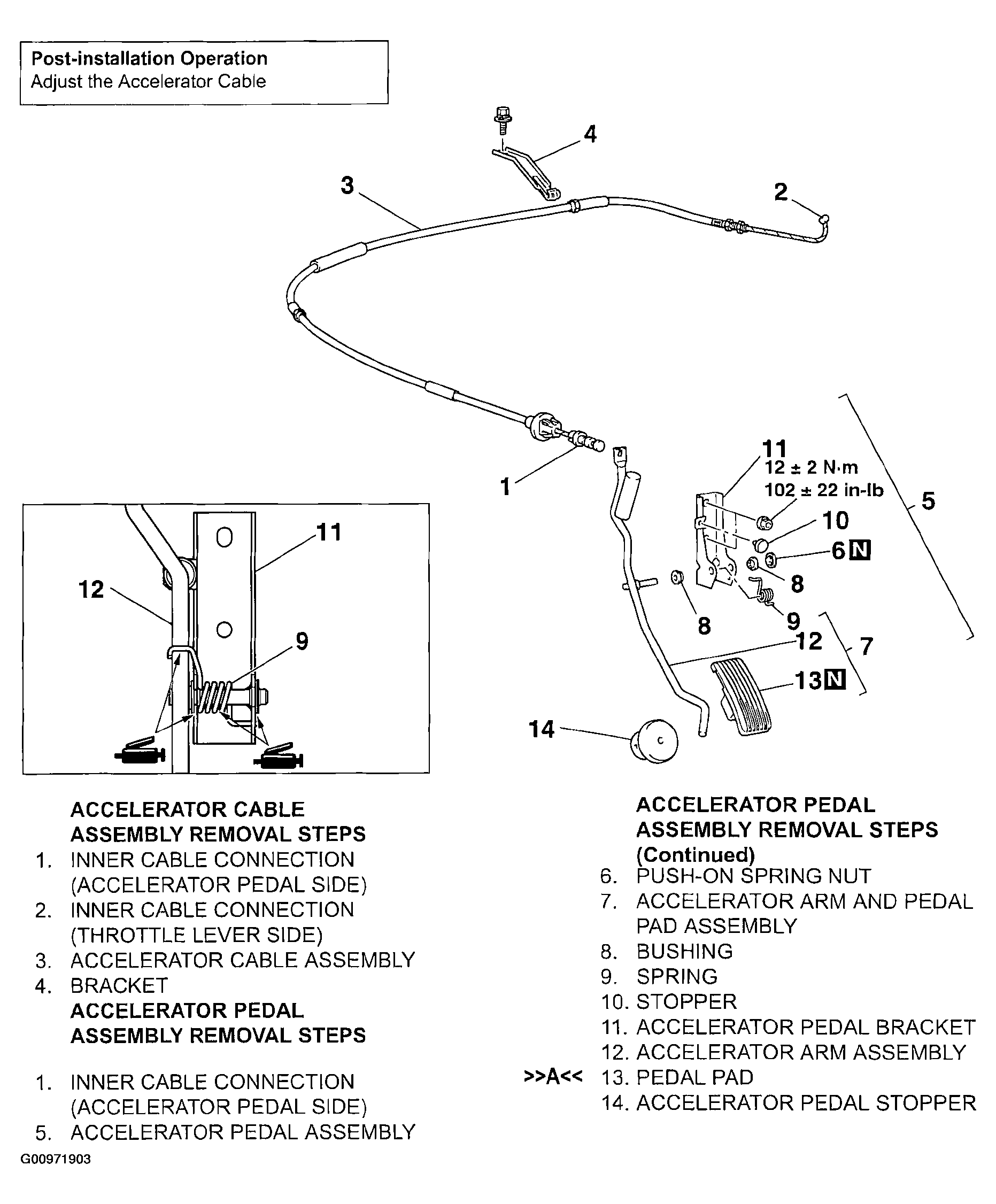

Fig 1: Removing And Installing Accelerator Cable And Pedal
G00971903Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
