Transmitter Input Circuit

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

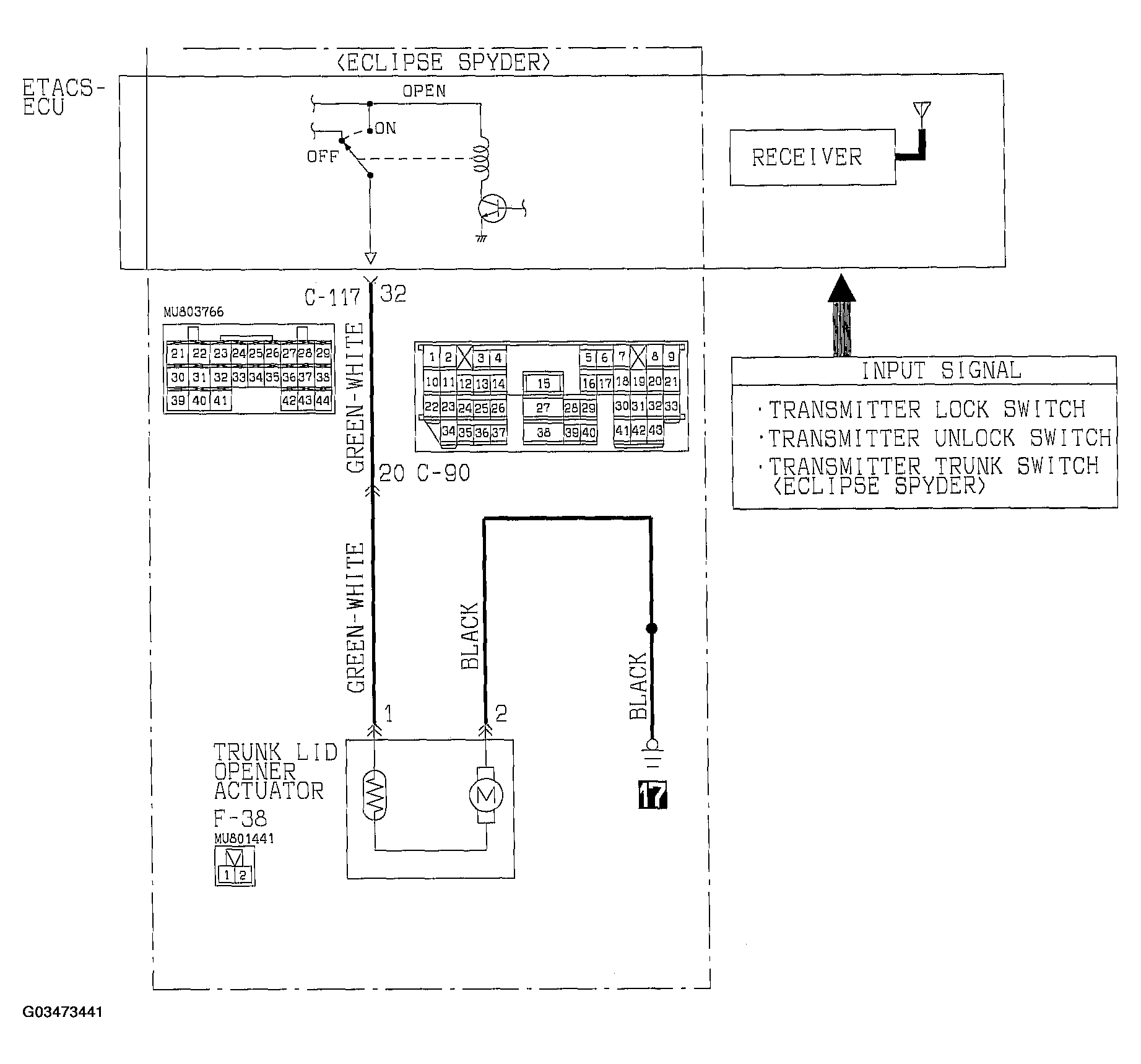

Fig 1: View Of Transmitter Input Circuit Diagram
G03473441Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
