Ignition Switch Continuity Check

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ignition switch connector C-308 without removing the ignition switch and steering lock cylinder. Then check the continuity.

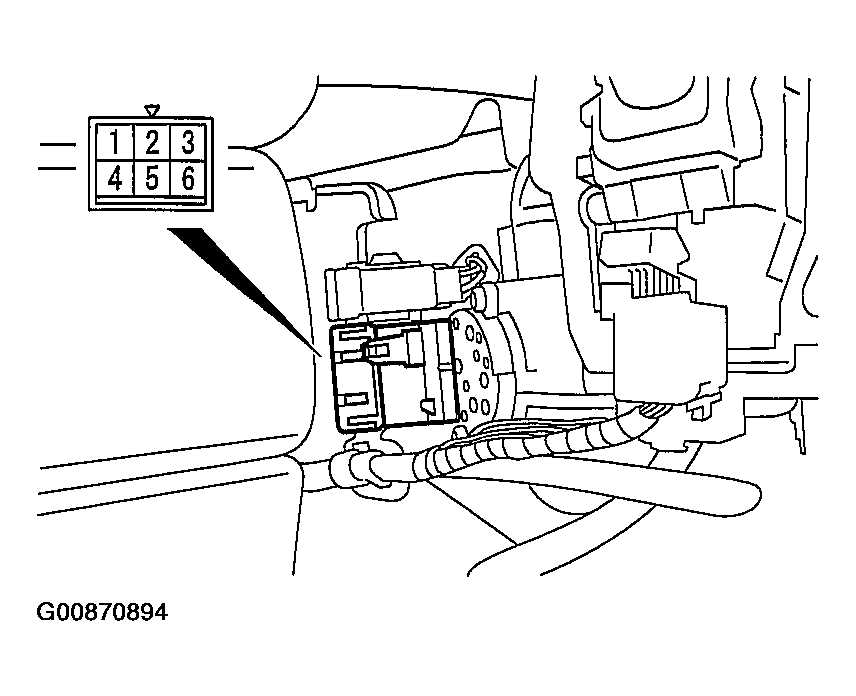

Fig 1: Identifying Ignition Switch Terminal
G00870894Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

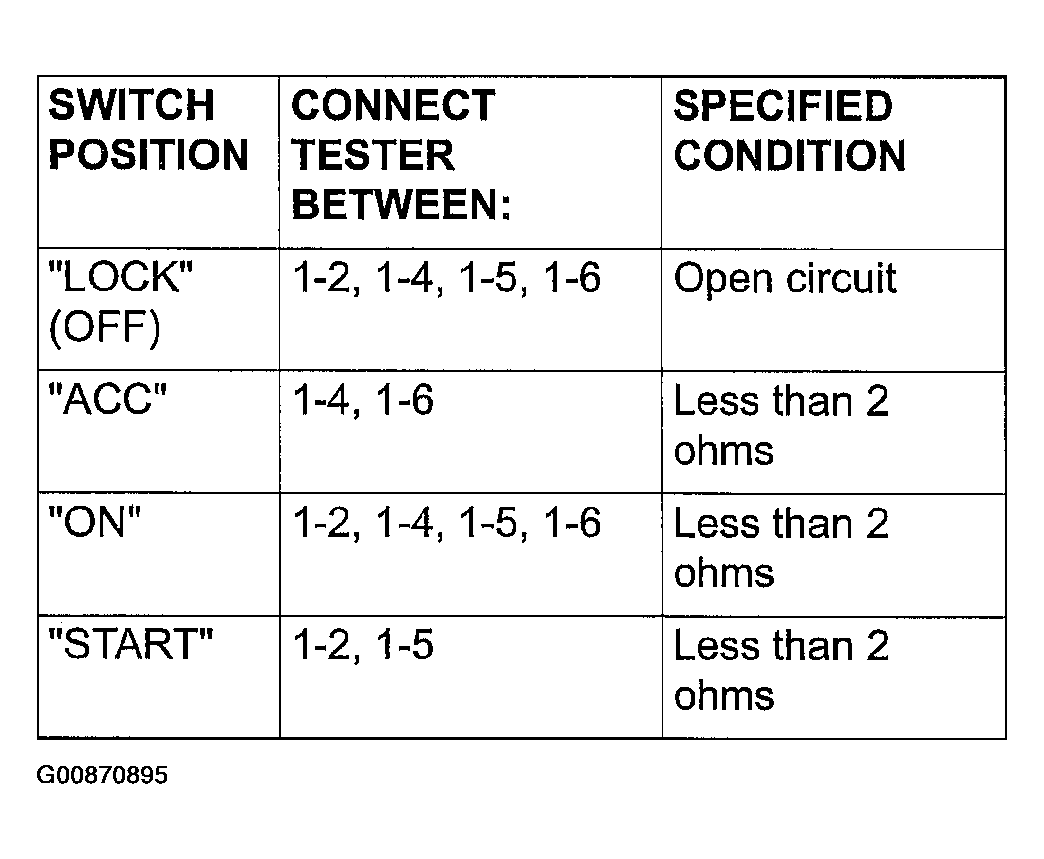

Fig 2: Ignition Switch Continuity Chart
G00870895Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
