Charge Rate

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

If the test indicator is white, the battery should be charged as outlined below. When the dot appears or when maximum charge shown below is reached, charging should be stopped.

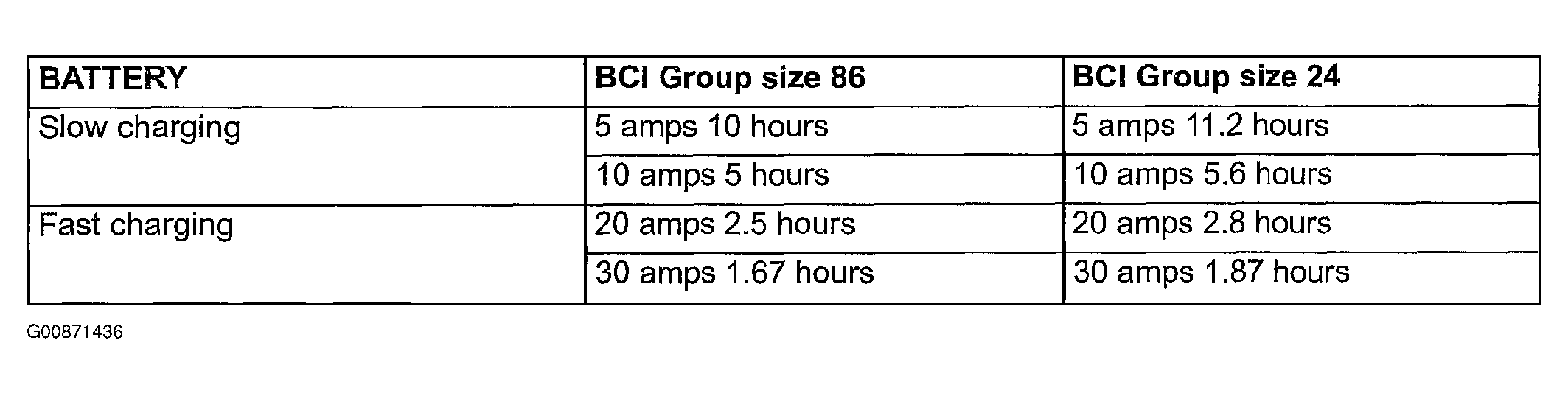

Fig 1: Charge Rate Chart
G00871436Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
