Removal And Installation: Notes

CAUTION: If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

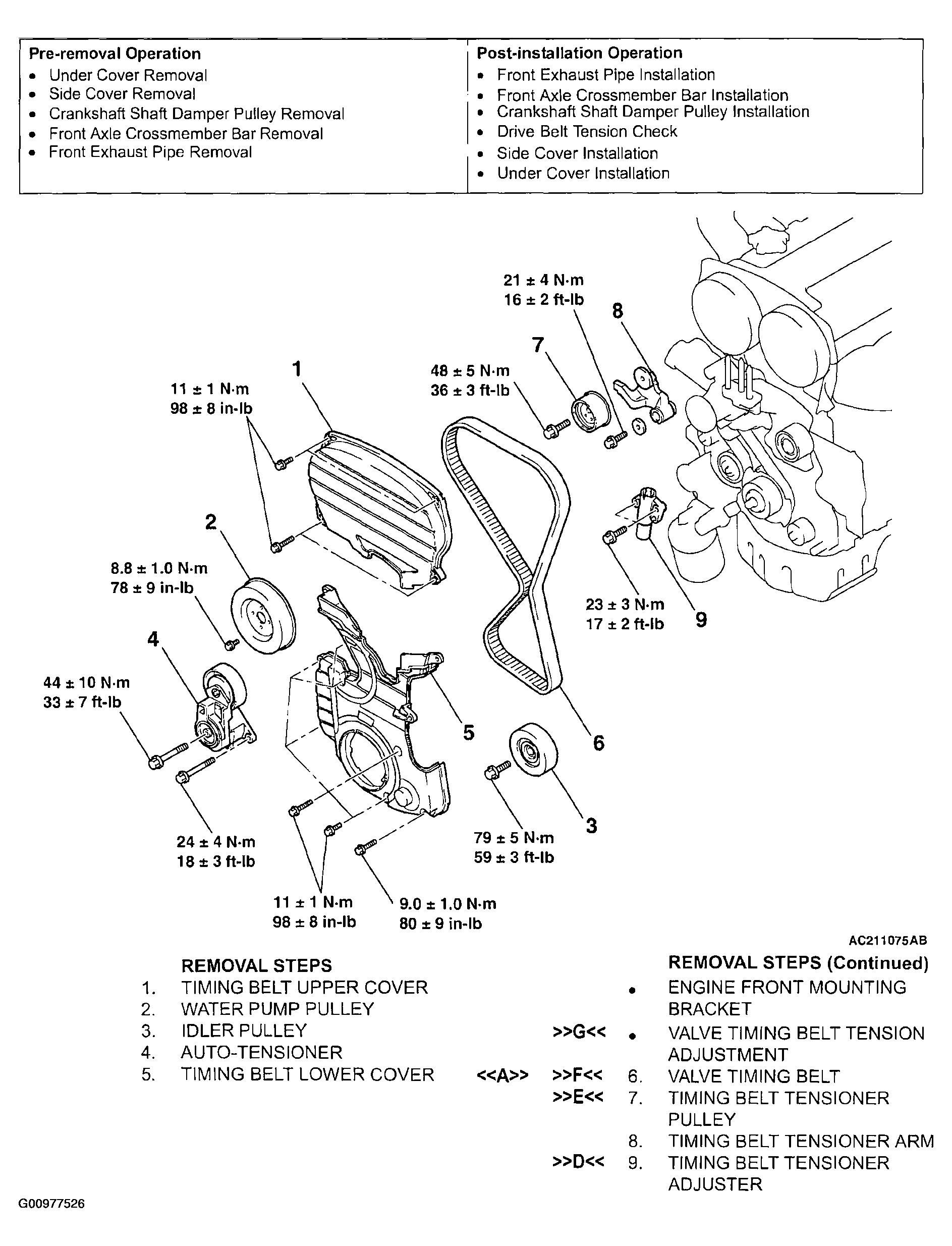

Fig 1: Exploded View Of Timing Belt Components (1 Of 2)
G00977526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

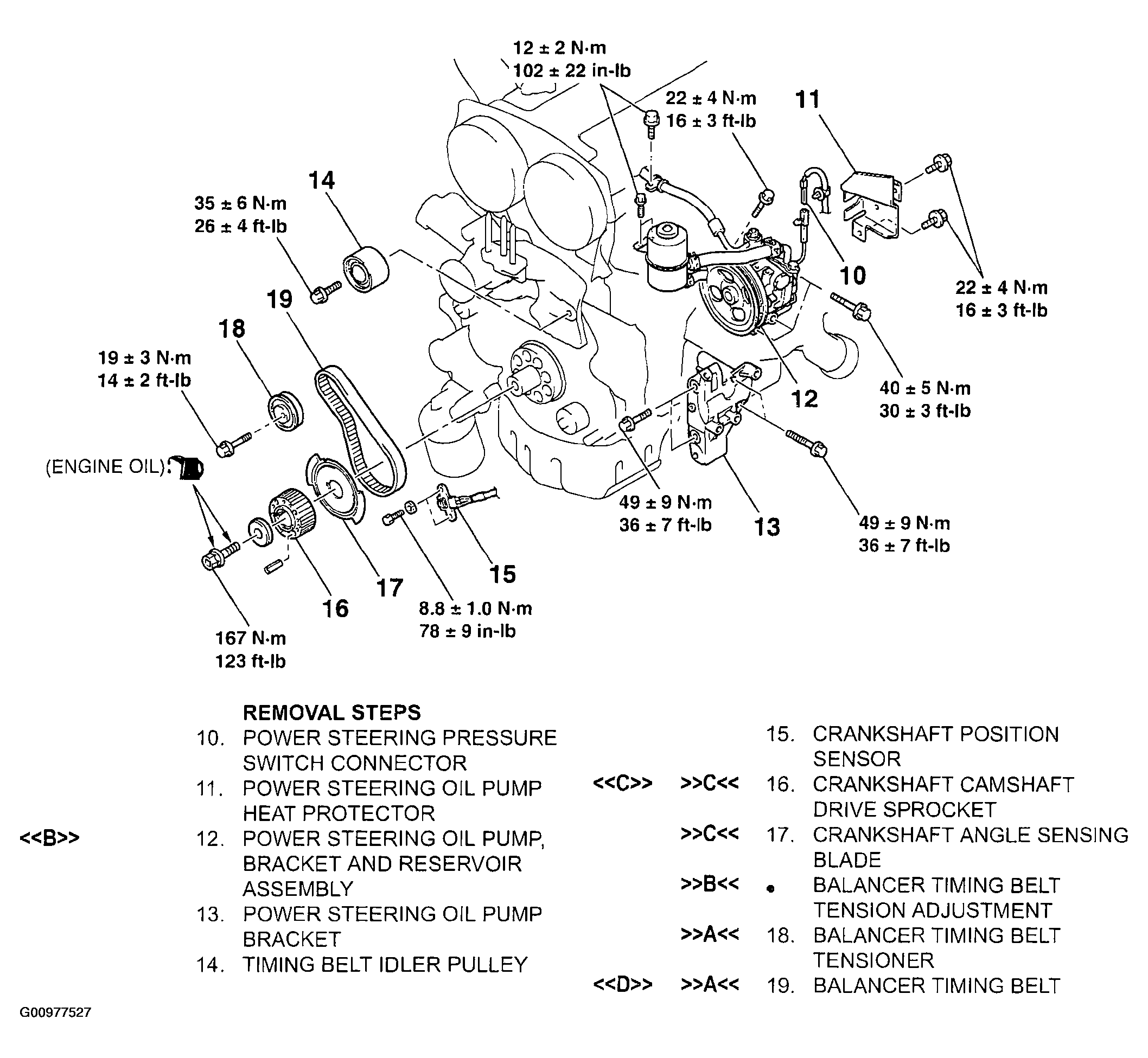

Fig 2: Exploded View Of Timing Belt Components (2 Of 2)
G00977527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
