Special Tools
Special Tools

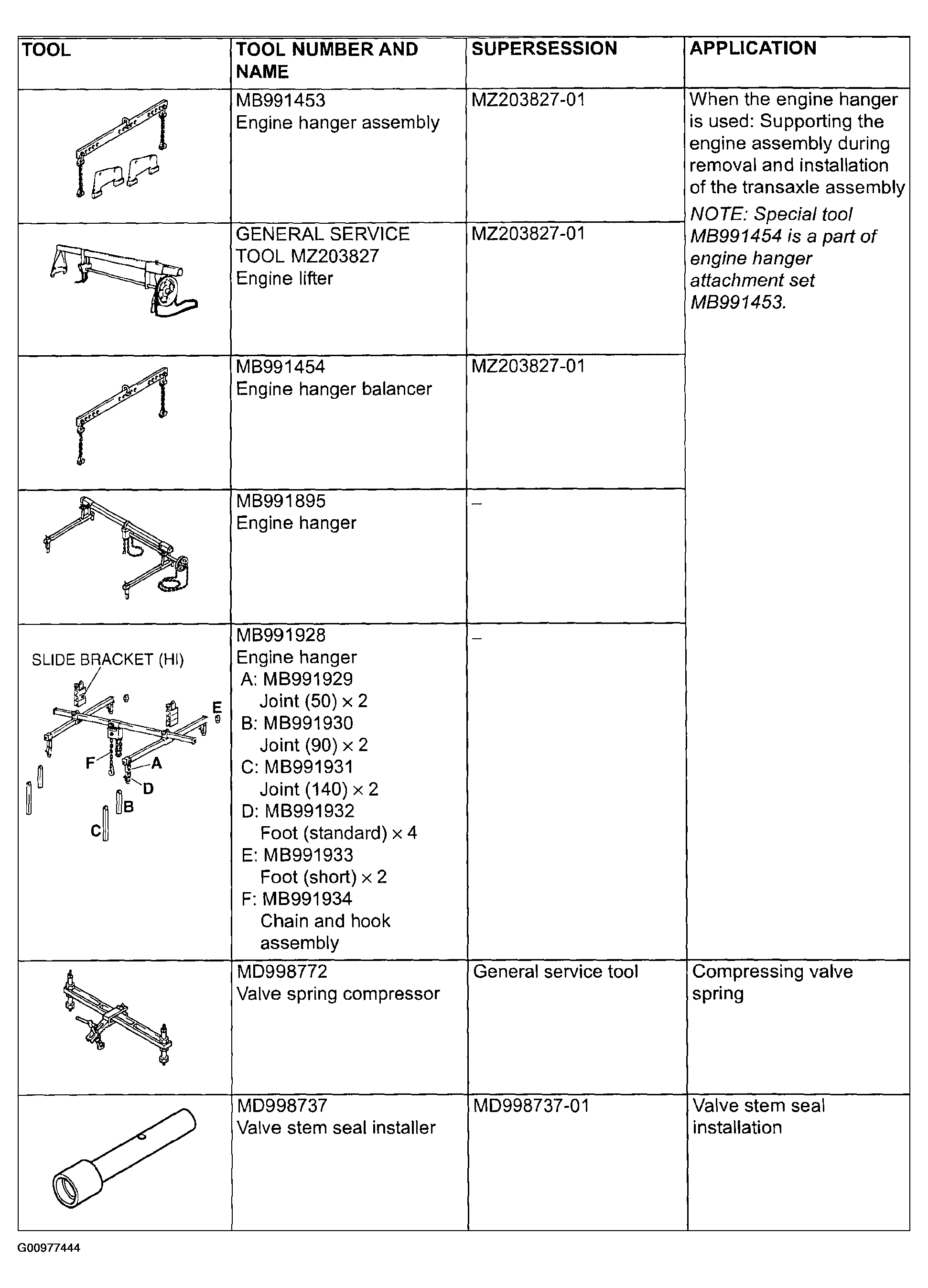

Fig 1: Identifying Engine Mechanical Special Tools (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Engine Mechanical Special Tools (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Engine Mechanical Special Tools (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

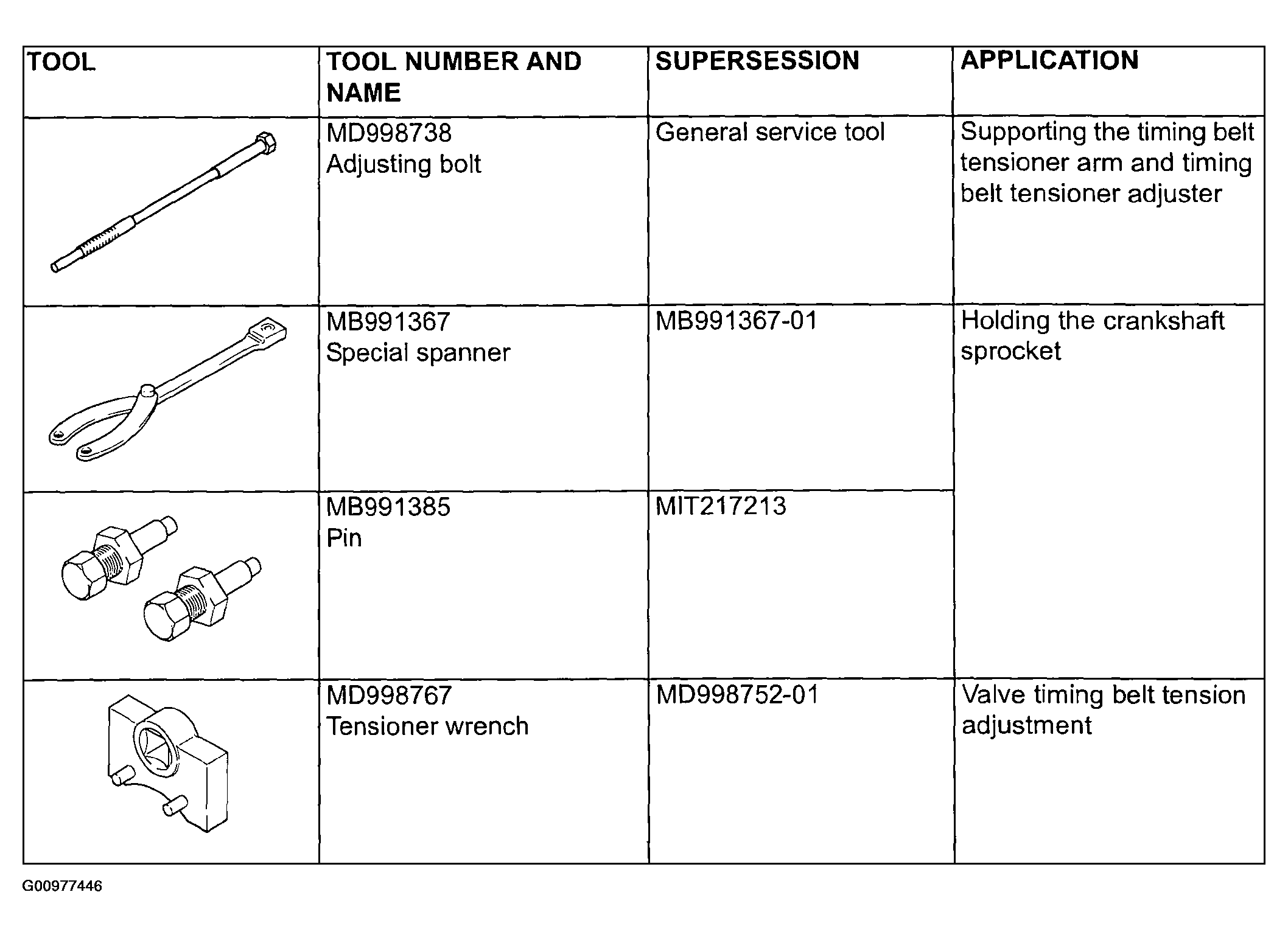

Fig 4: Identifying Engine Mechanical Special Tools (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
