Disassembly And Assembly: Notes

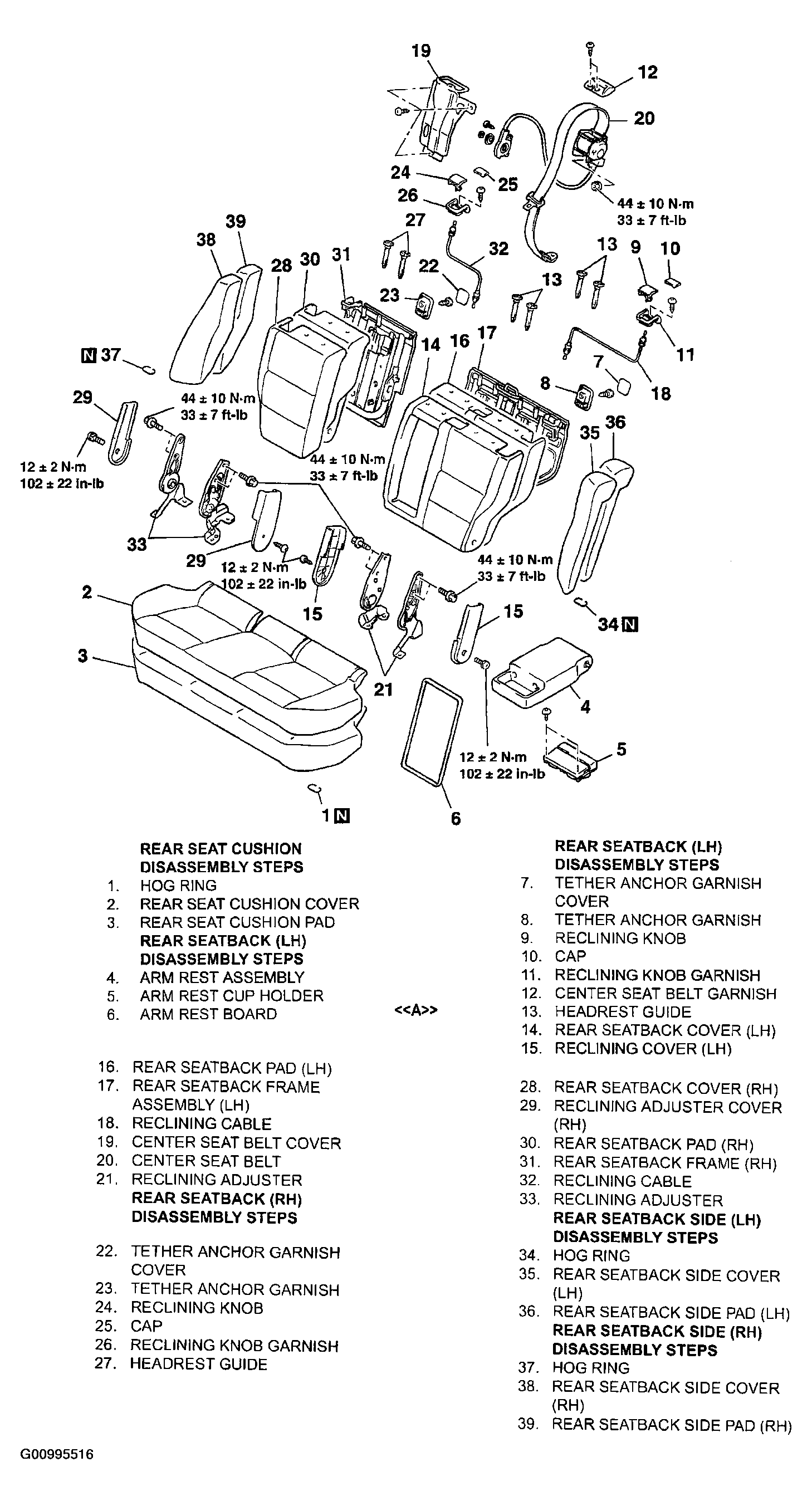

Fig 1: Exploded View Of Rear Seat Assembly

G00995516

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
