Disassembly And Assembly: Notes

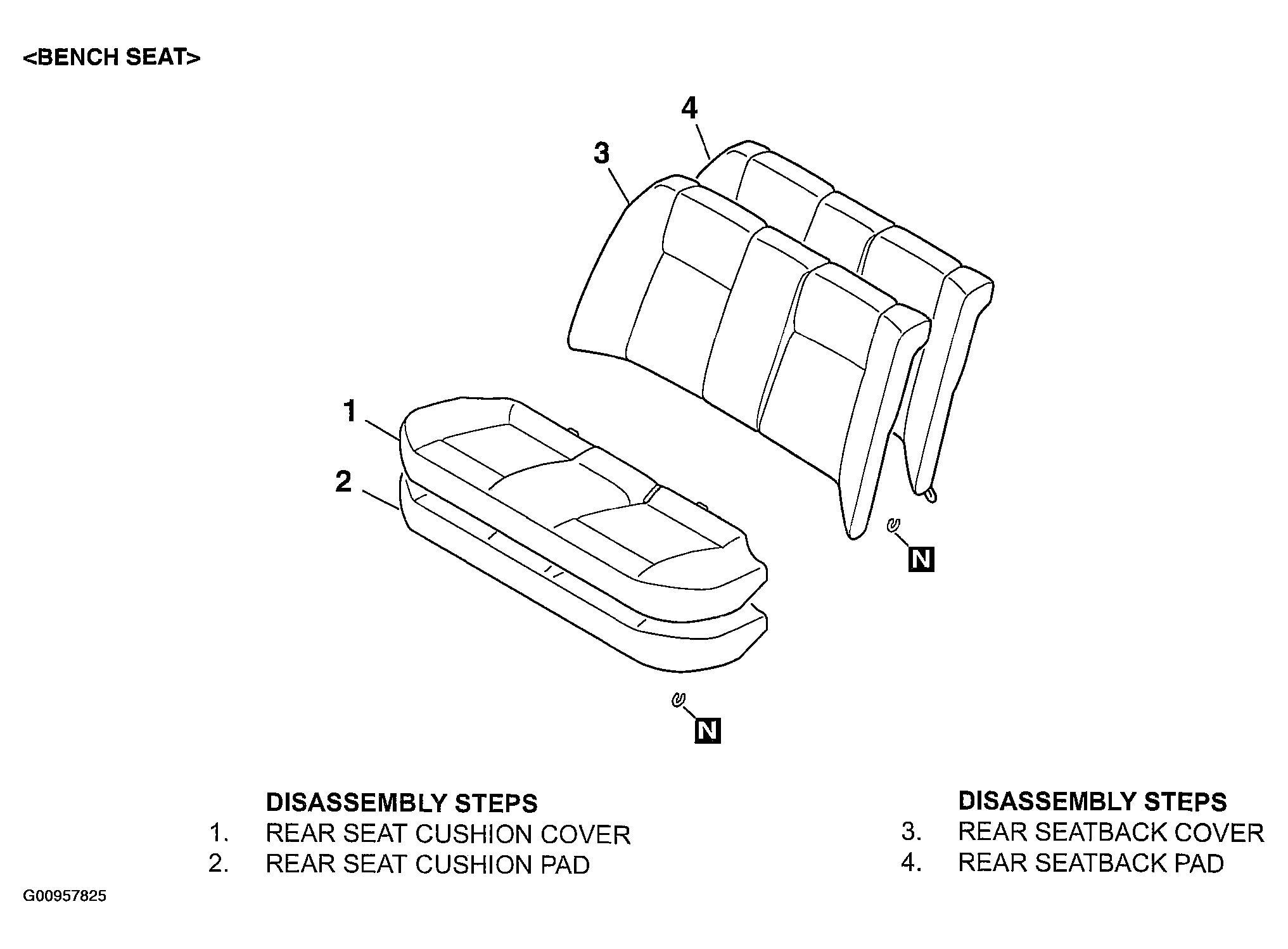

Fig 1: Disassembly Of Rear Seat Assembly (Bench Seat)
G00957825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

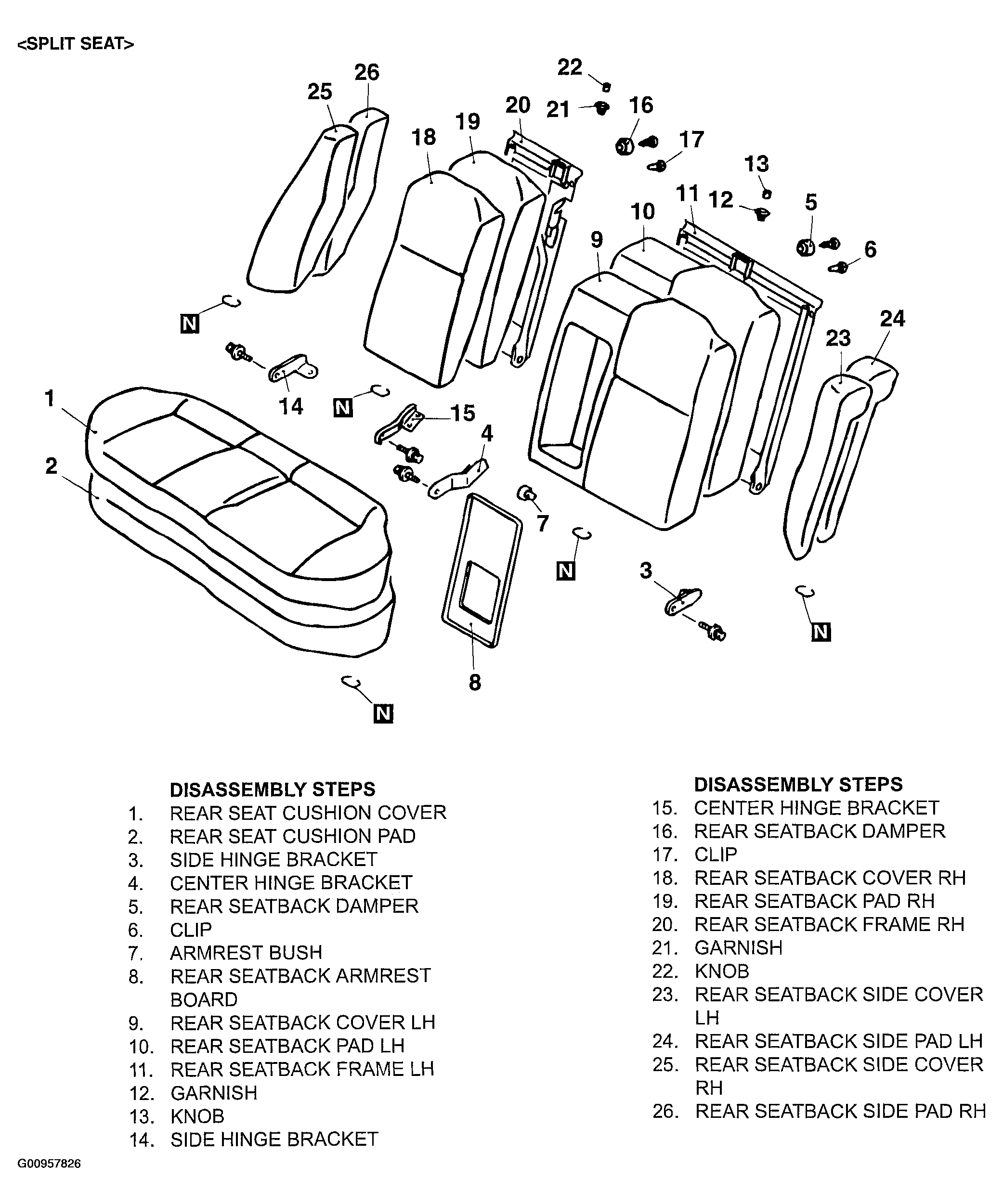

Fig 2: Disassembly Of Rear Seat Assembly (Split Seat)
G00957826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
