Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis >> Body & Frame >> Seats >> Rear Seat Assembly - Evolution >> Rear Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

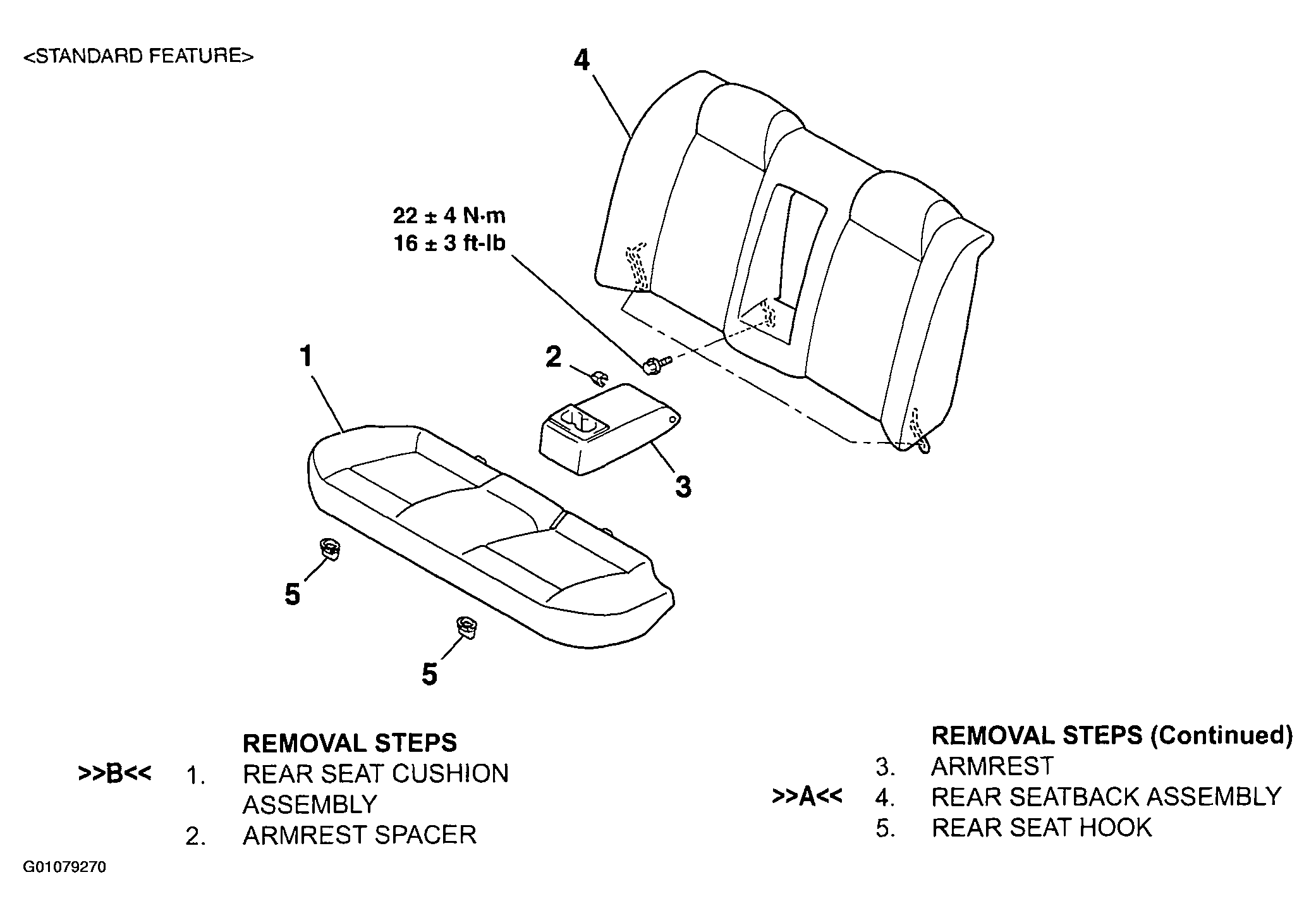

Fig 1: Removing Rear Seat Assembly (Standard)
G01079270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

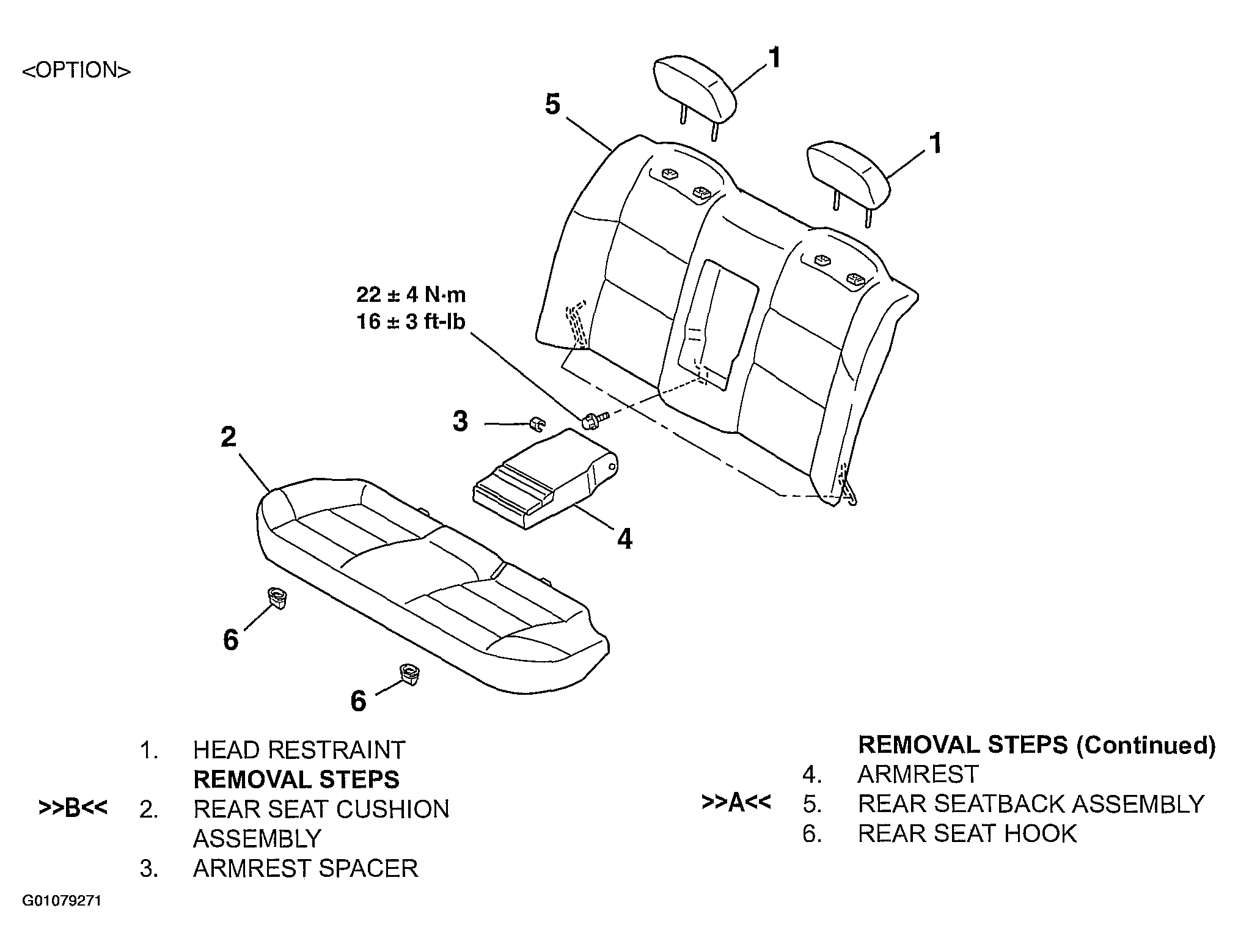

Fig 2: Removing Rear Seat Assembly (Option)
G01079271Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
