>> A << Dust Cover And Select Lever Bushing Installation

Make sure the dust cover and select lever bushing installation direction is correct, and distinguished parts are correctly assembled. Refer to the figure Fig 1.

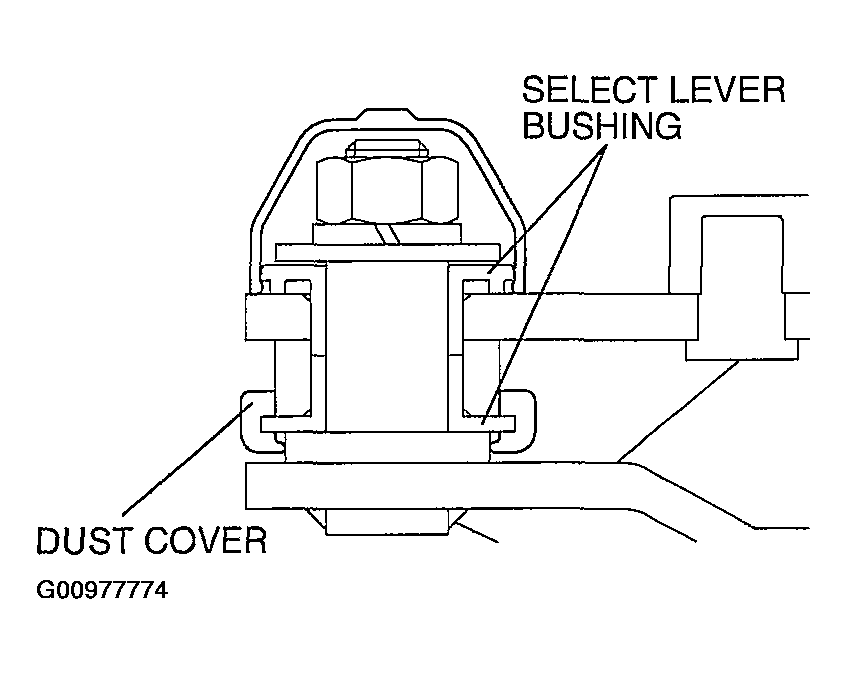

Fig 1: Installing Dust Cover And Select Lever Bushing
G00977774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
