License Plate Light Connector F-10 And Intermediate Connector F-12 Connector End View

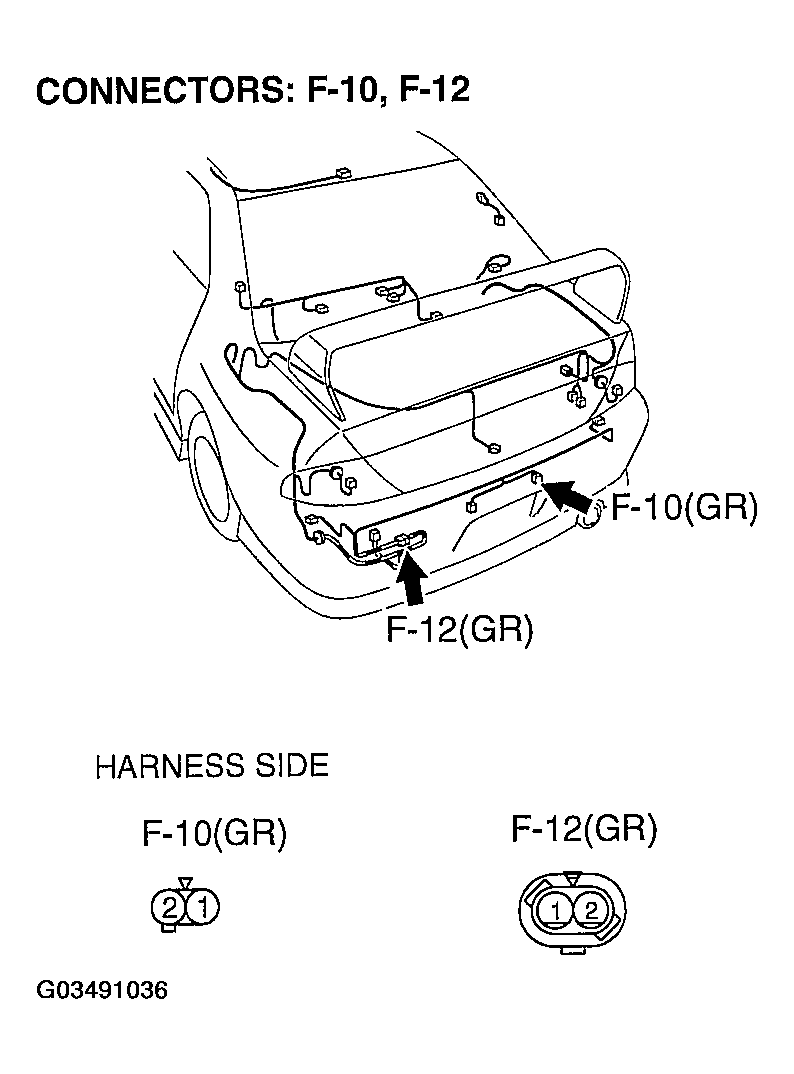

Fig 1: License Plate Light Connector F-10 And Intermediate Connector F-12 Connector End View
G03491036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
