INSPECTION PROCEDURE 2: Communication between the Scan Tool and the ABS-ECU is not possible.: Notes

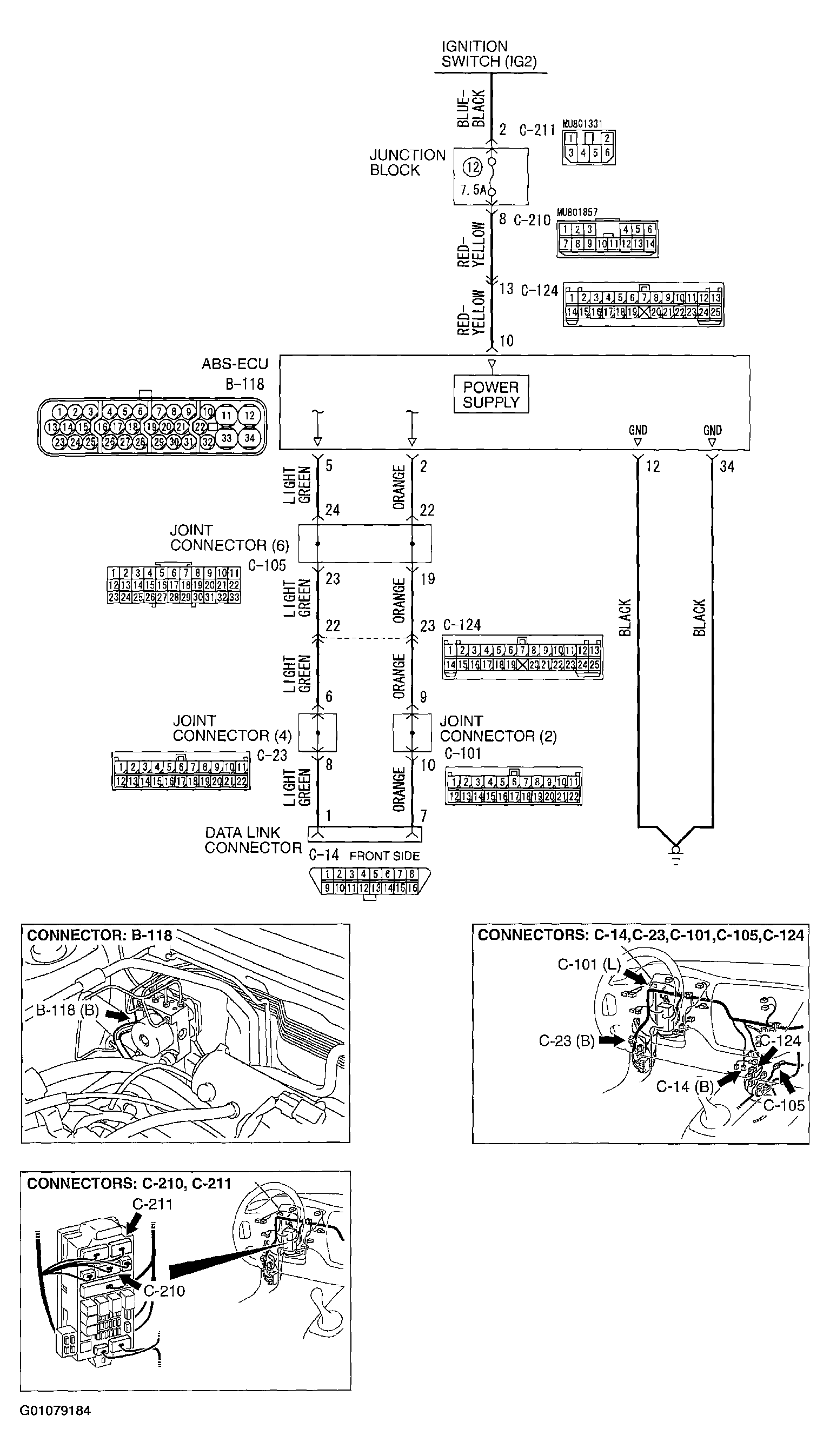

Fig 1: ABS-ECU Power Supply /Ground And Data Link Connector Circuit Diagram
G01079184Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
