DTC 71: Lateral G-Sensor System: Notes

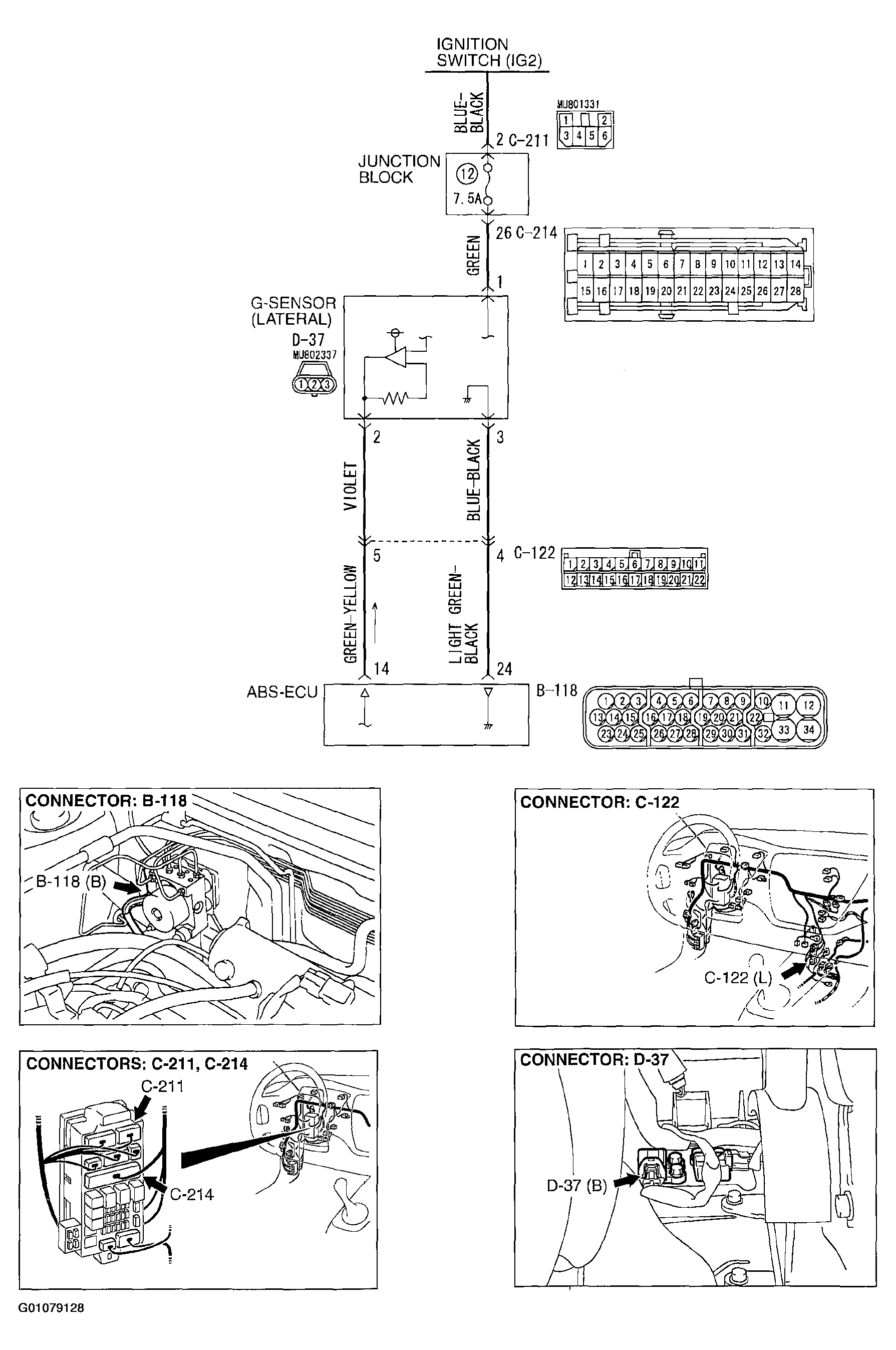

Fig 1: Lateral G-Sensor Circuit Diagram And Connectors
G01079128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
