Disassembly And Assembly: Notes

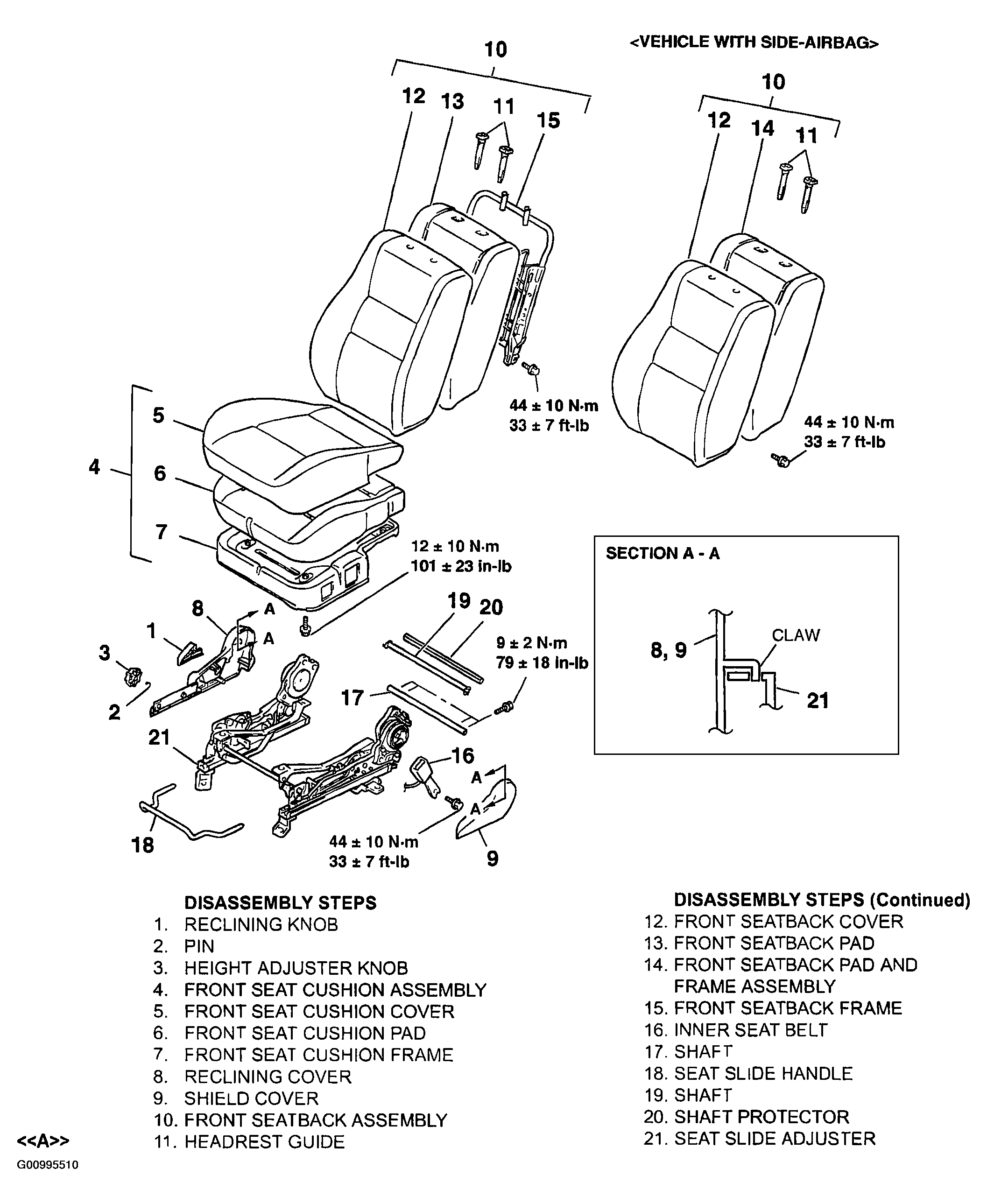

Fig 1: Identifying Seat Assembly Components

G00995510

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
