Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Front Seat Assembly - Lancer >> Front Seat Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

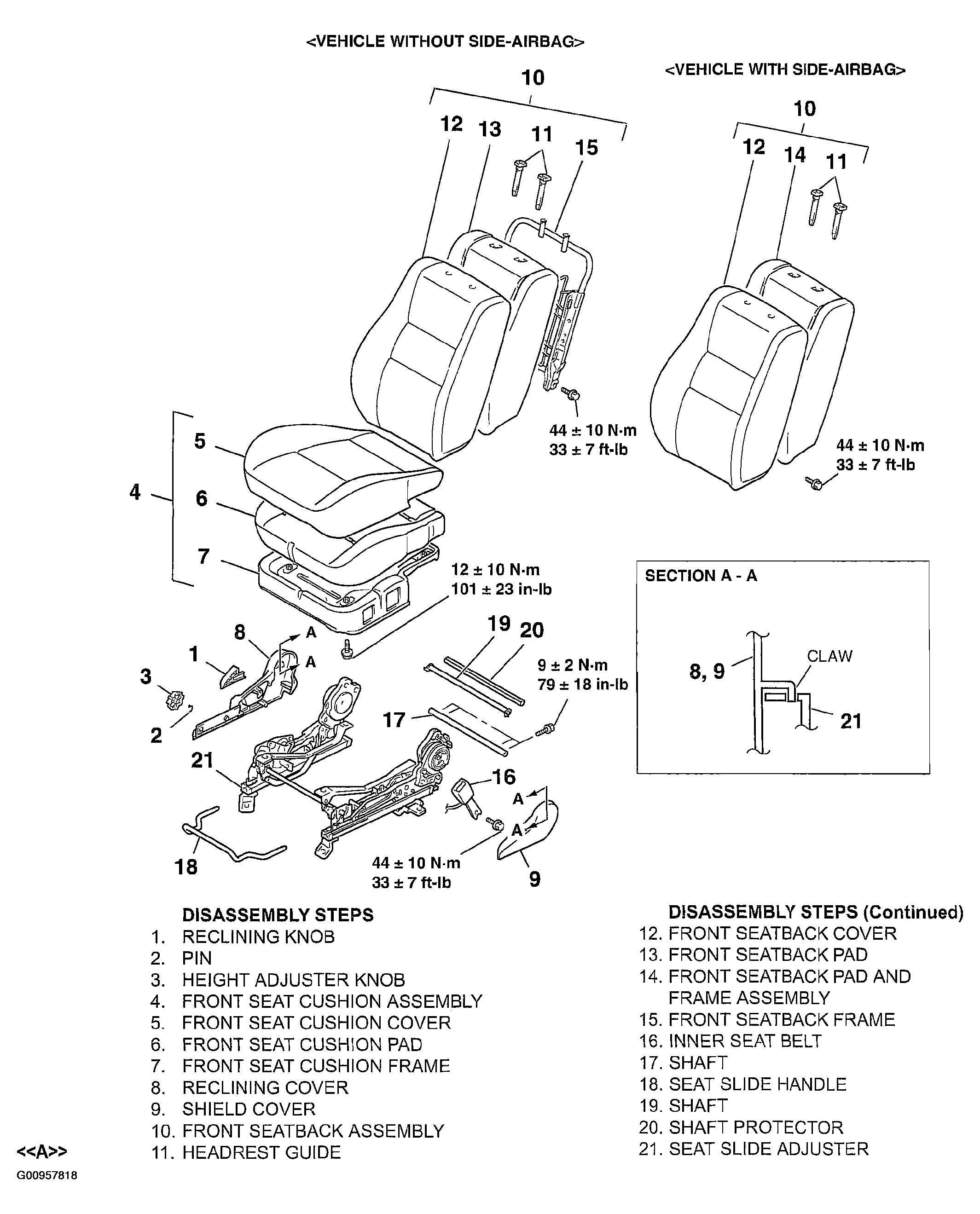

Fig 1: Installing/Removing Front Seat Assembly

G00957818

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
