Inspection Procedure 1: Communication With Scan MB991958 Is Impossible.: Notes

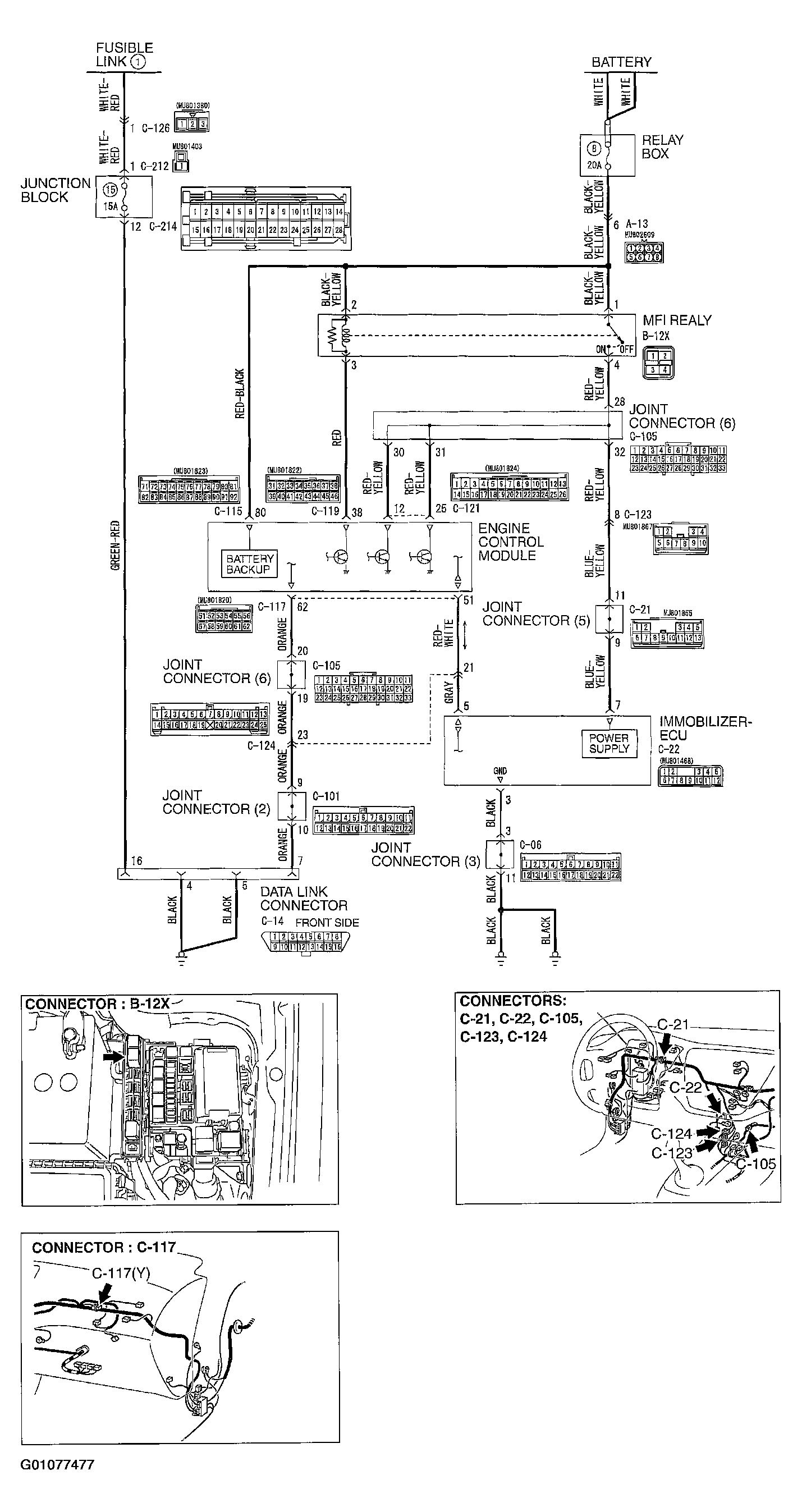

Fig 1: View Of Communication Circuit Diagram With Connector

G01077477

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
