Symptom Chart

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

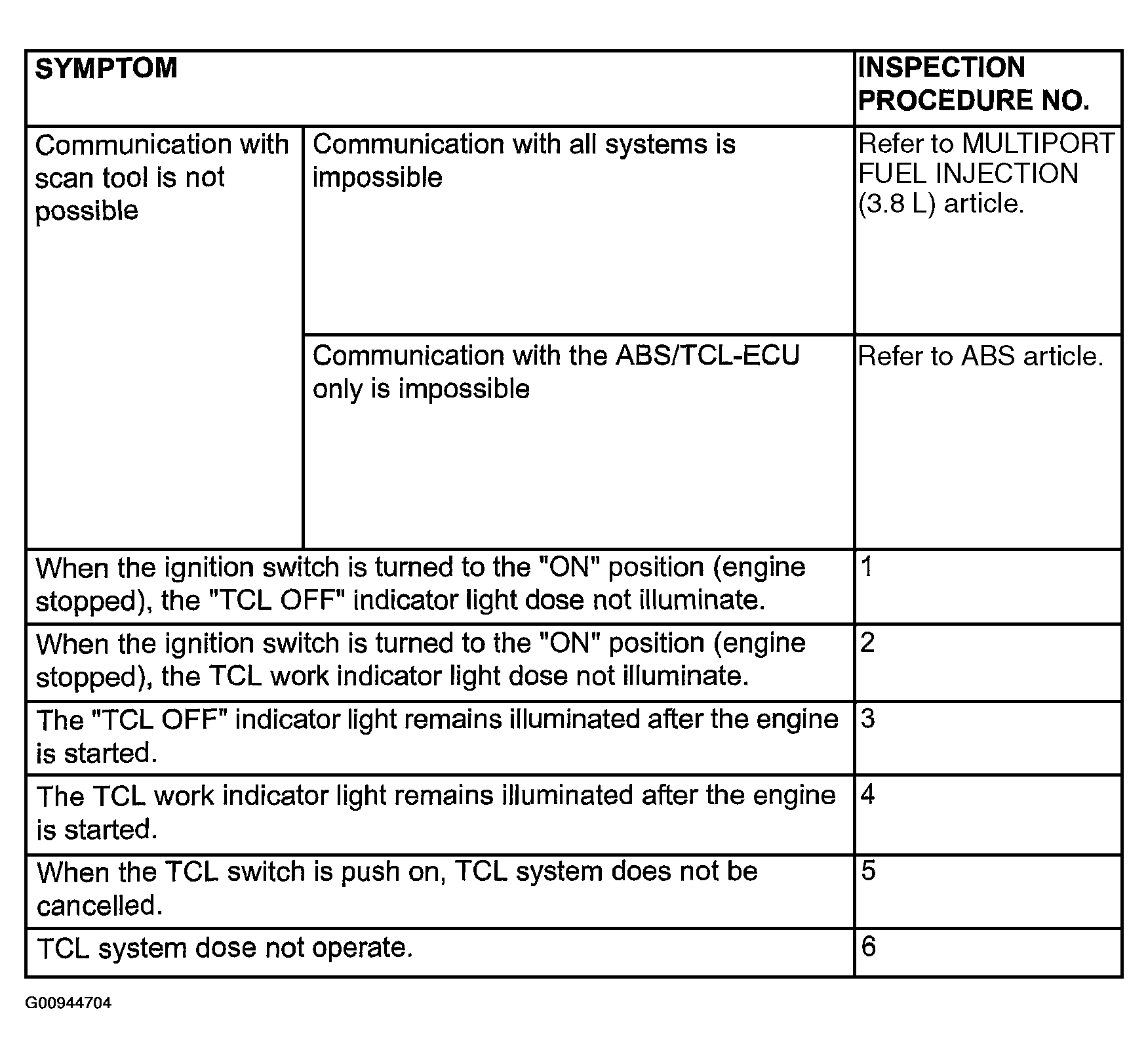

Fig 1: Symptom Chart
G00944704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
