Actuator Test Reference Table

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

The scan tool activates the following actuators for testing.

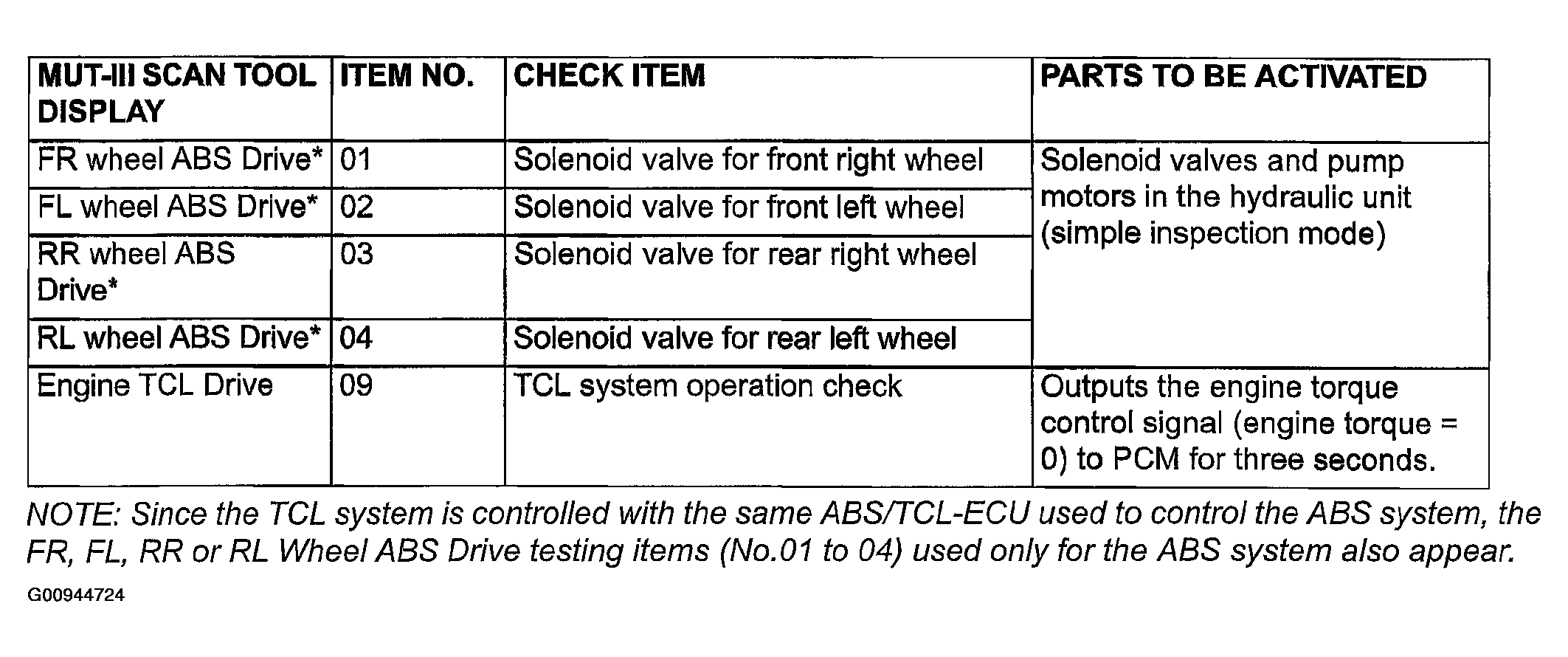

Fig 1: Actuator Test Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the FR, FL, RR or RL Wheel ABS Drive testing items (No. 01 to 04) used only for the ABS system also appear.
