Ambient Air Temperature Sensor Check
WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
The ambient temperature sensor should be checked in situ. Once the sensor is removed, it is rendered unserviceable.

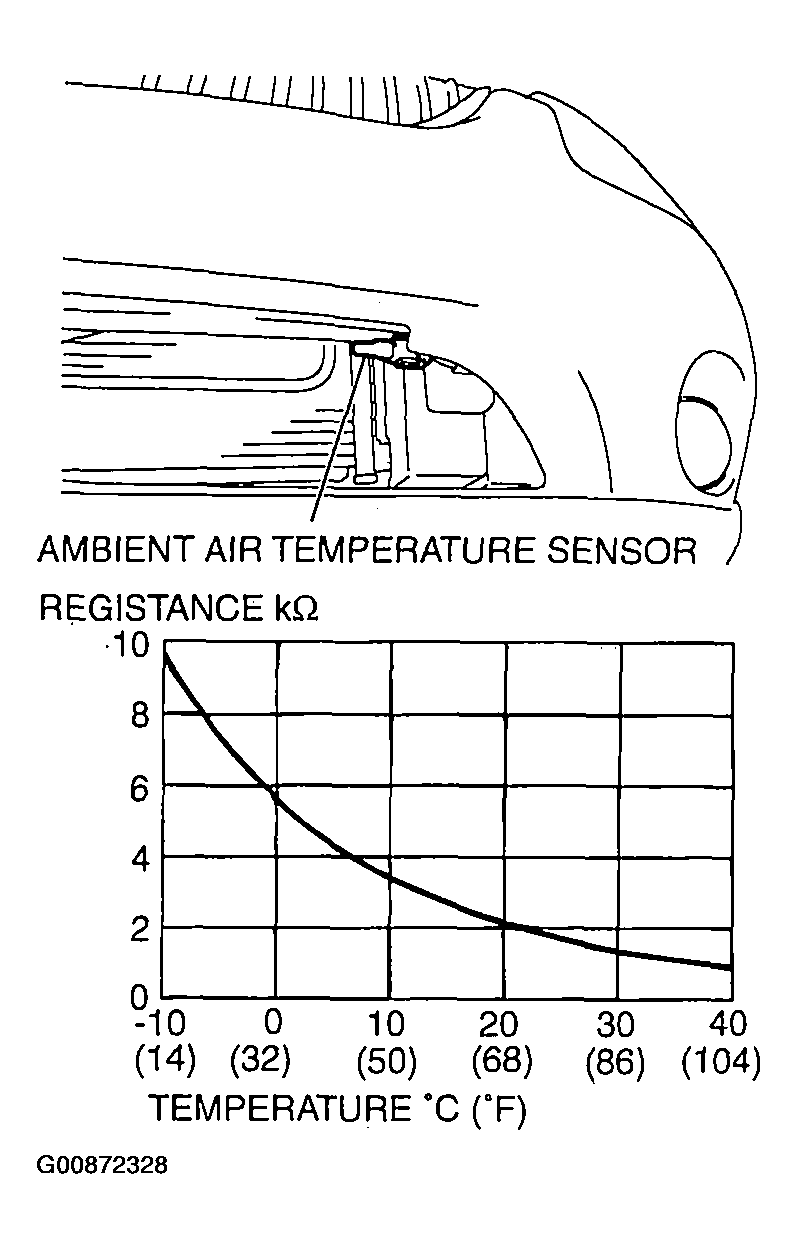

Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown.
NOTE:
The temperature should be within the shown range.
