Removal And Installation: Notes

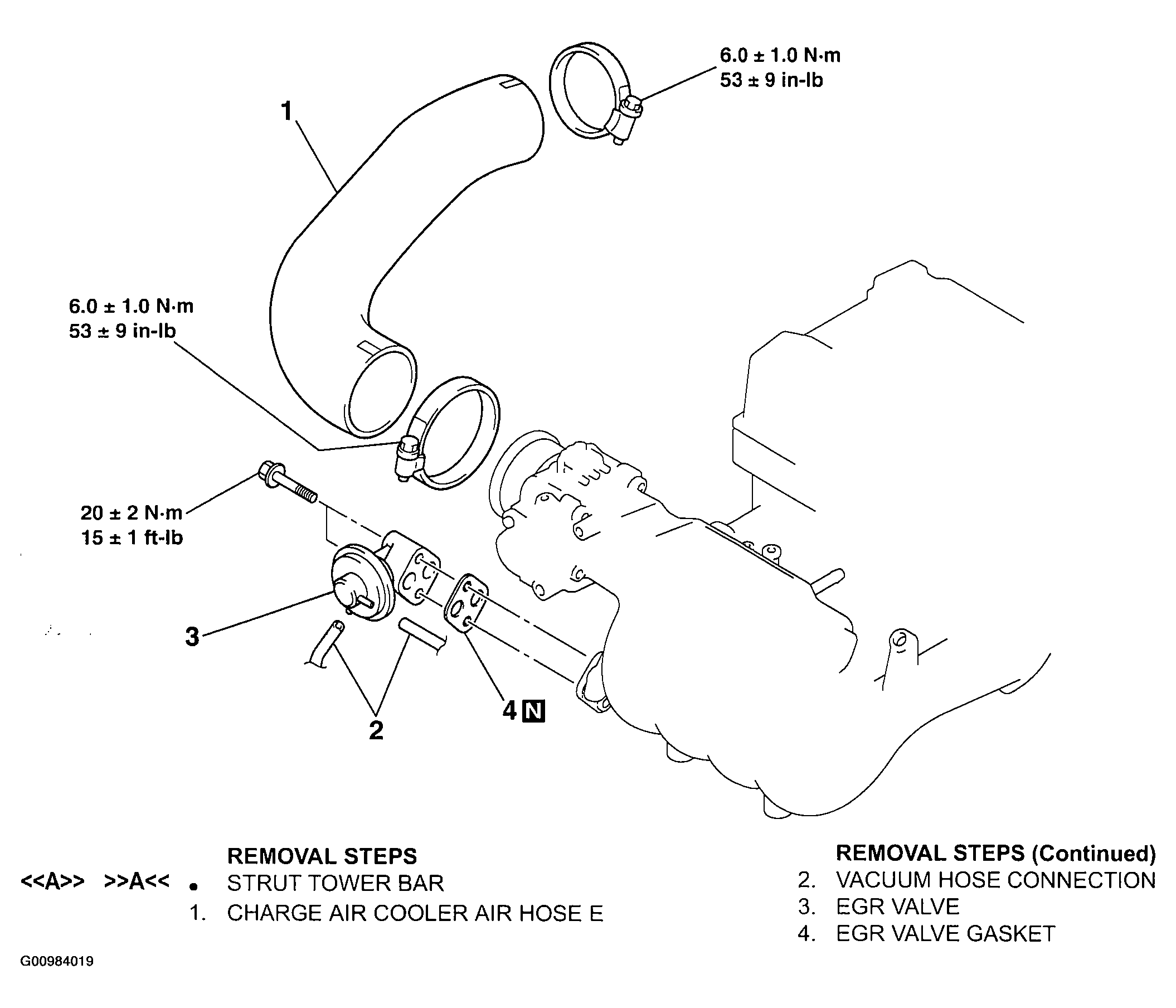

Fig 1: Removing EGR Valve

G00984019

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
