Home >> Mitsubishi >> 2004 >> Lancer Evolution RS >> Repair and Diagnosis >> Body & Frame >> Windows >> Door - Evolution >> Door Handle And Latch >> Removal And Installation >> Notes

Removal And Installation: Notes

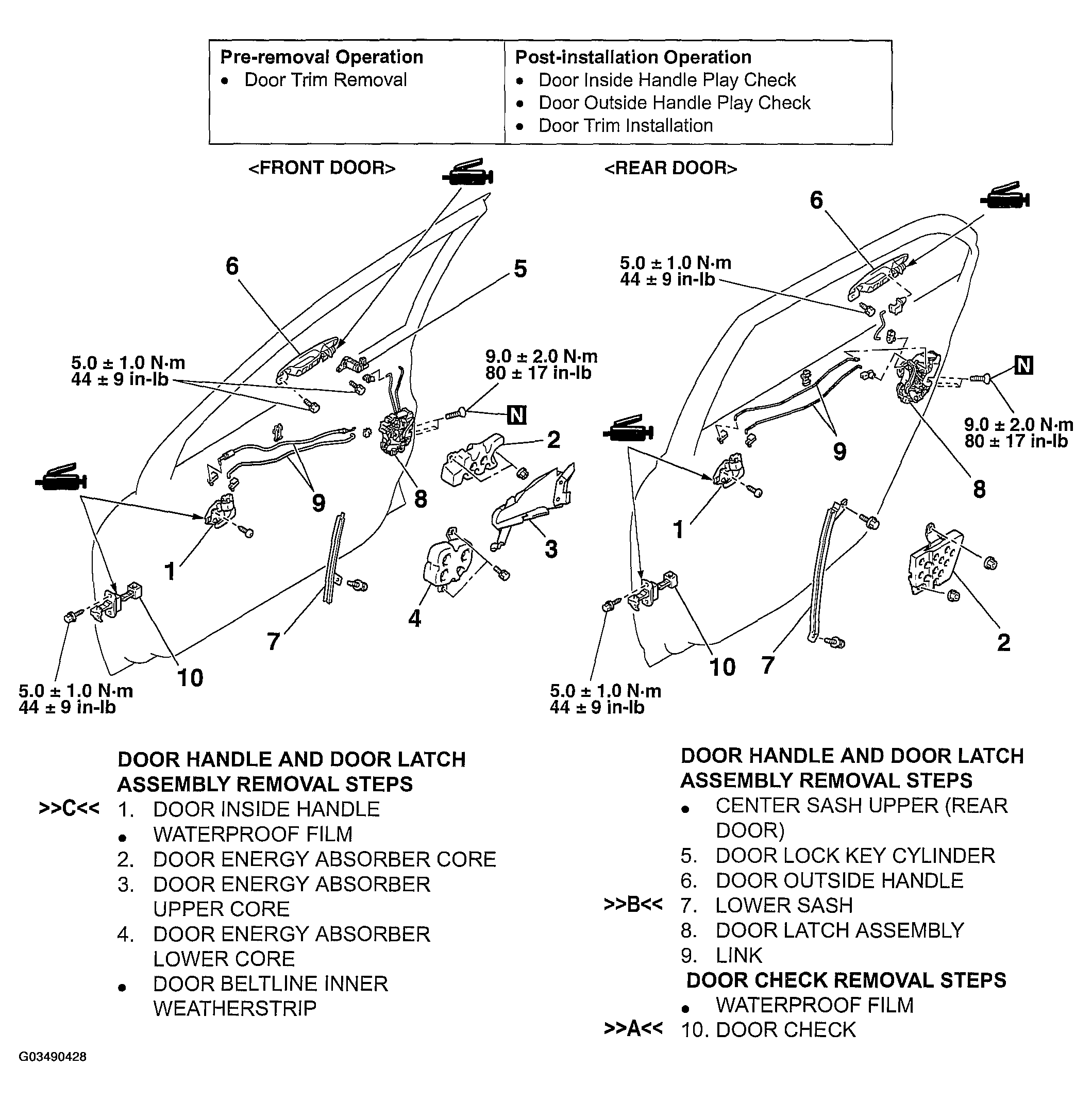

Fig 1: Exploded View Of Door Handle And Latch

G03490428

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
