Combination Meter & Vehicle Speed Sensor - Evolution
>>
Combination Meter Assembly And Vehicle Speed Sensor
>>
Combination Meter Assembly And Vehicle Speed Sensor
>>
Disassembly And Assembly
Disassembly And Assembly

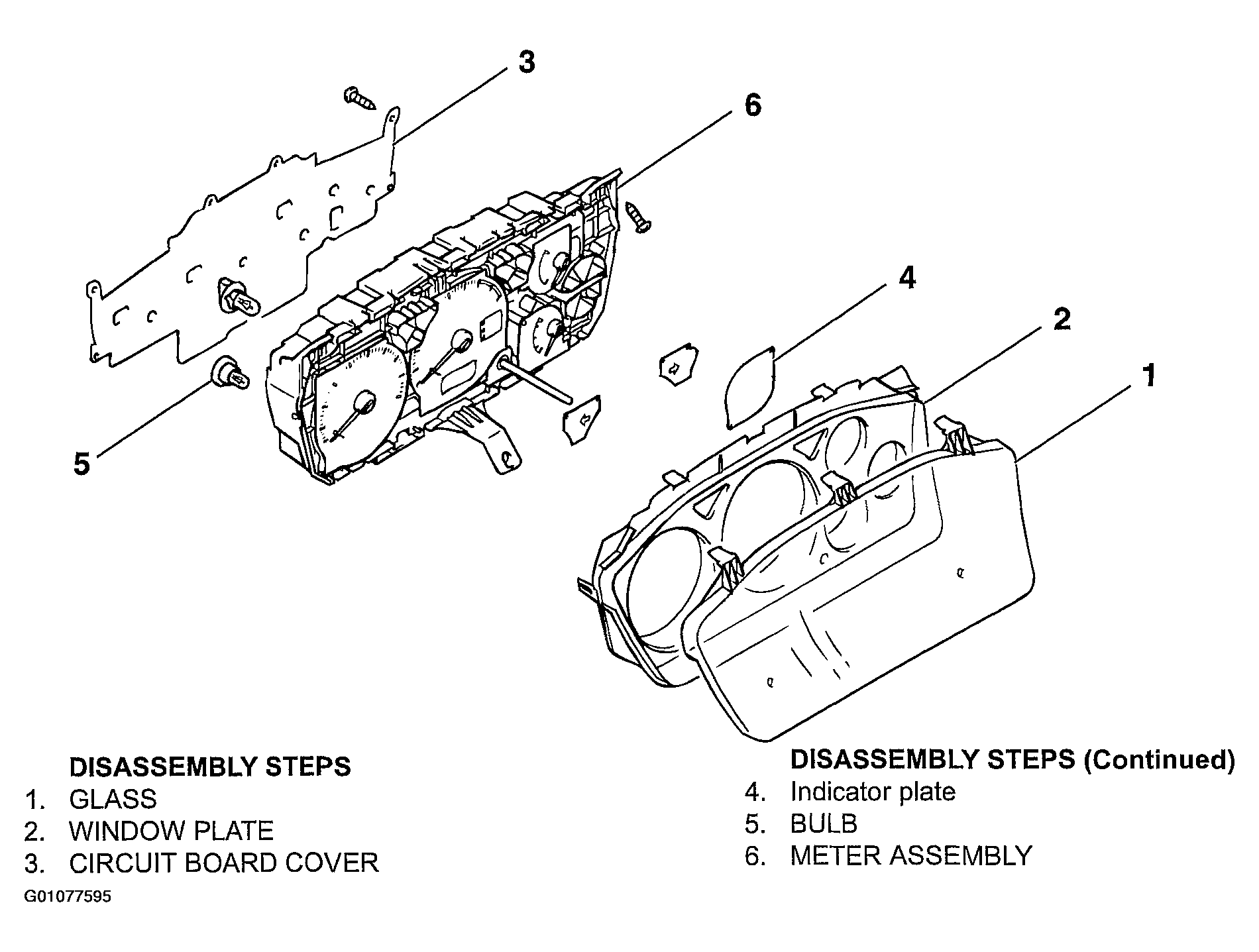

Fig 1: Identifying Combination Meter Components (Disassembled View)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
