Disassembly And Assembly: Notes

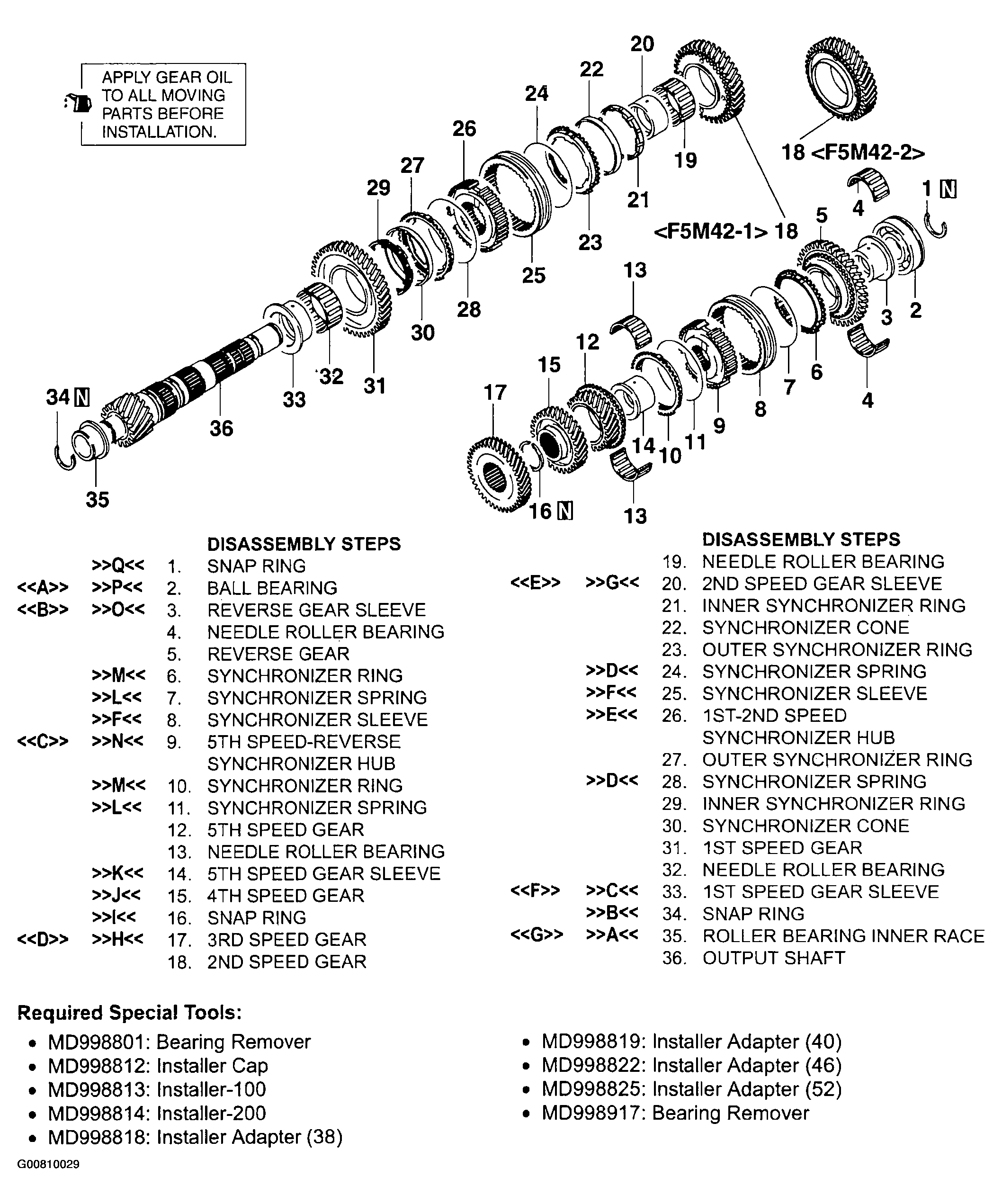

Fig 1: Disassembling And Assembling Output Shaft

G00810029

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
