Home >> Mitsubishi >> 2004 >> Lancer ES, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Overhaul - Except Evolution >> Input Shaft >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

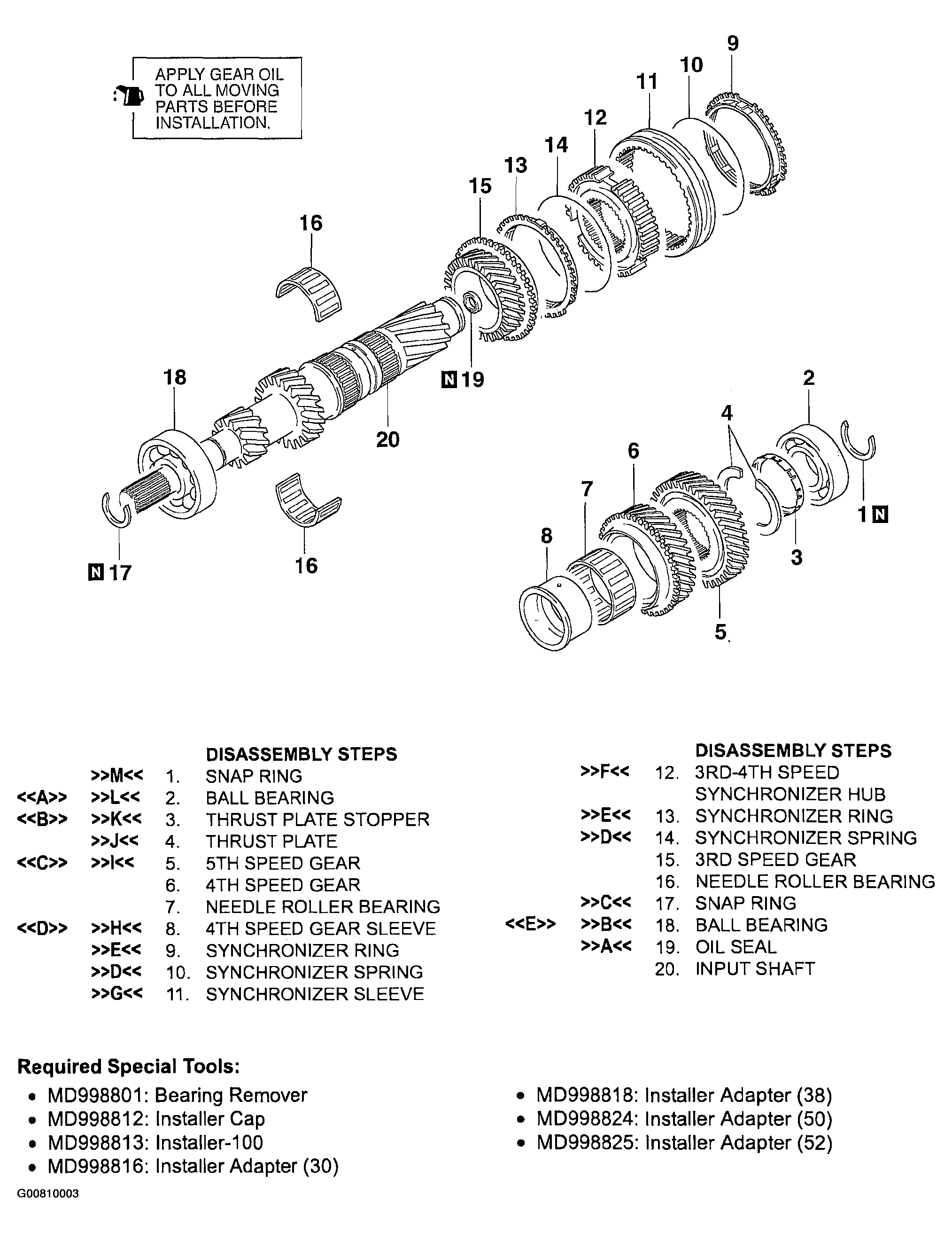

Fig 1: Disassembling And Assembling Input Shaft

G00810003

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
