Disassembly And Assembly

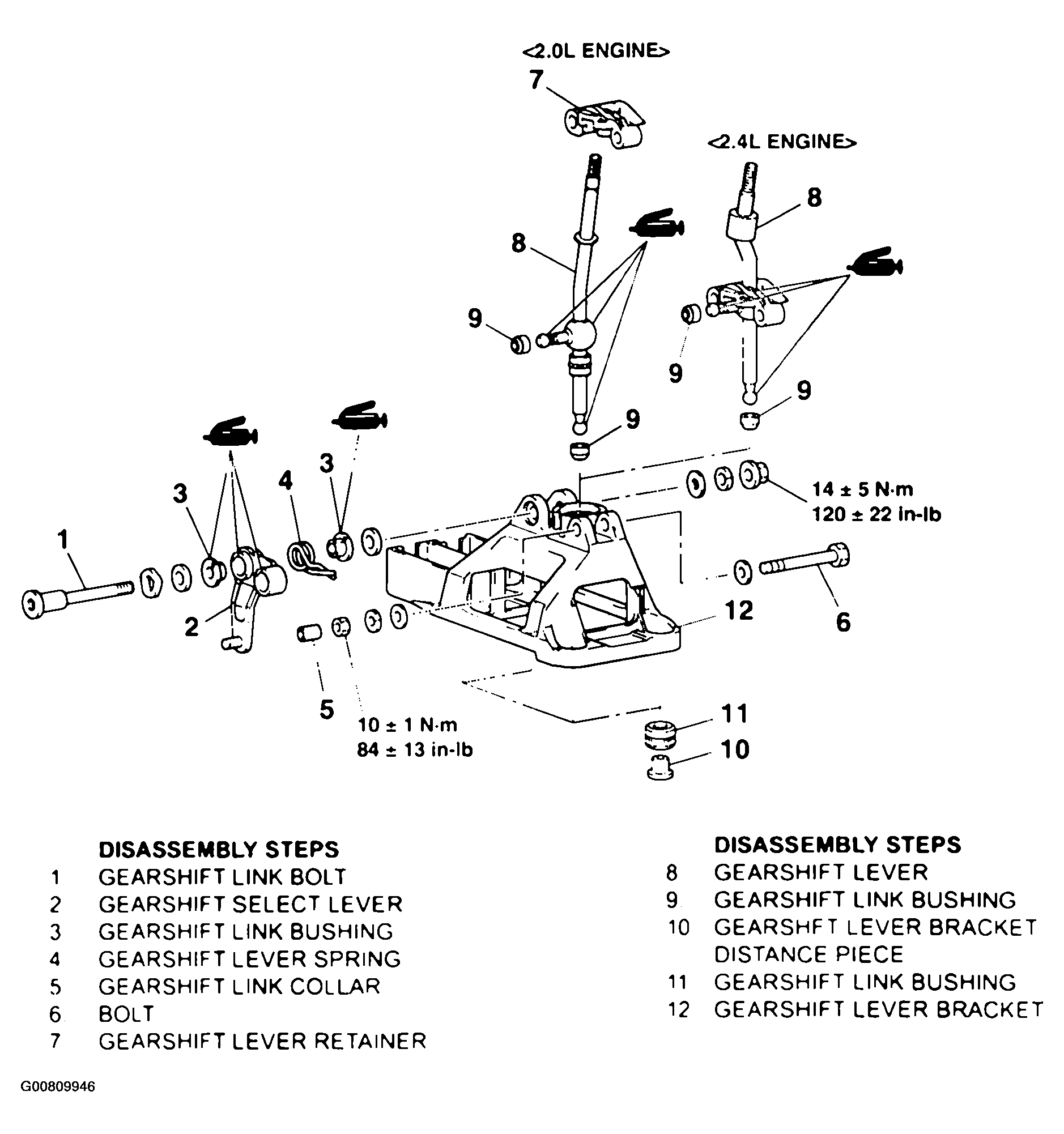

Fig 1: Identifying Shift Lever Assembly
G00809946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
