Removal And Installation: Notes

CAUTION: * : Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

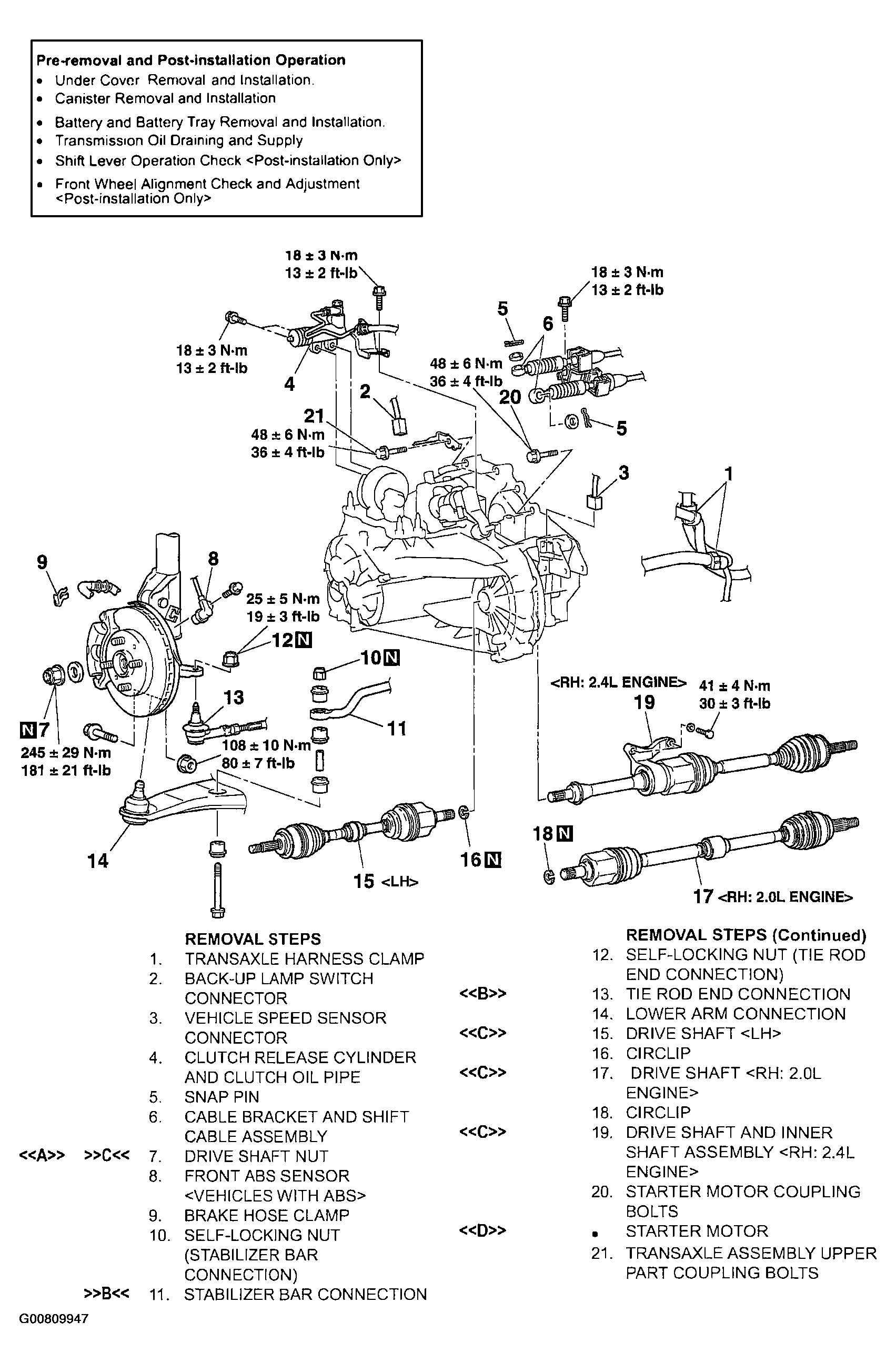

Fig 1: Removing Transaxle Assembly (1 Of 2)
G00809947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

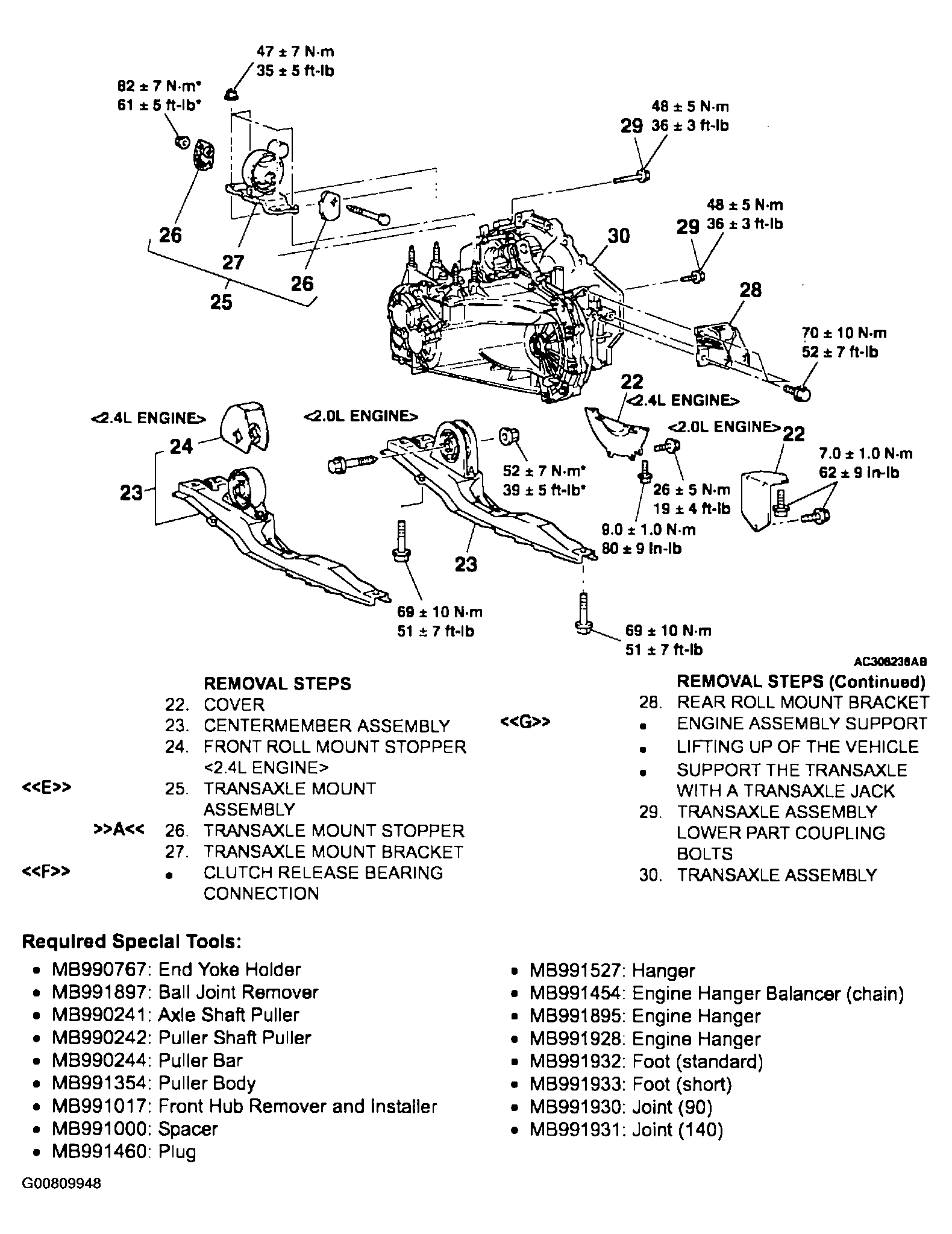

Fig 2: Removing Transaxle Assembly (2 Of 2)
G00809948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
