Section 58 (Simplified Wiring System (SWS) - Evolution)
>>
Special Tools
Special Tools
WARNING:
This page is about a different variant/trim than selected.

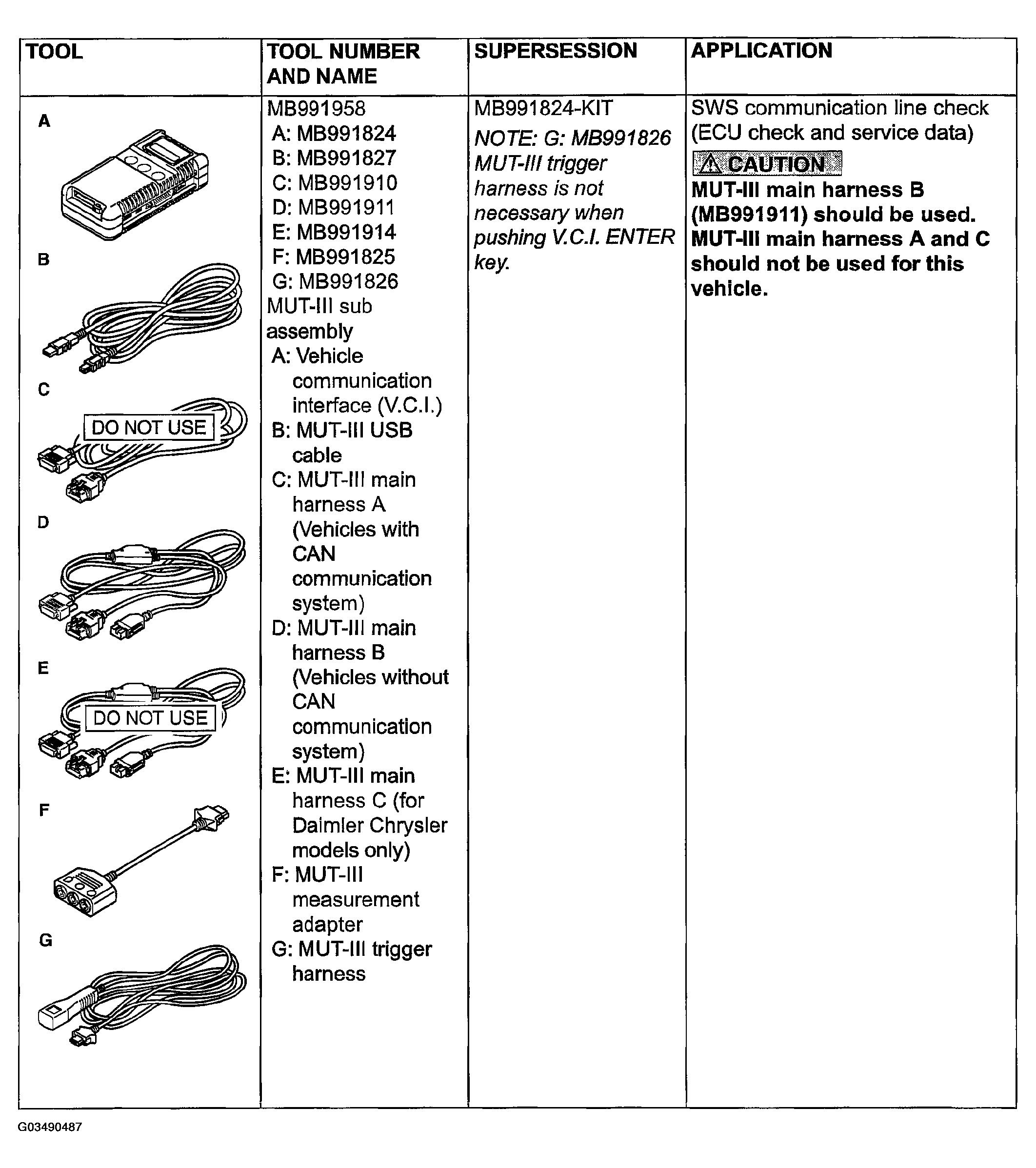

Fig 1: Identifying Special Tools Specification Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

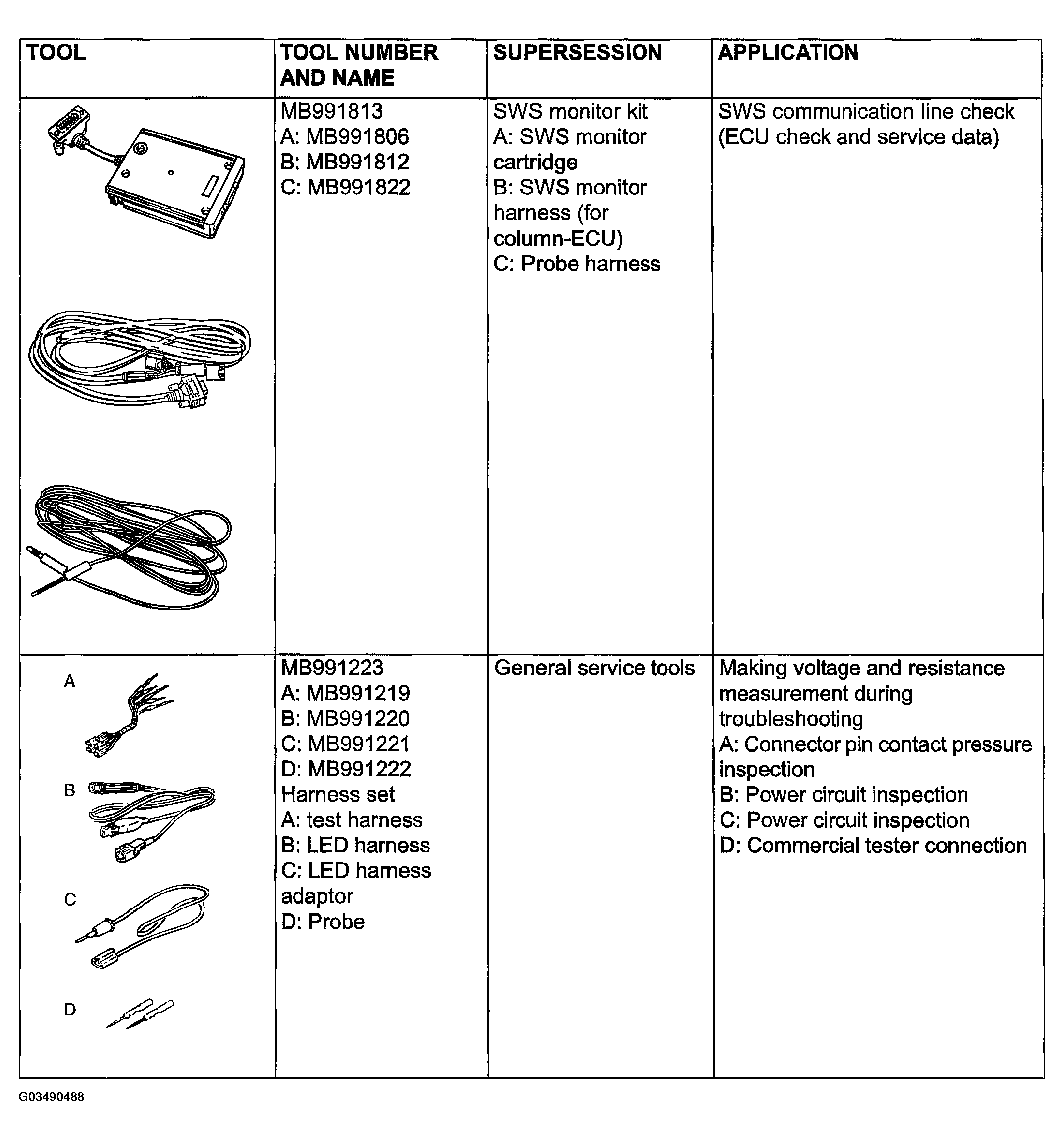

Fig 2: Identifying Special Tools Specification Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
