Keyless Entry Hazard ANSWERBACK And Horn ANSWERBACK Function

WARNING: This page is about a different variant/trim than selected.

The hazard answerback and horn answerback function which facilities checking of lock or unlock operations even during daytime is provided. When the lock signal is input from the keyless entry transmitter to the ETACS-ECU, the hazard warning light flashes twice and horn sounds once. When the unlock signal is input, hazard warning light flashes once.

NOTE: Hazard answerback function can be disabled by the configuration function (Refer to DTC P0335: CRANKSHAFT POSITION SENSOR CIRCUIT .)

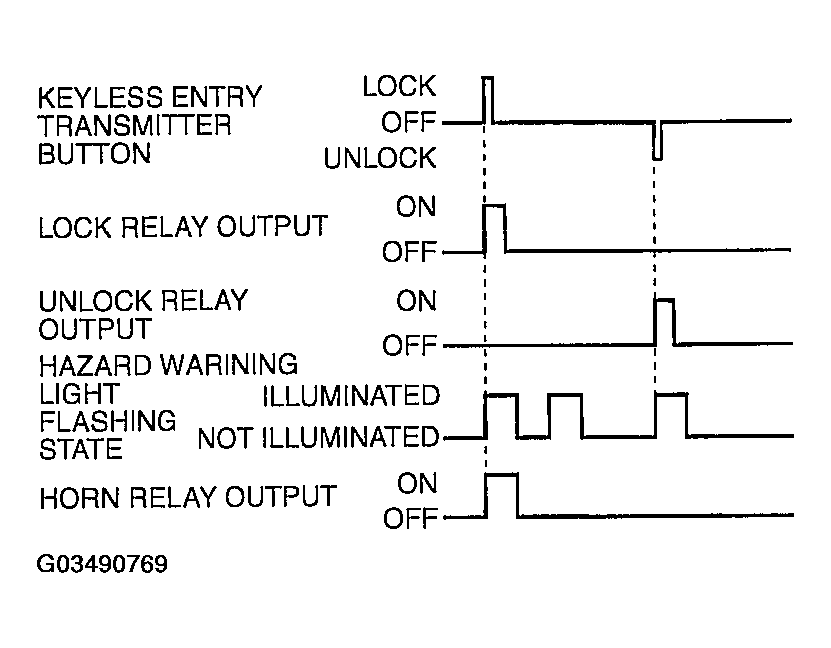

Fig 1: Identifying Keyless Entry Hazard Answerback And Horn Answerback Function
G03490769Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
