How To Use SWS Monitor

WARNING: This page is about a different variant/trim than selected.

To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as follows.

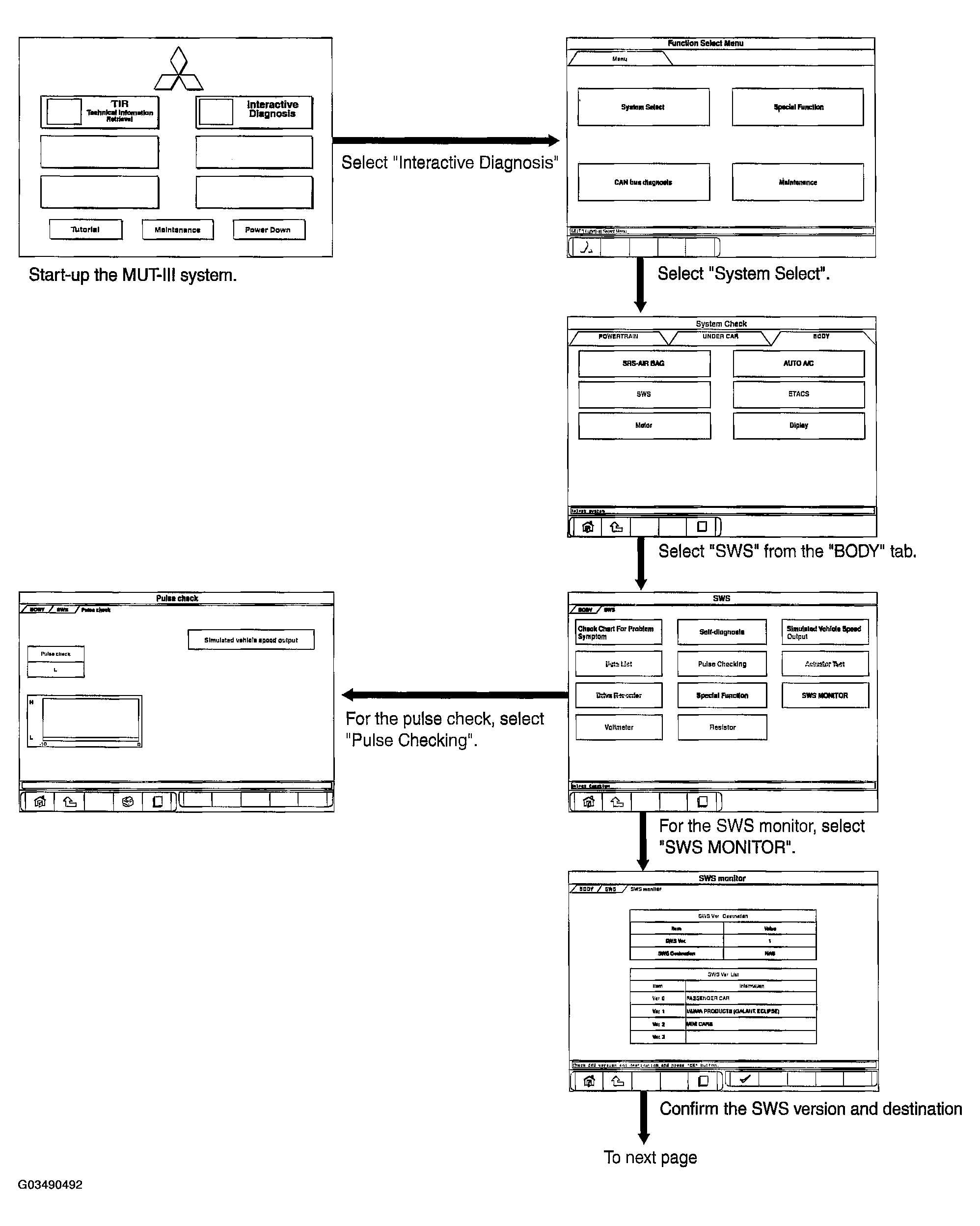

Fig 1: View Of SWS Flow Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

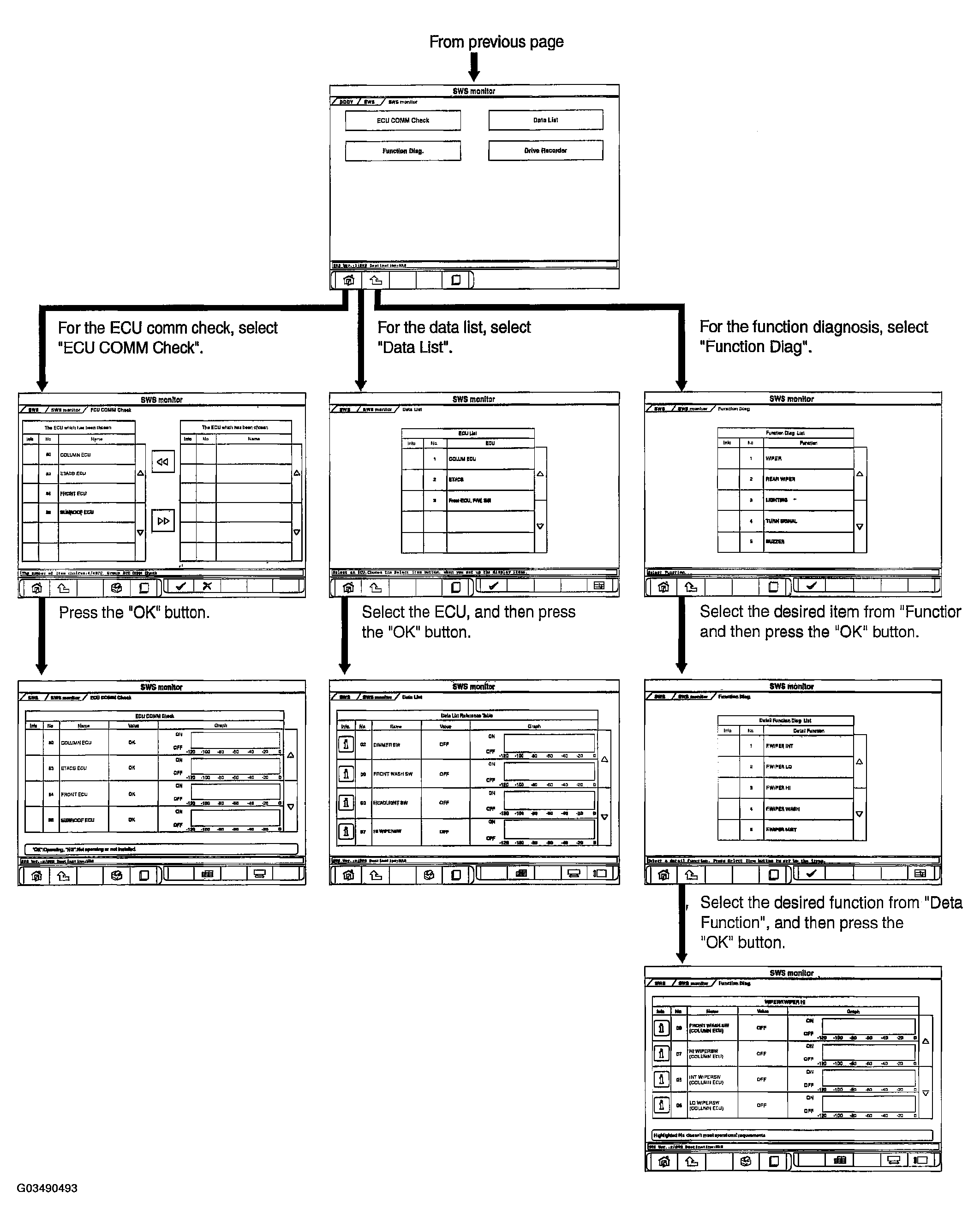

Fig 2: View Of SWS Flow Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
