How To Connect SWS Monitor

WARNING: This page is about a different variant/trim than selected.

Required Special Tools:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B
MB991813: SWS monitor kit
- MB991806: SWS monitor cartridge
- MB991812: SWS monitor harness (for column-ECU)
- MB991922: Probe harness

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect the special tool MB991911 before connecting special tool MB991812. Be sure to connect special tool MB991806 after turning on special tool MB991924.

Ensure that the ignition switch is at the "LOCK" (OFF) position.
Start up the personal computer.
Connect special tool MB991827 to special tool MB991824 and the personal computer.
Connect special tool MB991911 to special tool MB991824.
Connect special tool MB991911 to the data link connector.

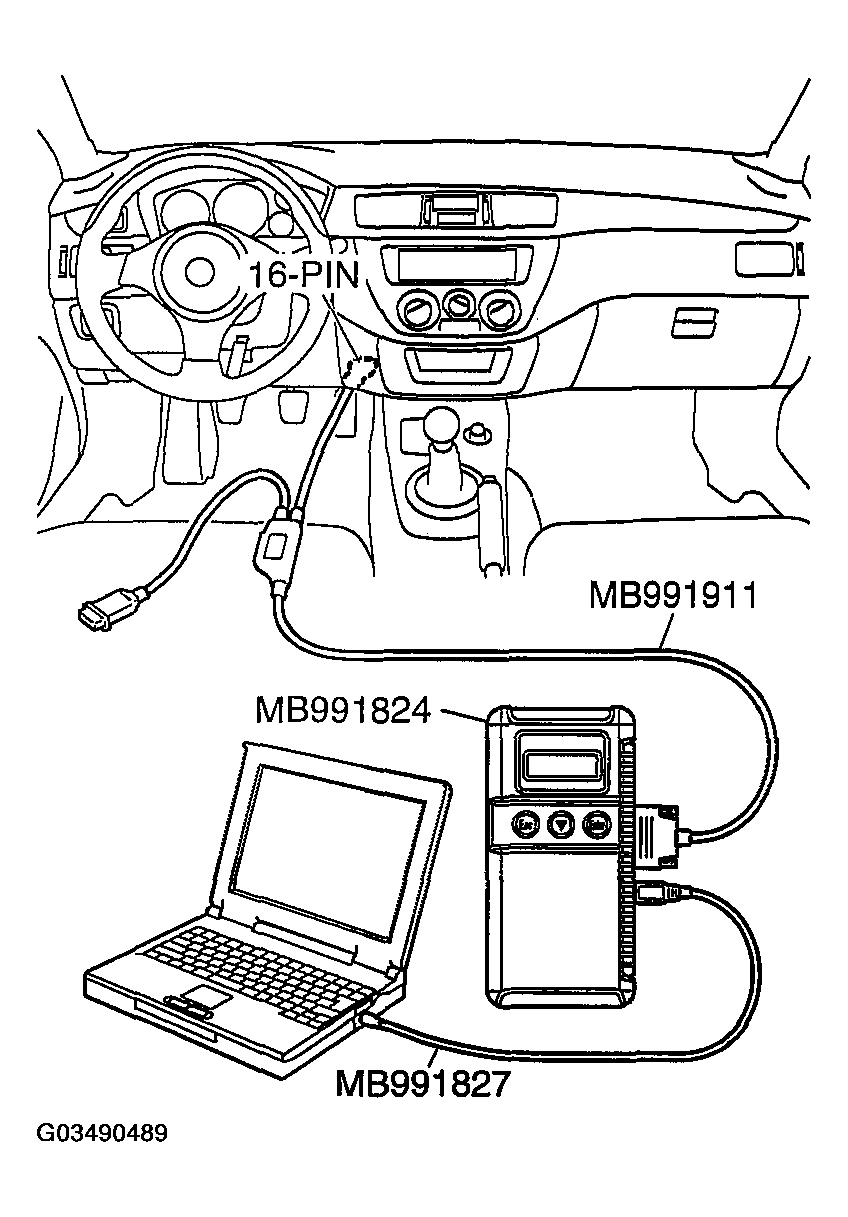

Fig 1: Connecting Special Tool MB991910 To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the steering column cover. Refer to INSTRUMENT PANEL ASSEMBLY .
Disconnect the steering column switch connector.
Connect special tool MB991812 to column switch connector.

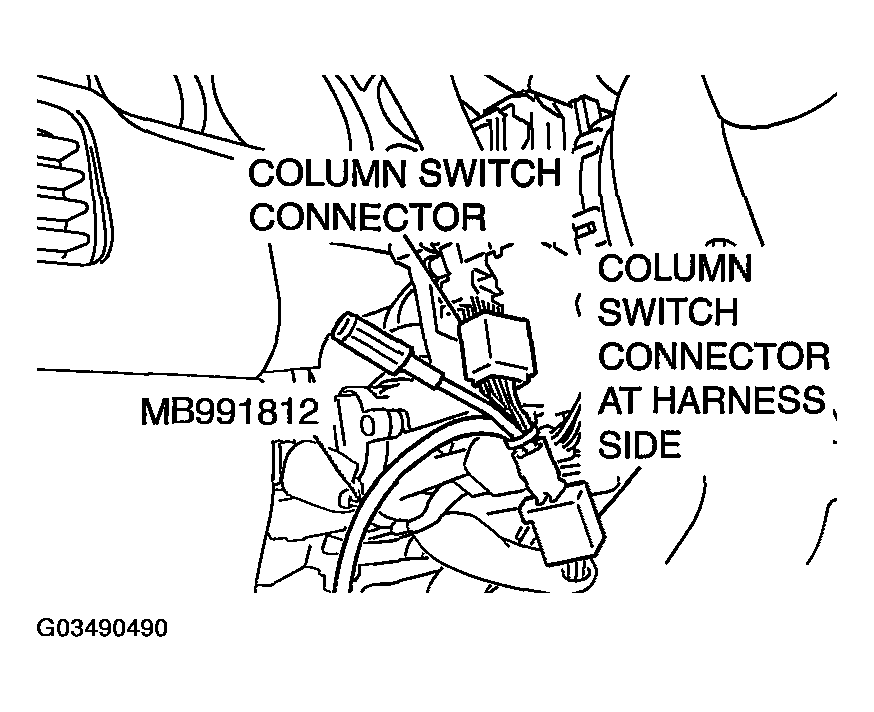

Fig 2: Removing Steering Column Switch Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect special tool MB991812 to special tool MB991806.
Connect the special tool MB991806 to special tool MB991824.
Turn the power switch of special tool MB991824 to the "ON" position.
NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
Start the MUT-III system on the personal computer.

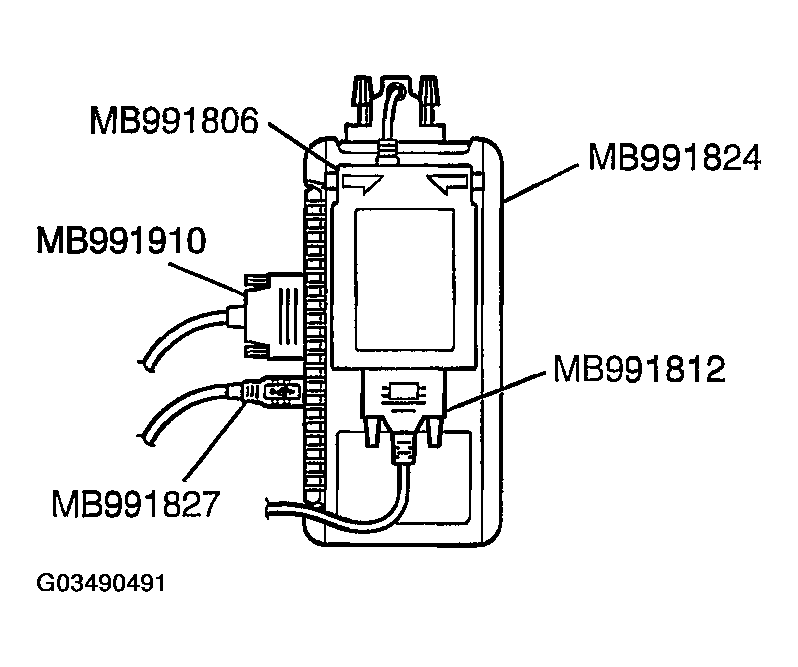

Fig 3: Connecting Special Tool MB991806 To Special Tool MB991824
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
