Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

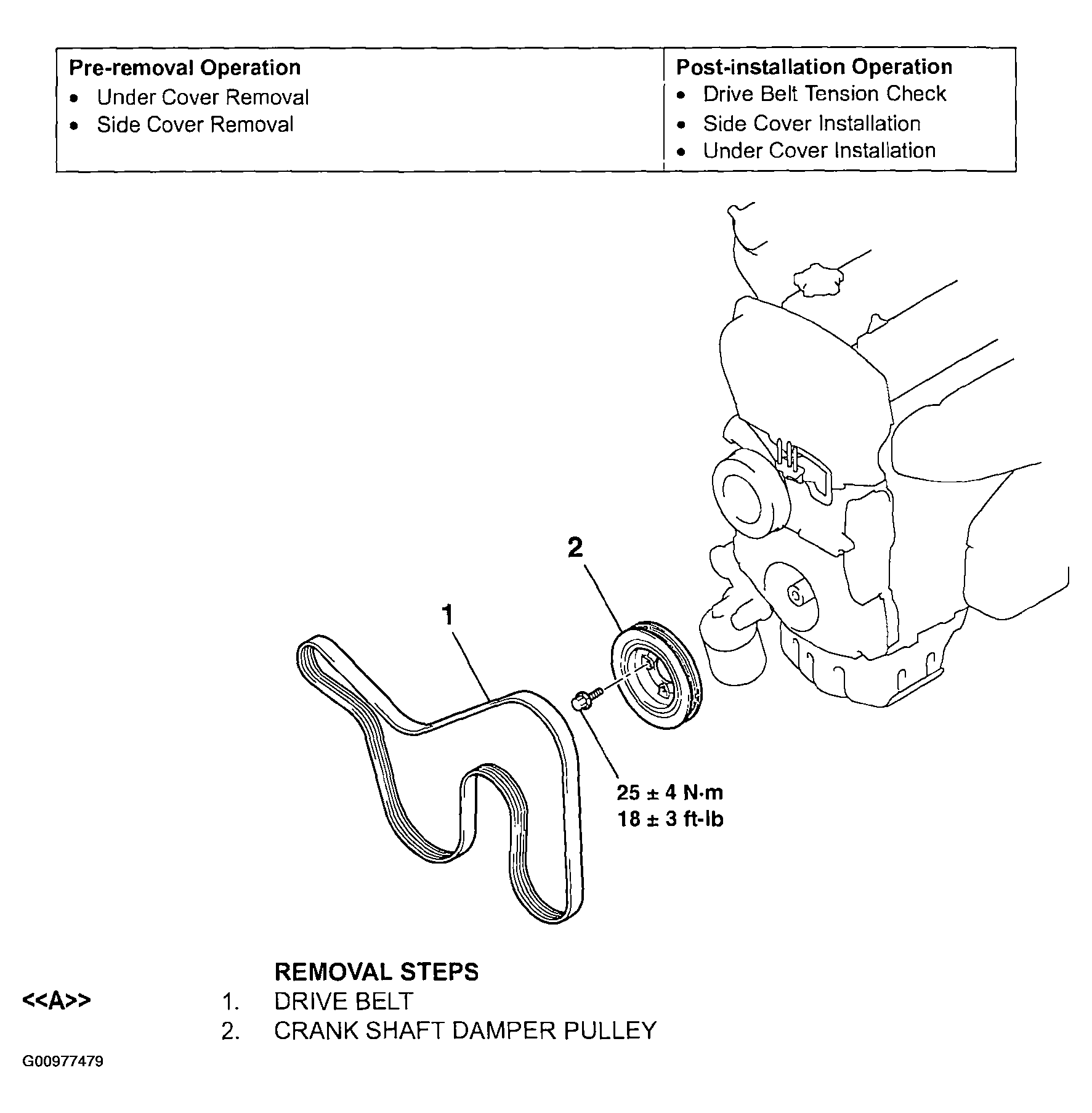

Fig 1: Identifying Drive Belt And Crankshaft Damper Pulley
G00977479Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
