Hub Bolt Replacement

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB990767: End Yoke Holder
MB991618: Hub Bolt Remover

For vehicles with rear disc brakes, remove the caliper assembly, suspend the caliper assembly with a wire and remove the brake disc.
For vehicles with rear drum brake, remove the brake drum.

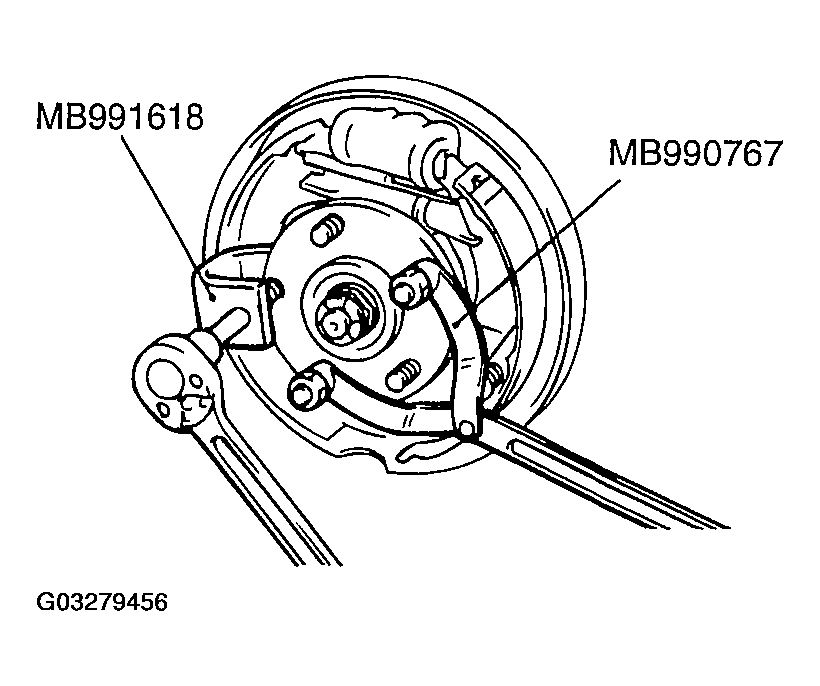

Fig 1: Removing Hub Bolt Using Special Tools MB990767 And MB991618

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Pull the hub bolt out using special tools MB990767 and MB991618.
NOTE: For vehicles with drum brakes, the hub bolts should be removed near the retainer spring installation position in order to maintain enough clearance for removal.

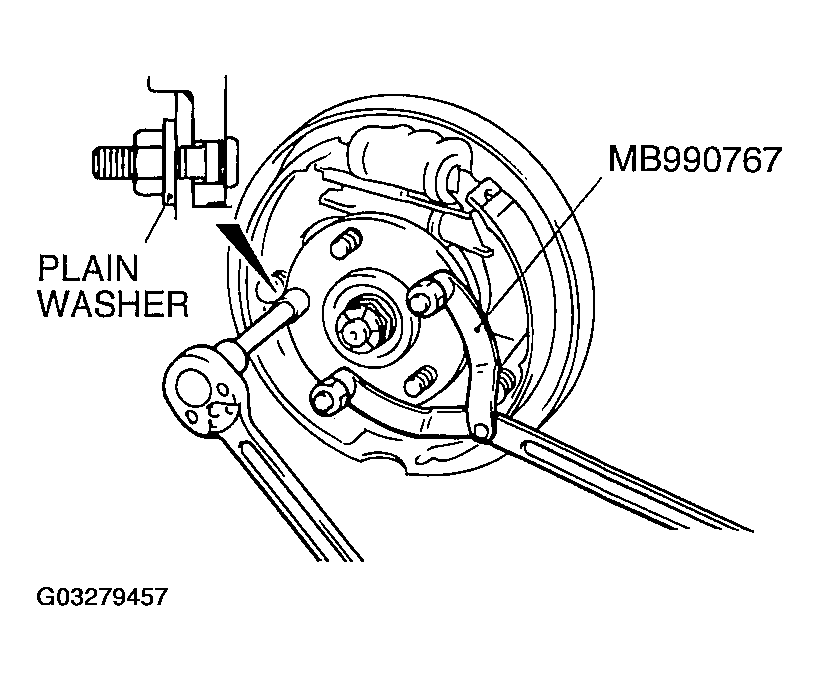

Fig 2: Installing Hub Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Install the plain washer to the new hub bolt, and install the bolt with a nut.
