Removal And Installation < 2.4L Engine >: Notes

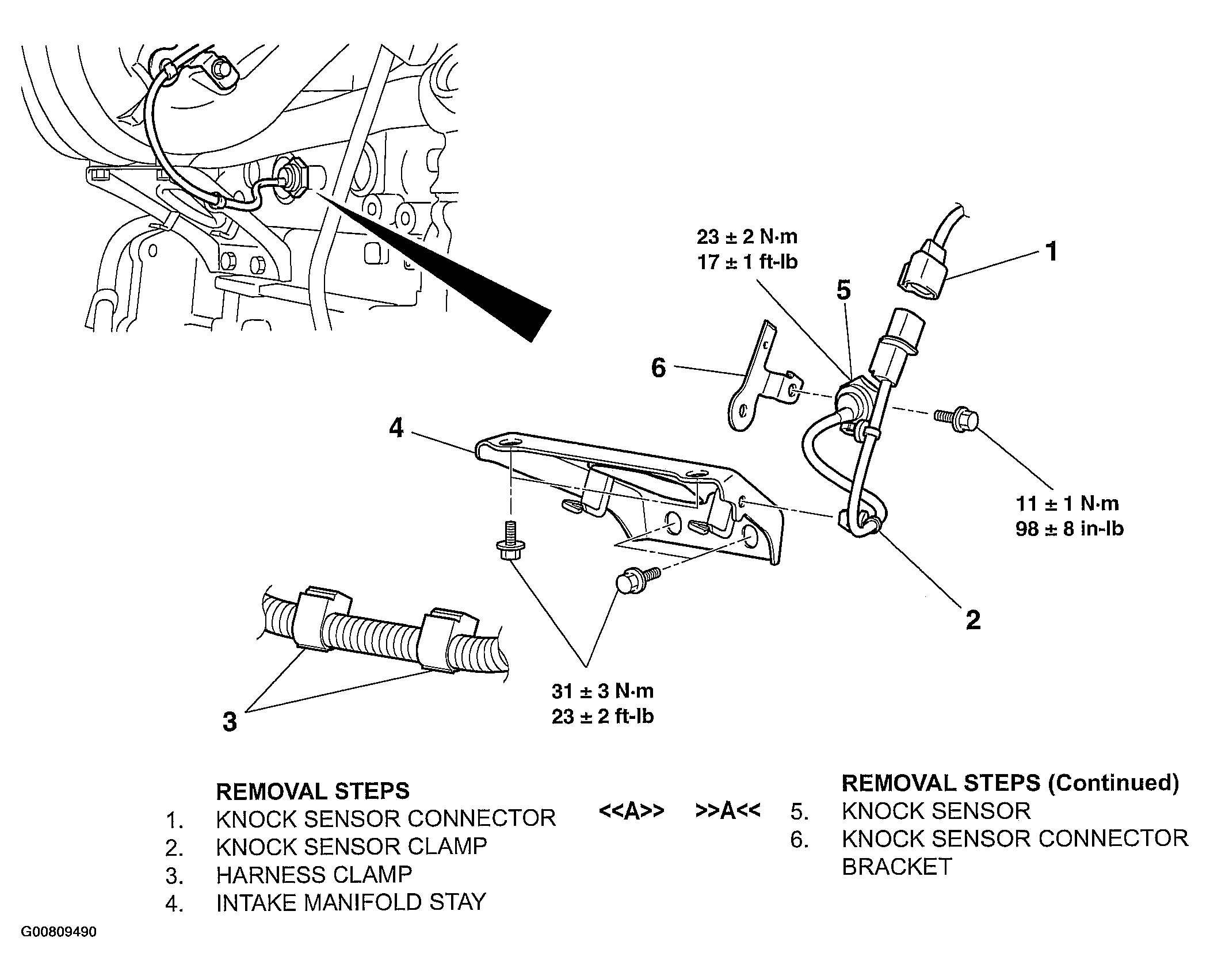

Fig 1: Removing And Installing Knock Sensor (2.4L Engine)
G00809490Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
