Anti-Lock Braking System (Abs) - Except Evolution & SPORTBACK
>>
Special Tools
Special Tools

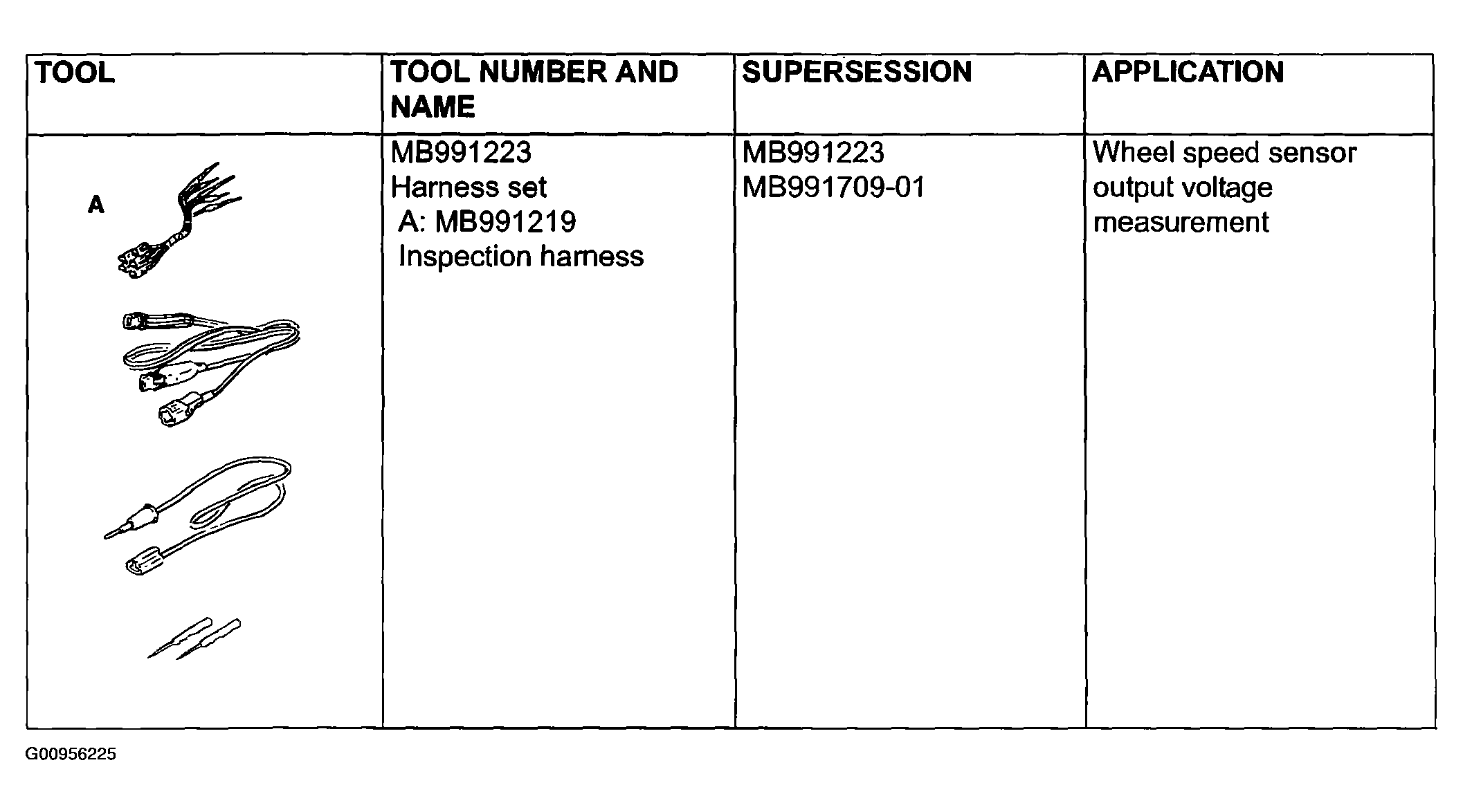

Fig 1: Special Tools (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

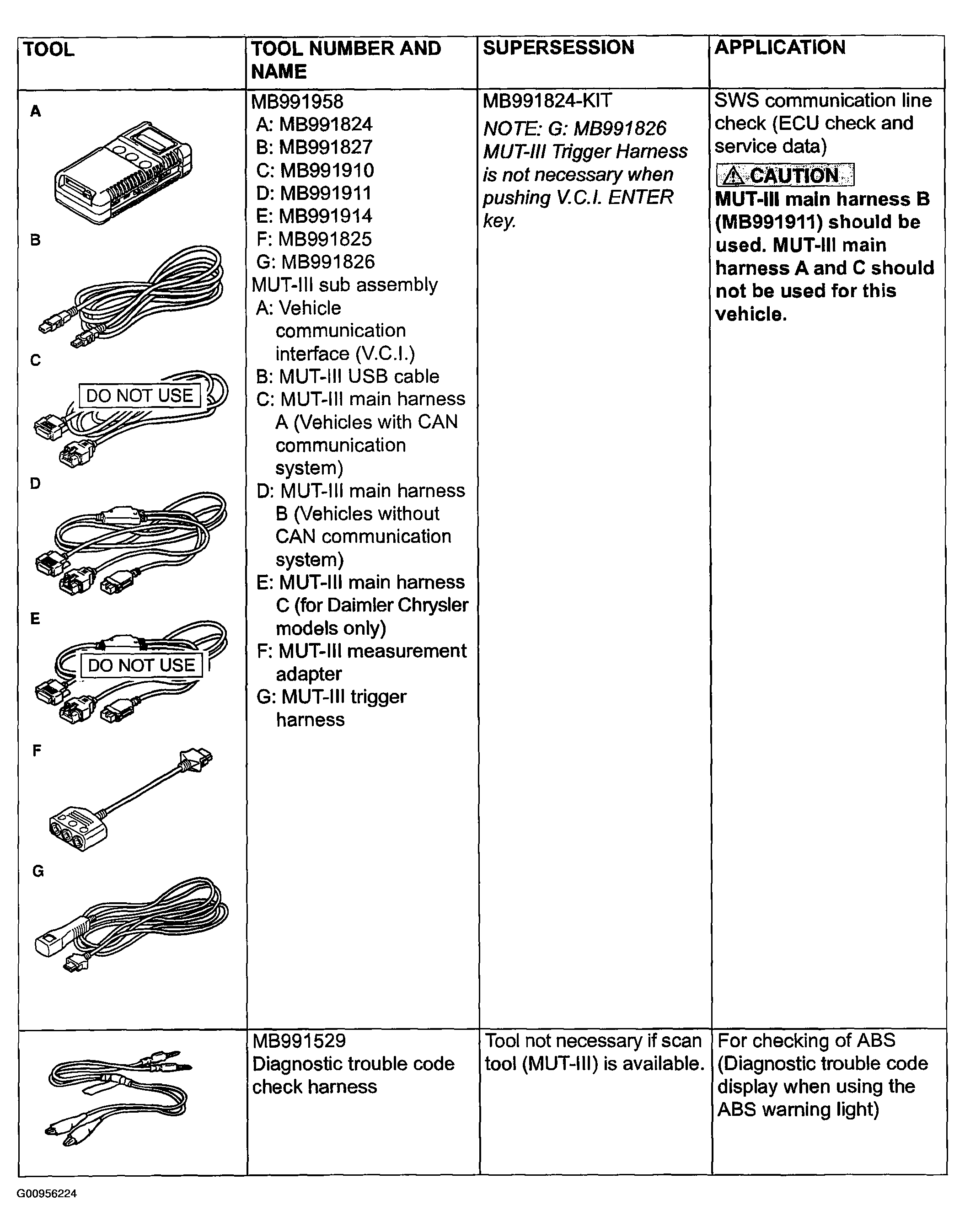

Fig 2: Special Tools (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
