Home >> Mitsubishi >> 2004 >> Lancer ES, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Braking System (Abs) - Except Evolution & SPORTBACK >> On-Vehicle Service >> Abs Warning Light Relay Check

Abs Warning Light Relay Check

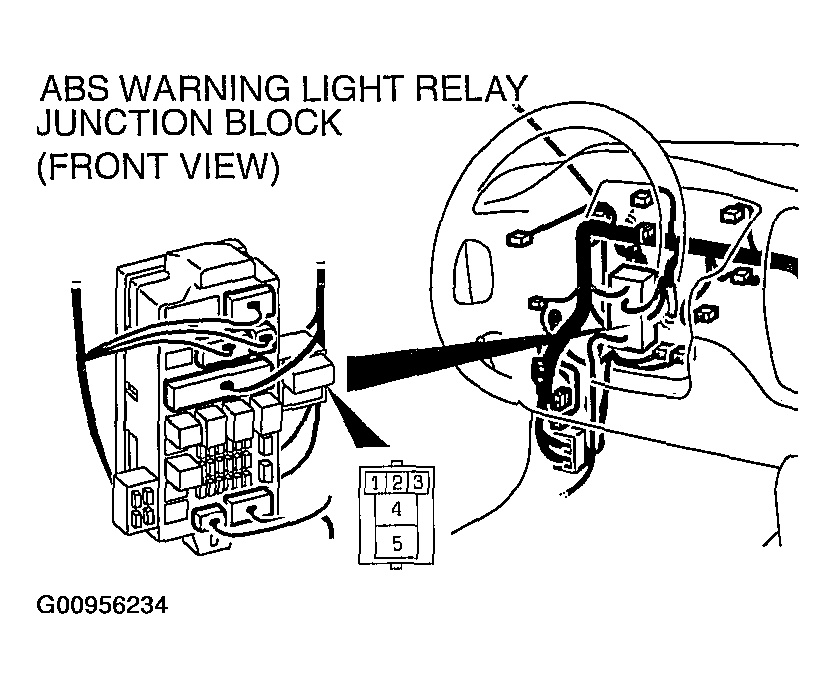

Fig 1: Locating ABS Warning Light Relay
G00956234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

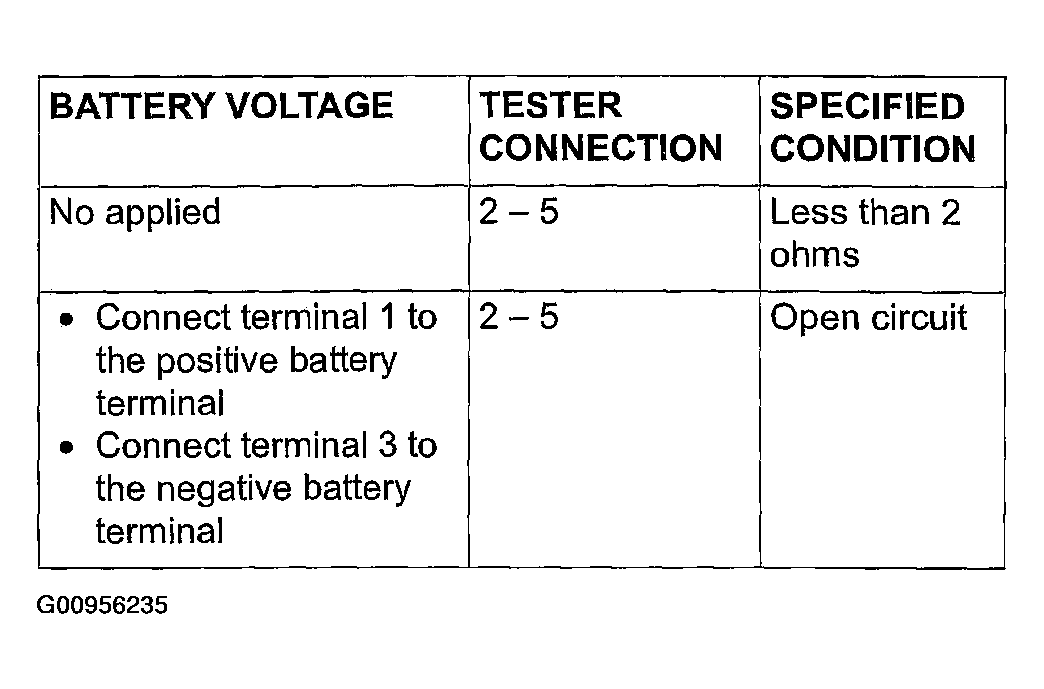

Fig 2: ABS Warning Light Relay Check Chart
G00956235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
