Removal And Installation <2.4L Engine>

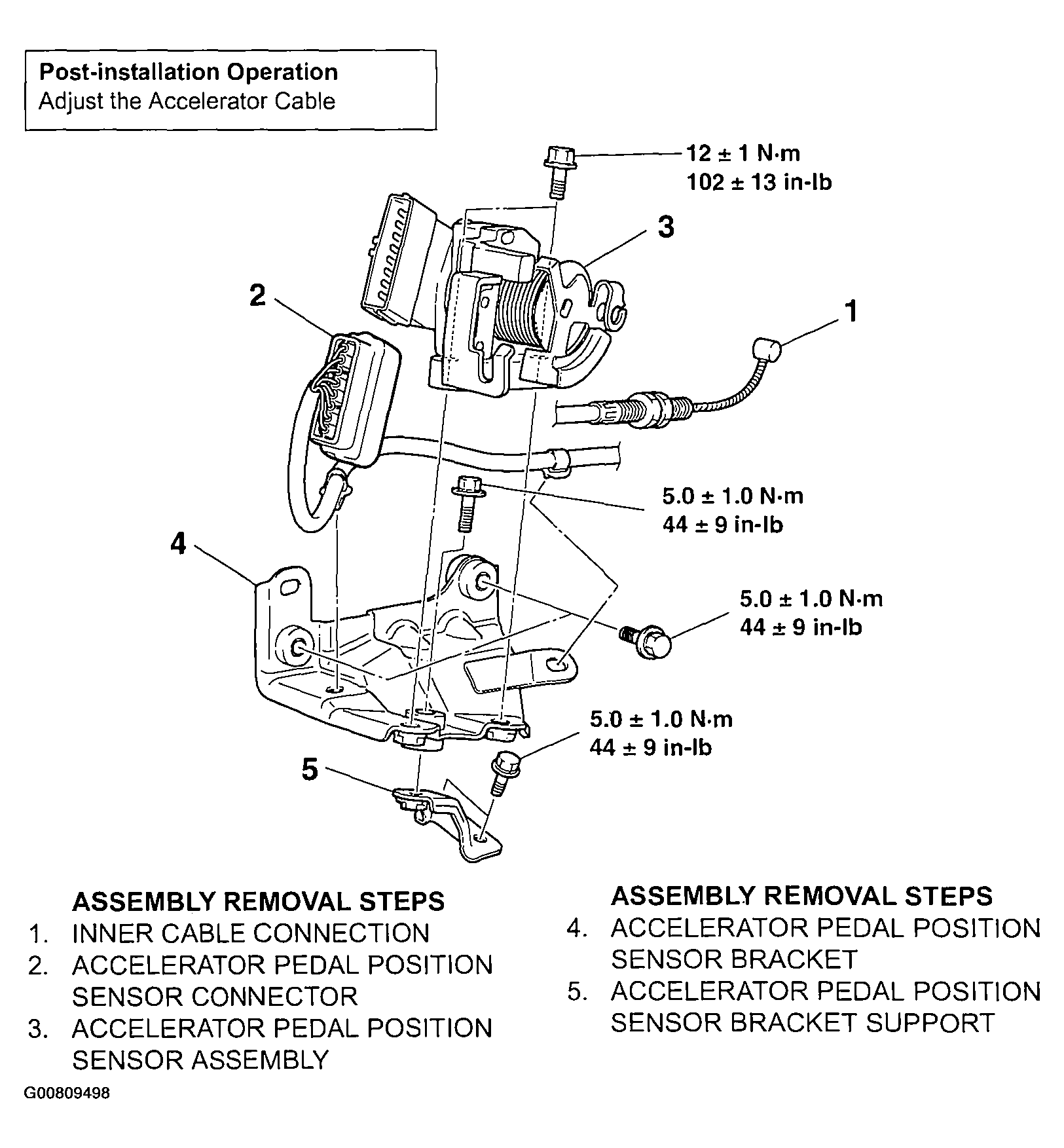

Fig 1: Removing And Installing Accelerator Pedal Position Sensor Components

G00809498

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
