Home >> Mitsubishi >> 2004 >> Galant LS >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

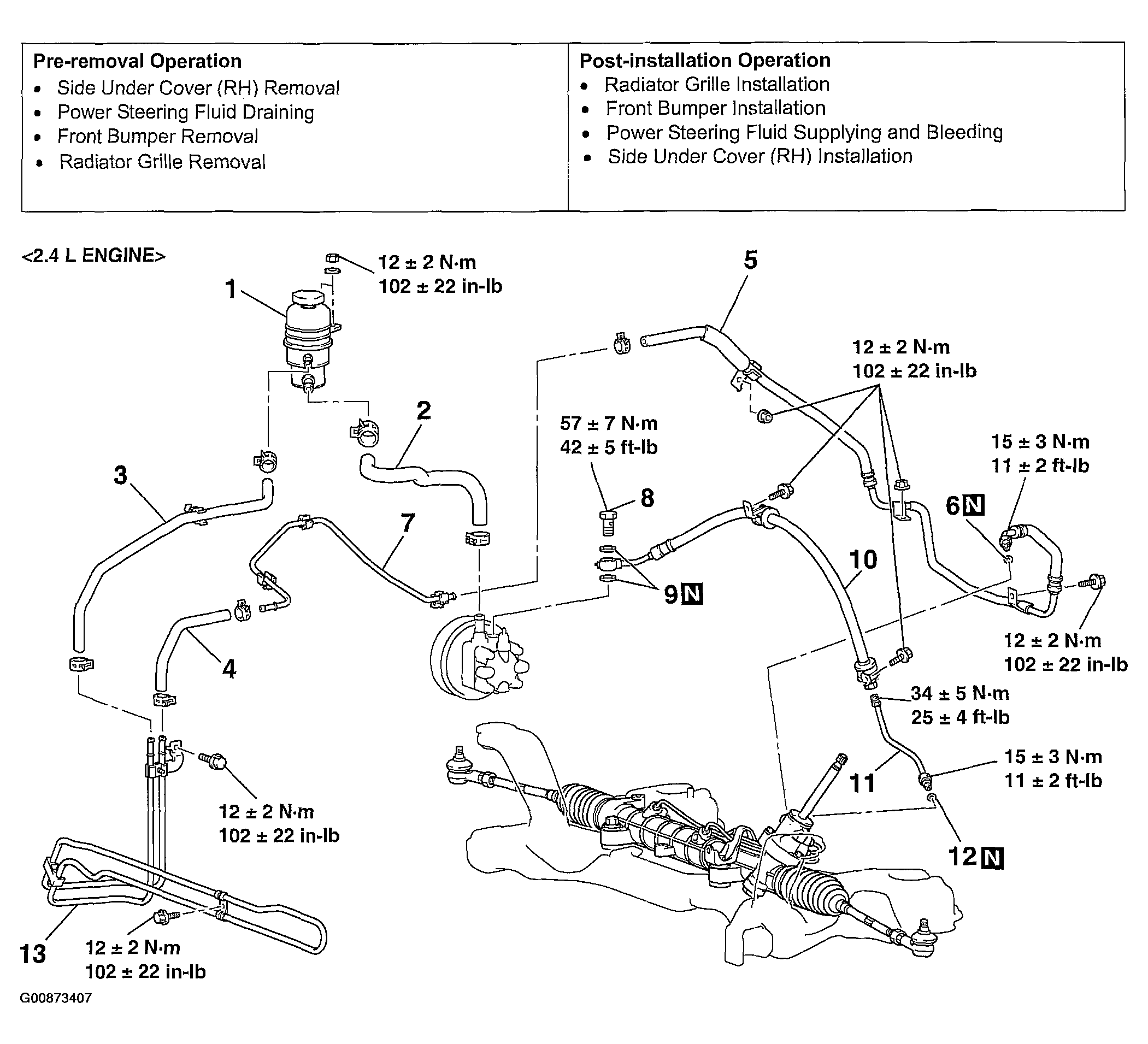

Fig 1: Removing And Installing Power Steering Hoses (2.4L Engine)
G00873407Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

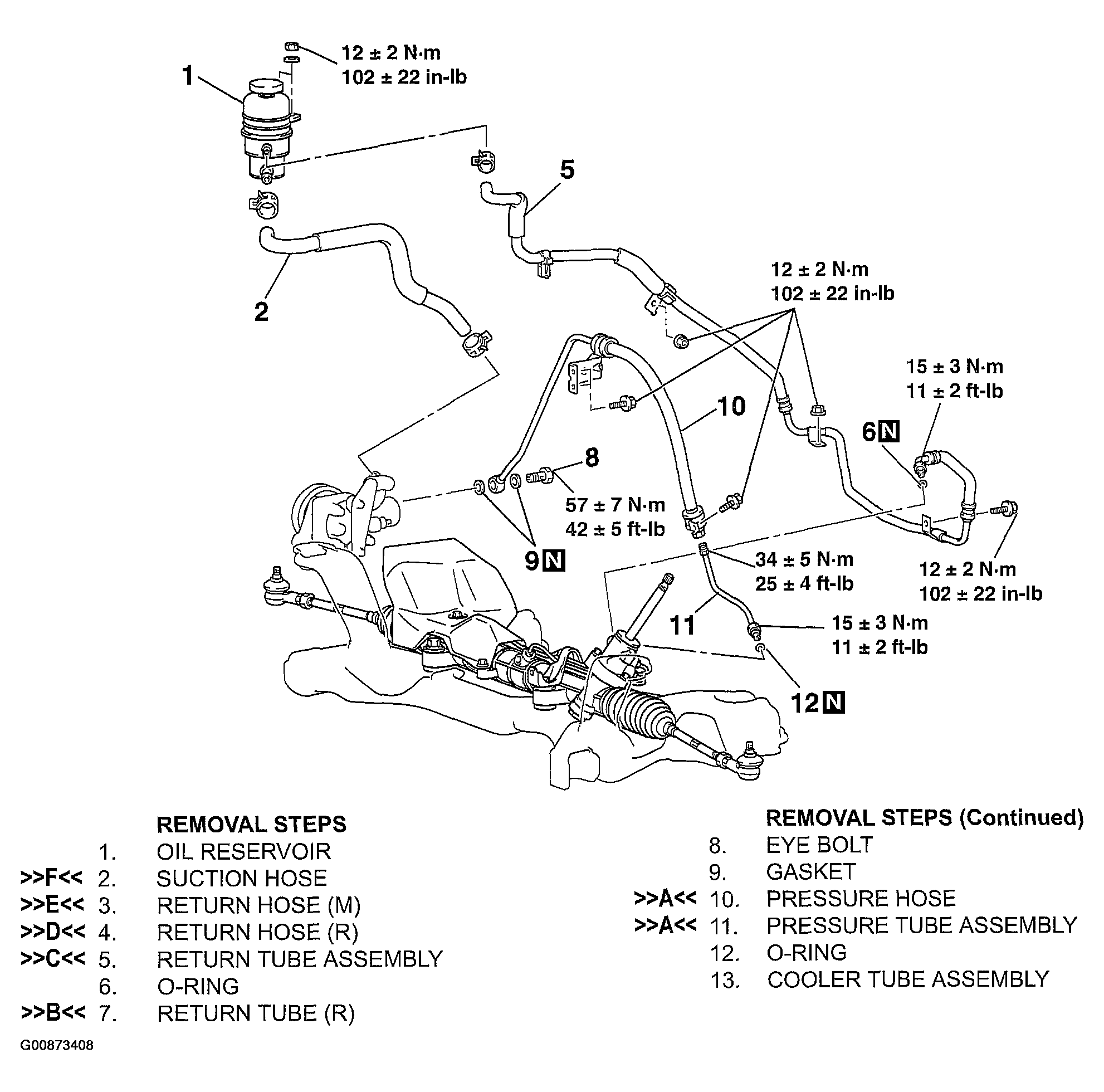

Fig 2: Removing And Installing Power Steering Hoses (3.8L Engine)
G00873408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
