Galant LS
>>
Repair and Diagnosis
>>
Electrical
>>
Starters
>>
Removal And Installation < 2.4L Engine >
>>
Notes
Removal And Installation < 2.4L Engine >: Notes

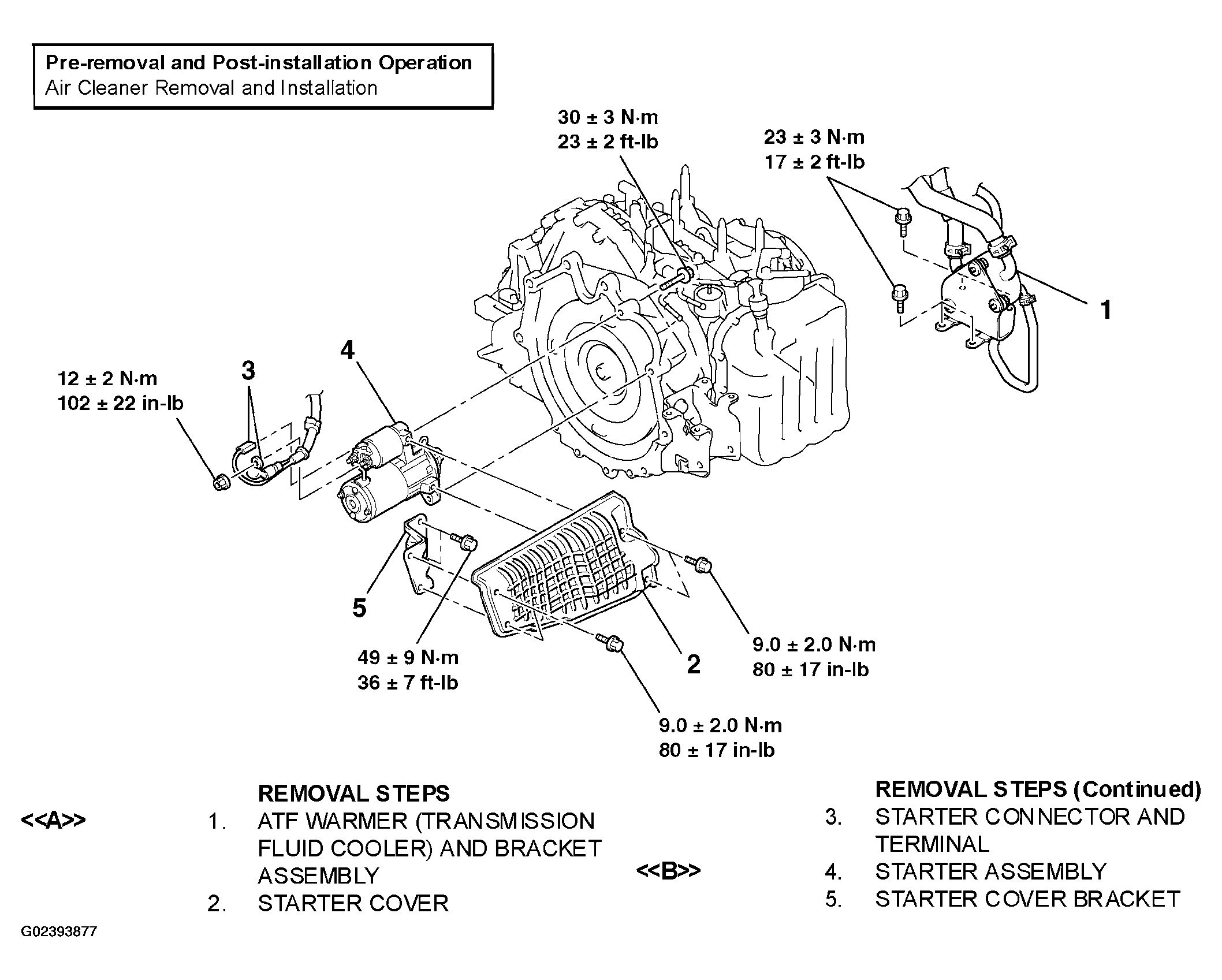

Fig 1: Removing And Installing Starter Motor Assembly (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
