Home >> Mitsubishi >> 2004 >> Galant LS >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Auto-Cruise Control System >> Auto-Cruise Control >> Removal And Installation

Removal And Installation

WARNING: Before removal of the air bag module, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

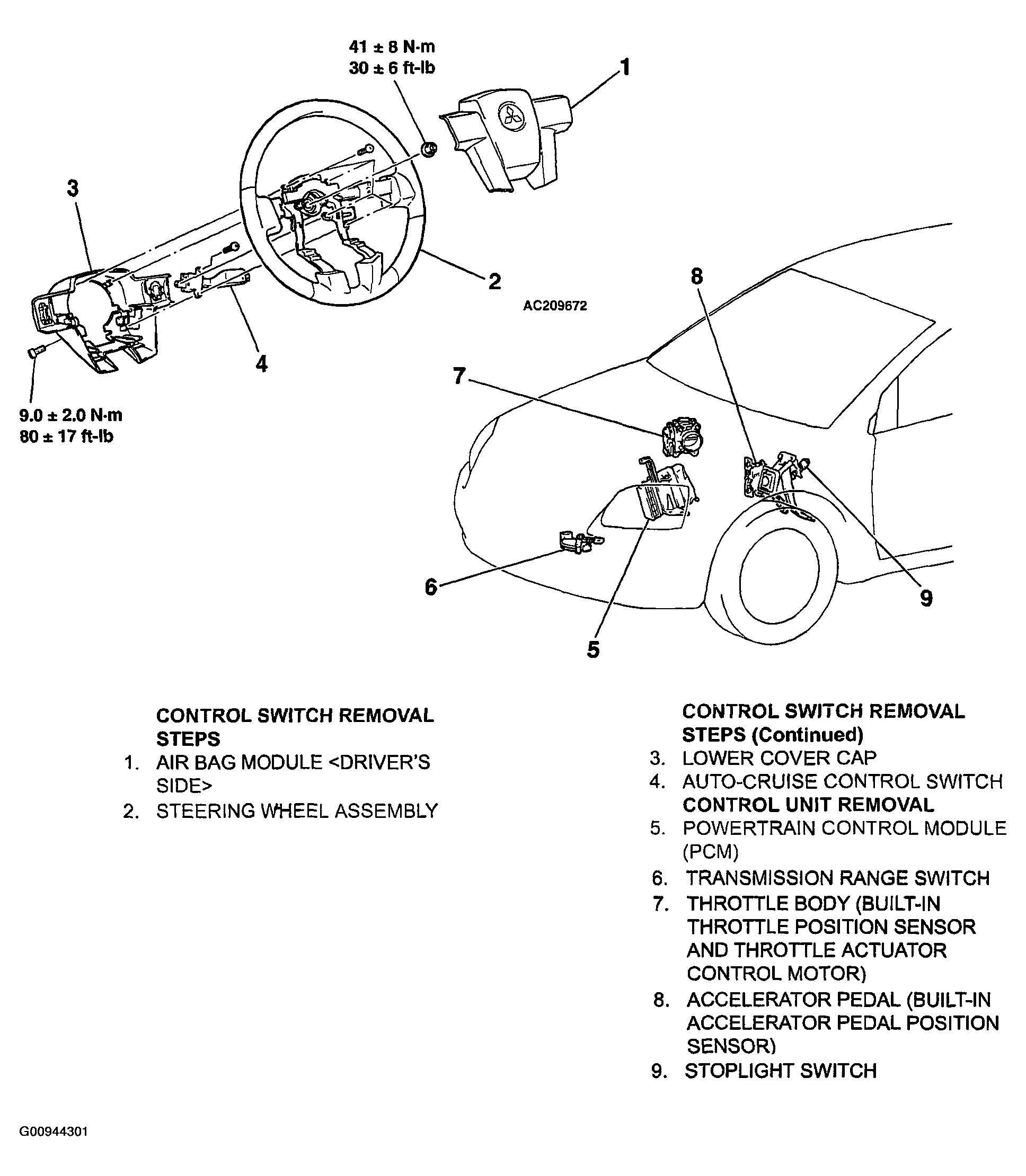

Fig 1: Identifying Components Of Auto-Cruise Control
G00944301Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
