Transmission Range Switch Check

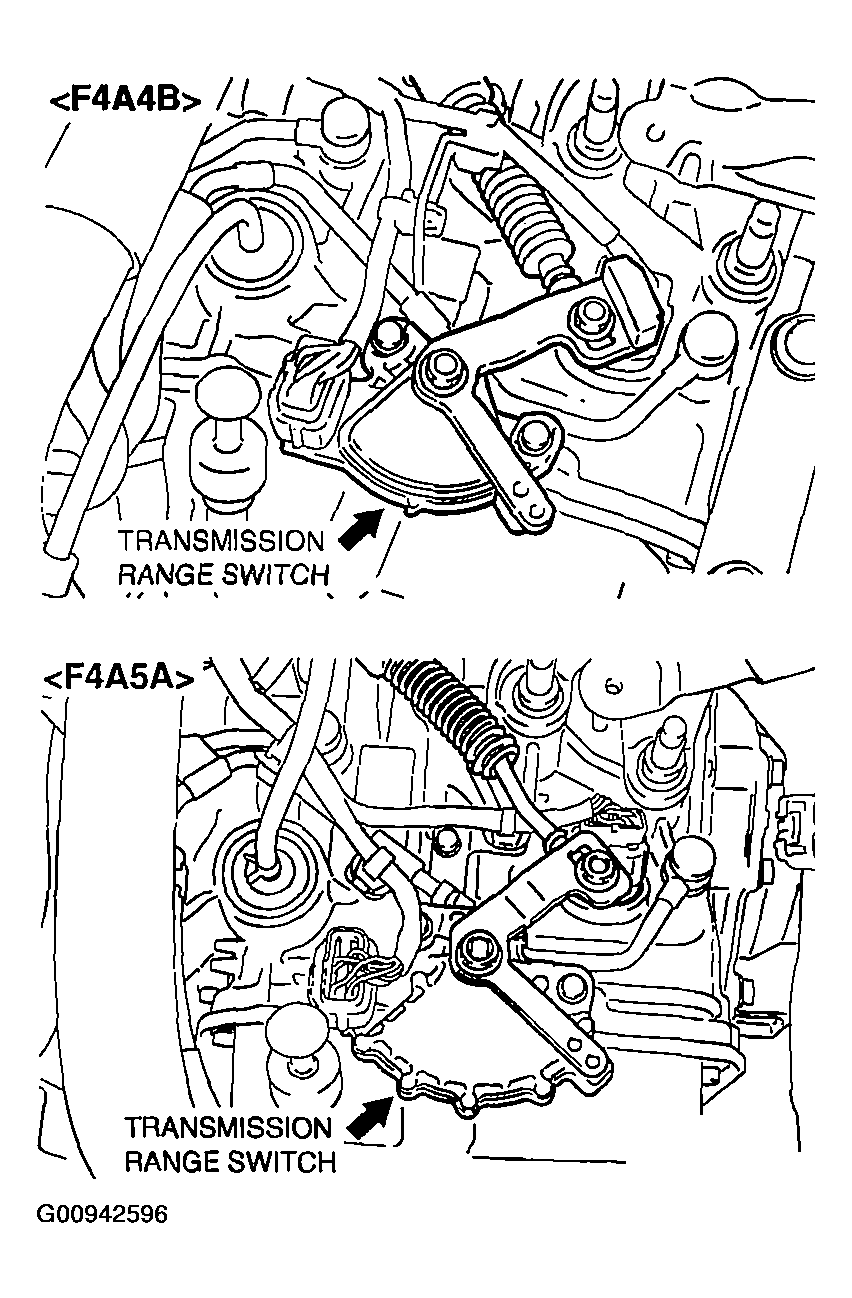

Fig 1: Identifying Transmission Range Switch
G00942596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

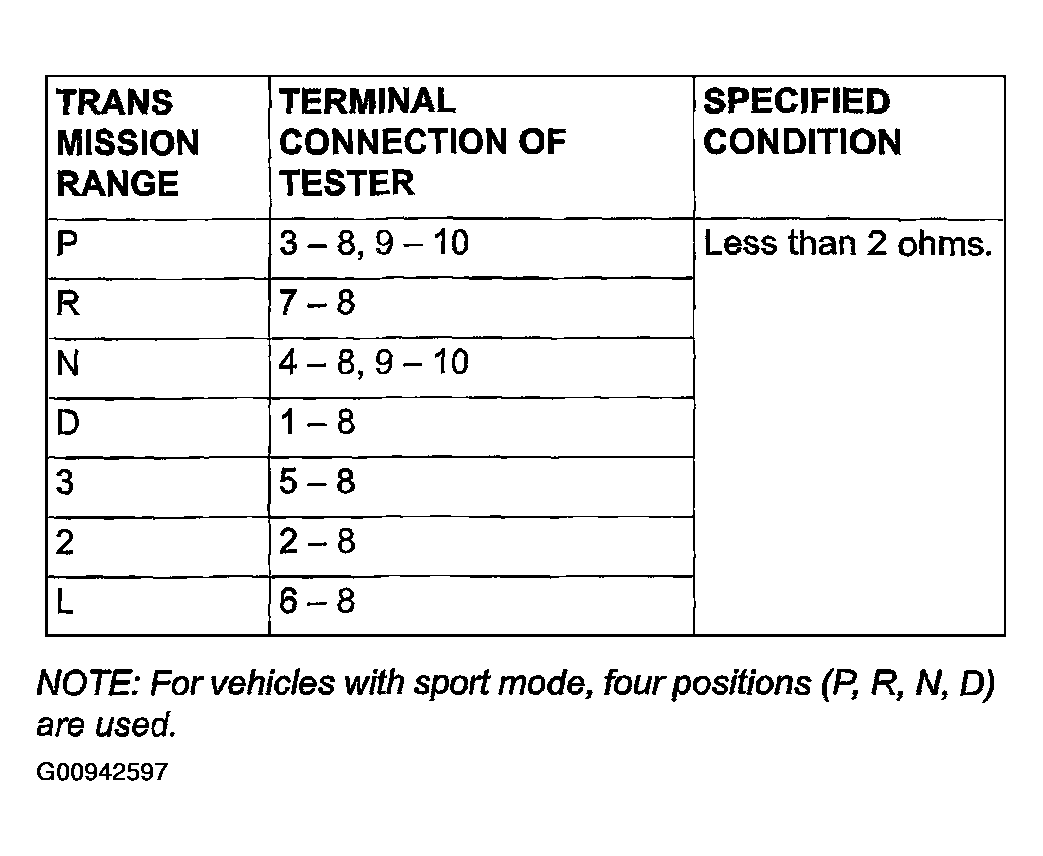

Fig 2: Transmission Range Switch Check Table
G00942597Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

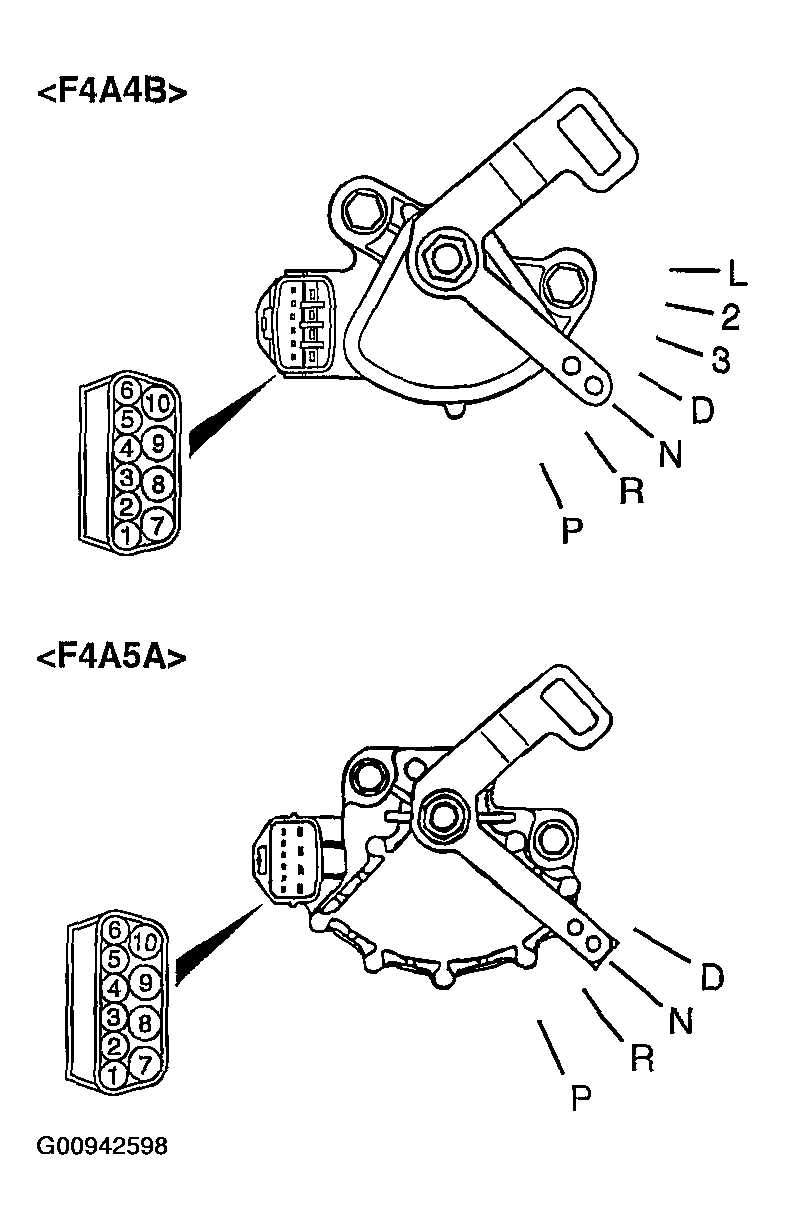

Fig 3: Identifying Transmission Range Switch Terminals
G00942598Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
