Function Element Table

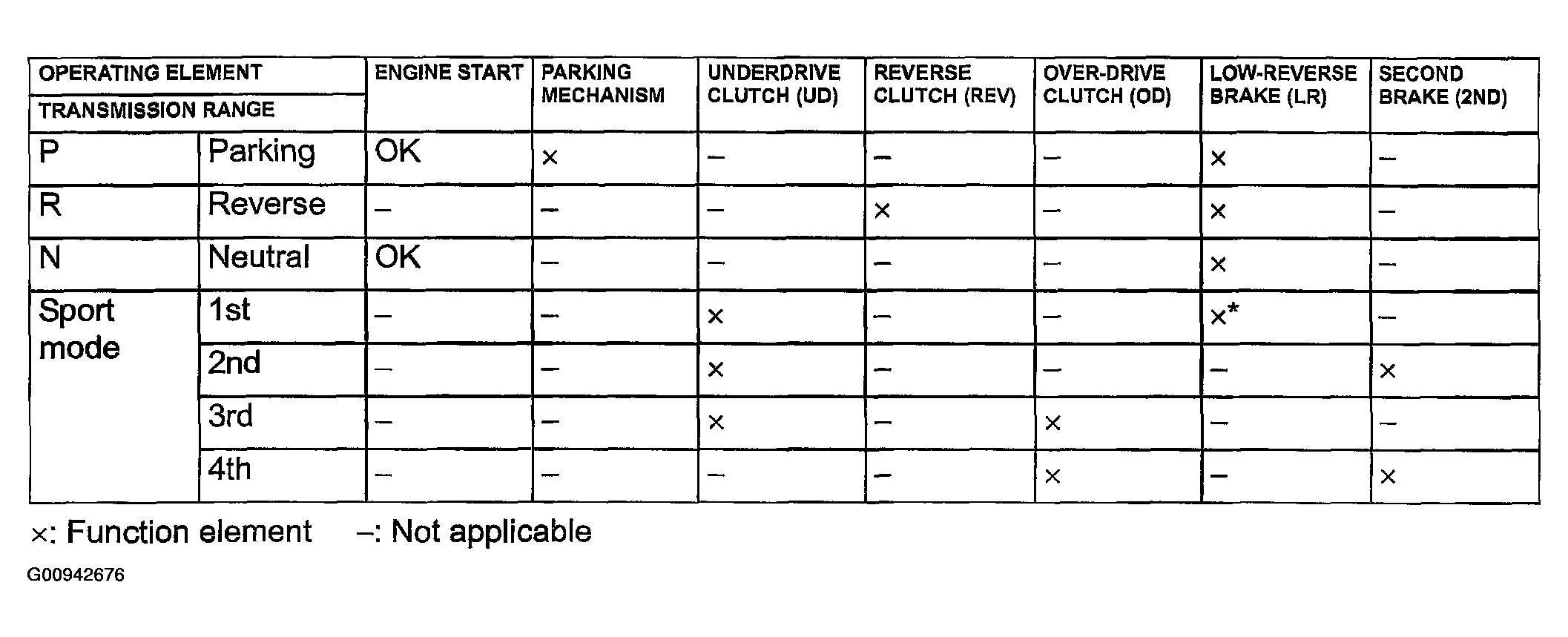

Fig 1: Function Element Table
G00942676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
