Automatic Trans: Diagnosis: General Description: Notes

F4A4B and F4A5A models have been established.

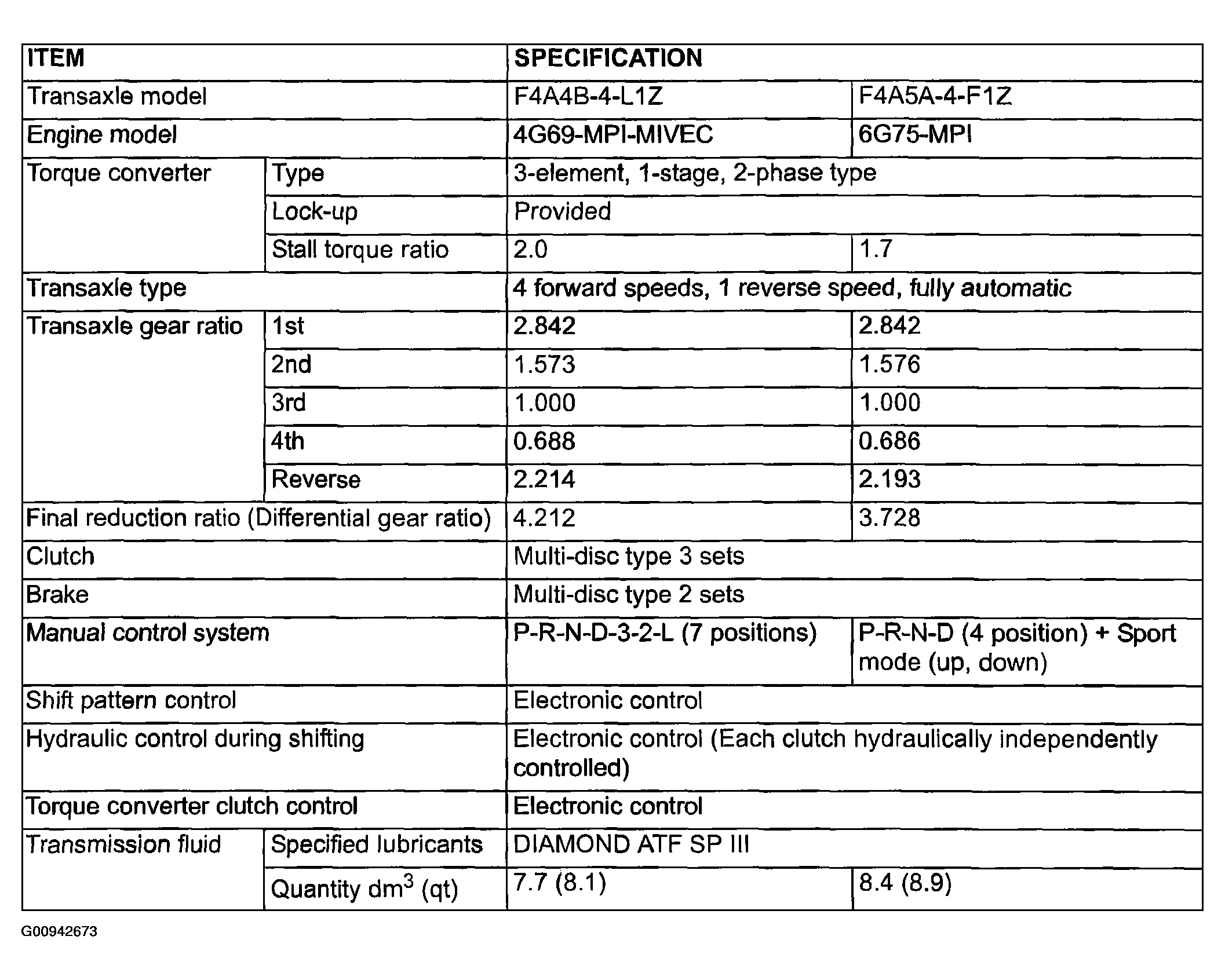

Fig 1: General Description

G00942673

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
