Diagnostic Trouble Code Chart
CAUTION:
During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.
NOTE:
The MFI diagnostic trouble codes are the codes which are set when item "MFI" is selected on scan tool MB991958 (MUT-III sub assembly). However, the codes above indicate failure in the automatic transmission.

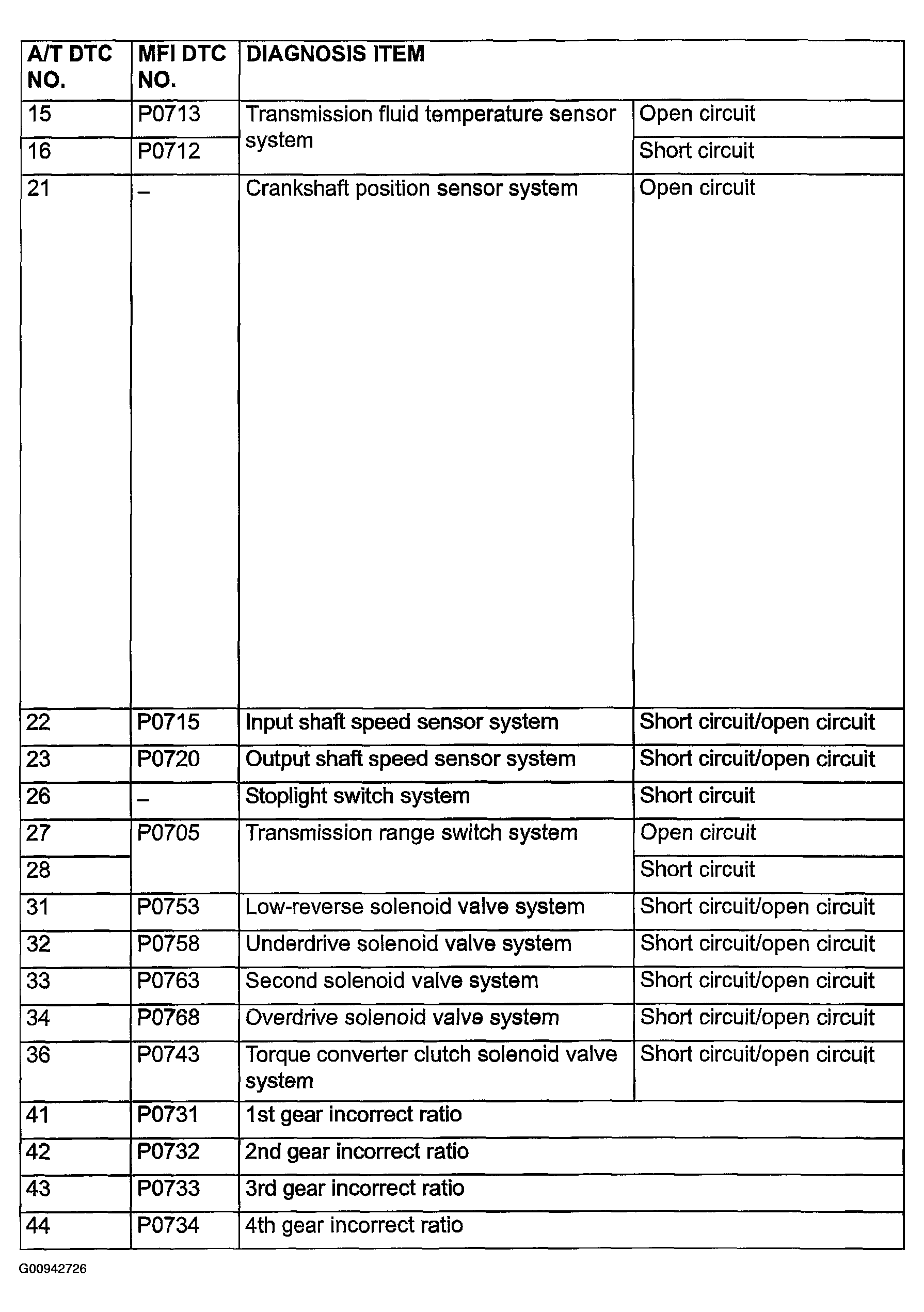

DTC INDEX
| DTC | Description |
|---|---|
| DTC 15 (P0713) | Transmission Fluid Temperature Sensor System (Open Circuit) |
| DTC 16 (P0712) | Transmission Fluid Temperature Sensor System (Short Circuit) |
| DTC 22 (P0715) | Input Shaft Speed Sensor System |
| DTC 23 (P0720) | Output Shaft Speed Sensor System |
| DTC 26 | Stoplight Switch System |
| DTC 27 (P0705) | Transmission Range Switch System (Open Circuit) |
| DTC 28 (P0705) | Transmission Range Switch System (Short Circuit) |
| DTC 31 (P0753) | Low-Reverse Solenoid Valve System |
| DTC 32 (P0758) | Underdrive Solenoid Valve System |
| DTC 33 (P0763) | Second Solenoid Valve System |
| DTC 34 (P0768) | Overdrive Solenoid Valve System |
| DTC 36 (P0743) | Torque Converter Clutch Solenoid Valve System |

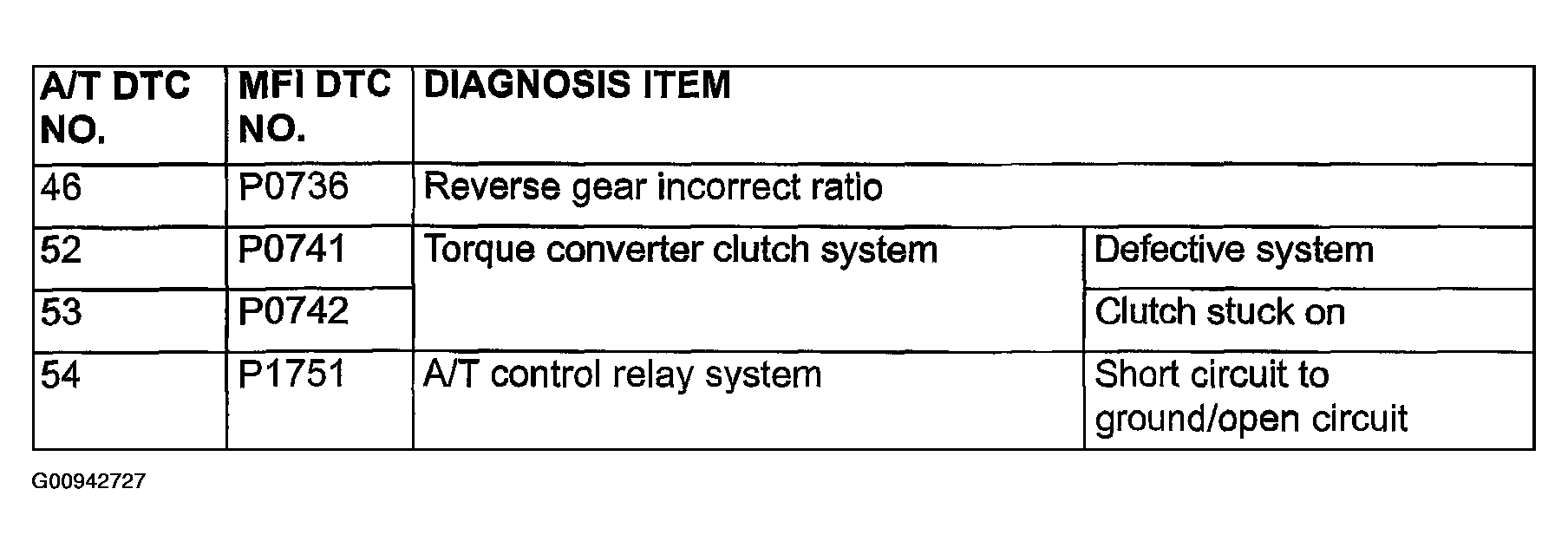

| DTC 41 (P0731) | 1st Gear Incorrect Ratio, DTC 42 (P0732): 2nd Gear Incorrect Ratio, DTC 43 (P0733): 3rd Gear Incorrect Ratio, DTC 44 (P0734): 4th Gear Incorrect Ratio, DTC 46 (P0736): Reverse Gear Incorrect Ratio |
| DTC 52 (P0741) | Torque Converter Clutch System |
| DTC 53 (P0742) | Torque Converter Clutch is Stuck On |
| DTC 54 (P1751) | A/T Control Relay System |
