Camshaft Position Sensor
>>
Removal And Installation < 3.8L Engine>
Removal And Installation < 3.8L Engine>

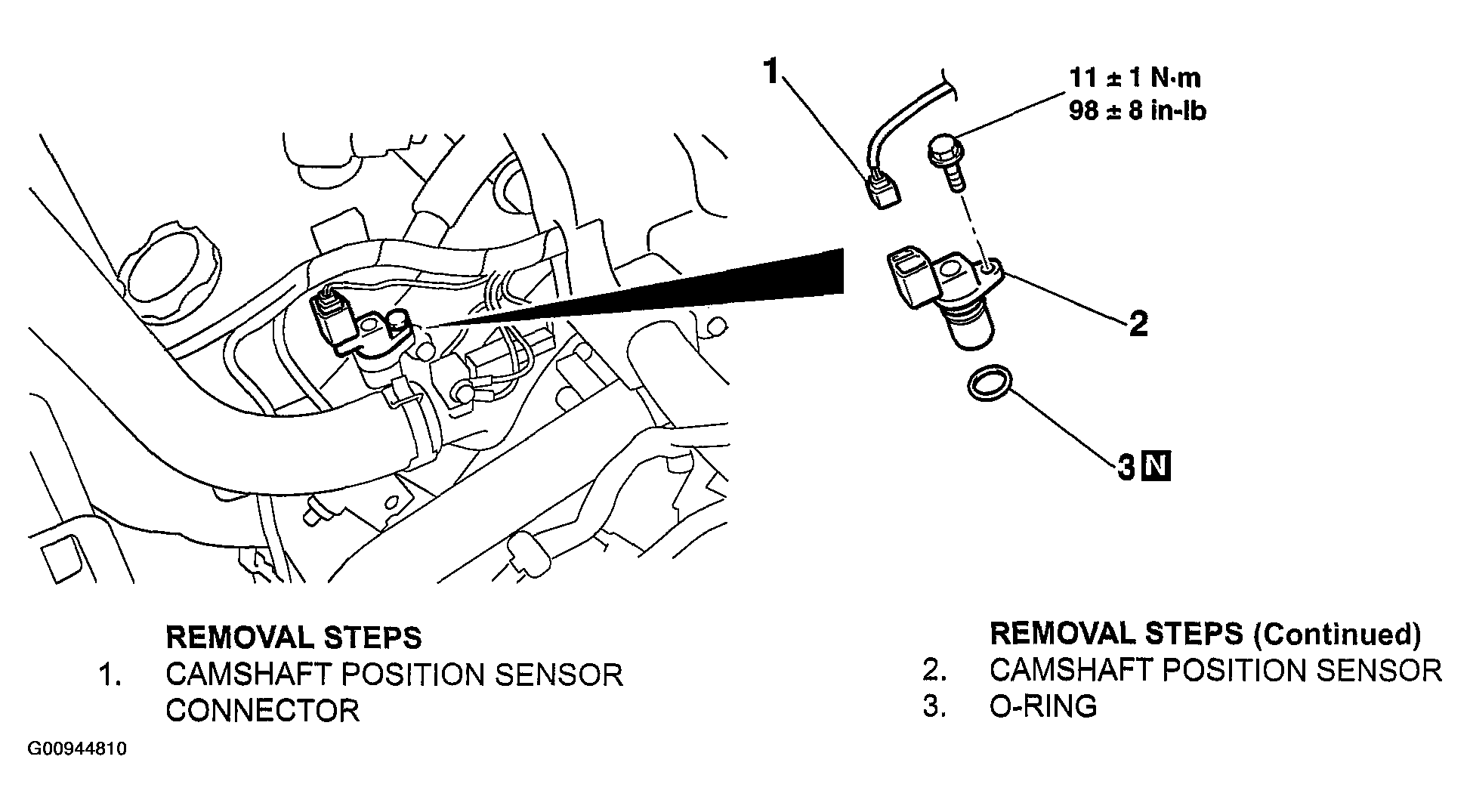

Fig 1: Removing And Installing Camshaft Position Sensor (3.8L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
